Technical specifications

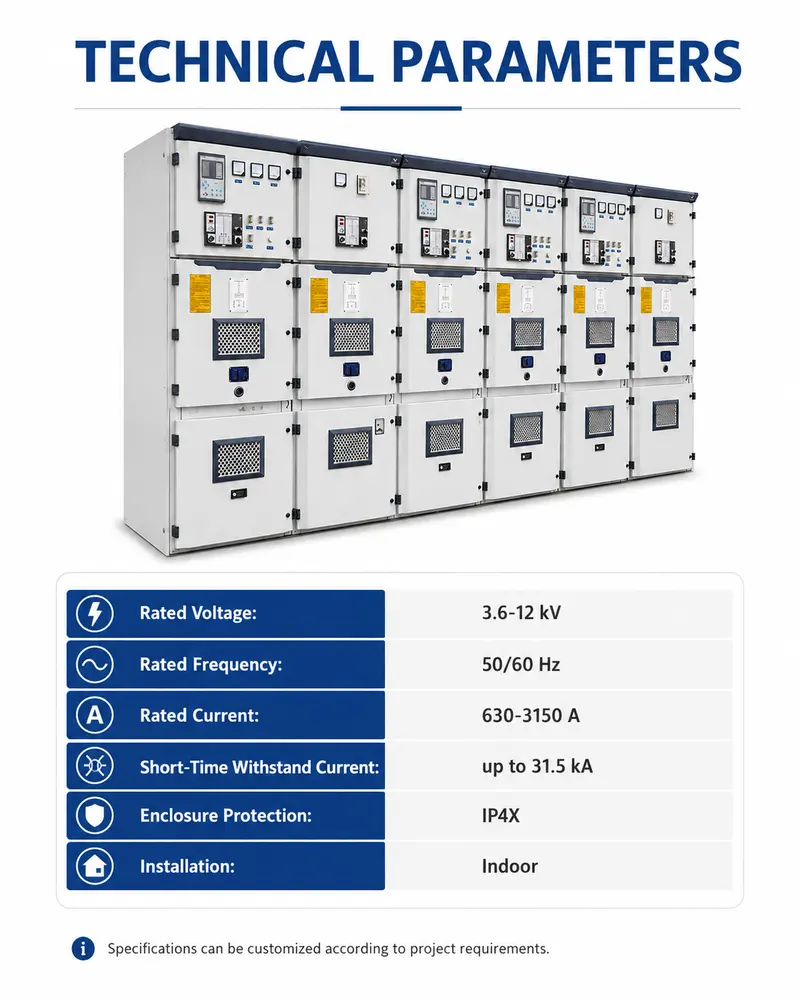

| Parameter | Value |
|---|---|
| Product Type | Indoor Armored Withdrawable Metal-Clad Switchgear (KYN28A-12) |
| Rated Voltage | 12 kV |
| Rated Current | 4000 A |
| Frequency | 50 / 60 Hz |
| Protection Level | IP30 / IP32 / IP40 / IP65 / IP66 |
| Material | Galvanized Steel |
| Application | Electric Power Transmission, Power Distribution |
| Certification | ISO9001, Test Report |
Specifications are based on the standard configuration. Final ratings, dimensions, materials and packaging are confirmed on the approved drawing and order confirmation.
Features and construction

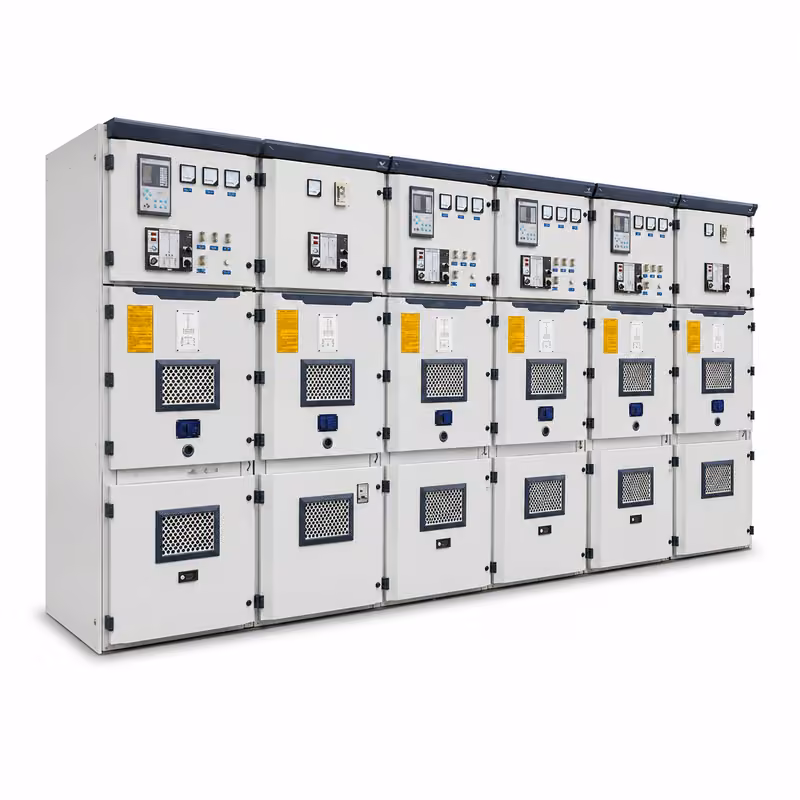

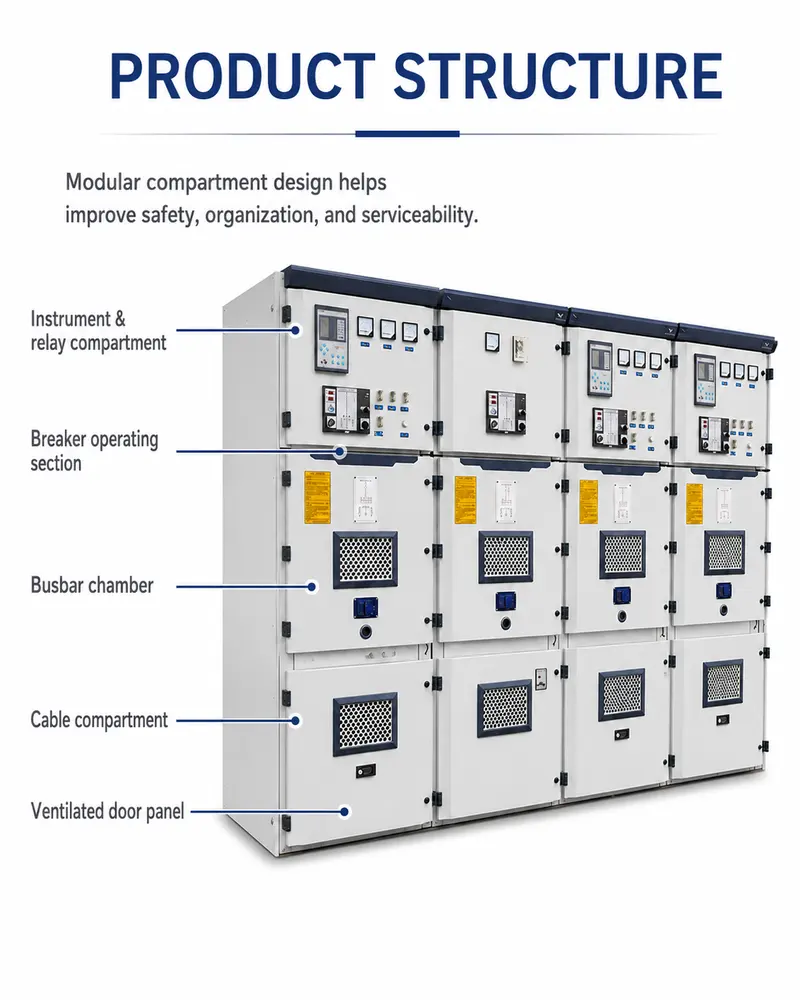

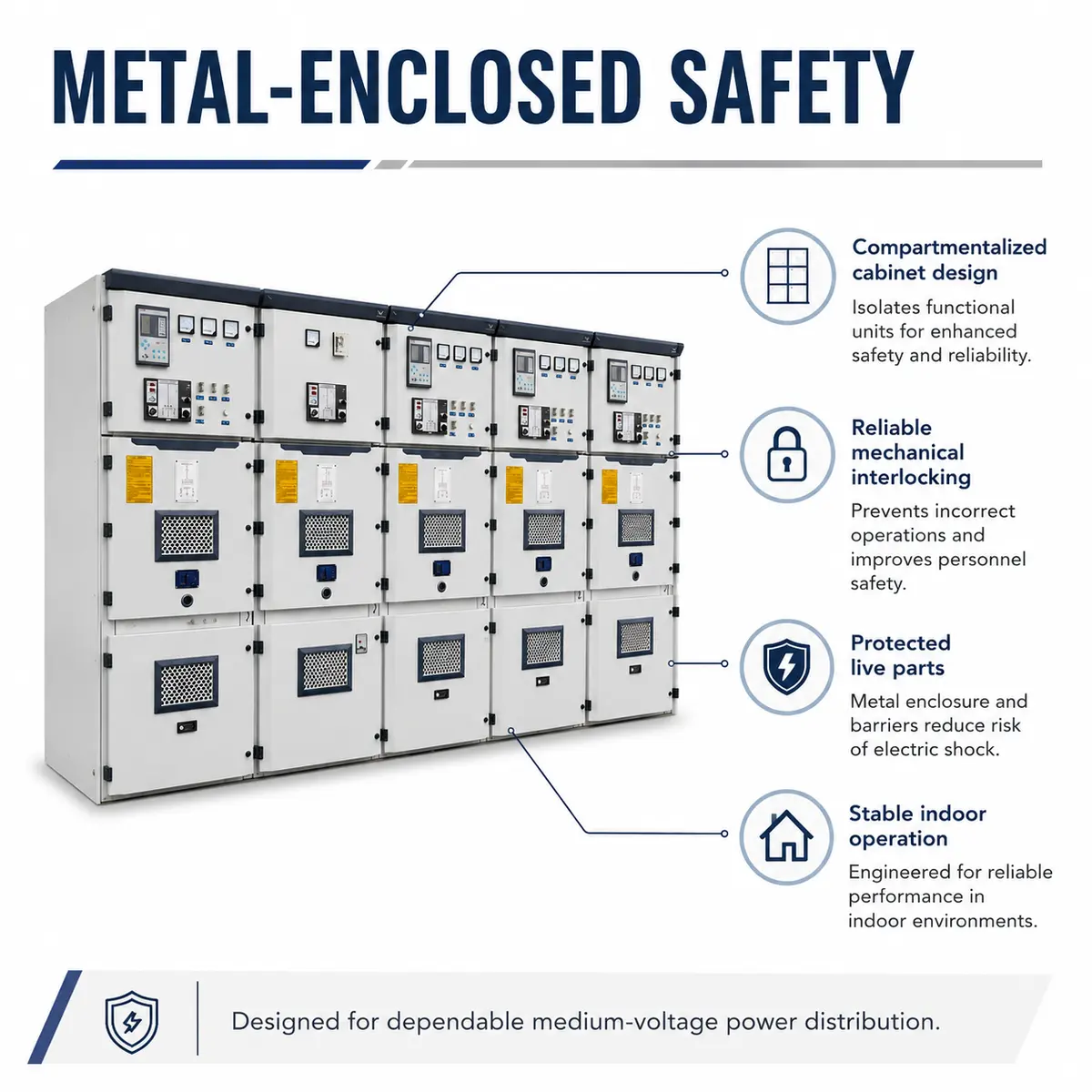

- Vertical metal-clad cubicles with segregated compartments
- Top relay/instrument compartment with digital meters and indicators
- Middle circuit-breaker truck compartment with ventilated mesh window
- Lower cable compartment with ventilated mesh door
- Withdrawable truck design for safe isolation and maintenance
Typical applications
Ideal for indoor high-voltage distribution rooms, substations, power transmission systems, and industrial power supply at 12kV.
Customisation options
Protection level (IP30–IP66), cabinet configuration, and circuit scheme can be tailored to project requirements.
Ordering information
Please confirm rated voltage, rated current, protection level, and circuit configuration when ordering.
Specifications are based on the supplied product data. Final dimensions, materials, colors, and packaging are subject to the confirmed sample and order confirmation.
