Technical specifications
| Parameter | Value |
|---|---|

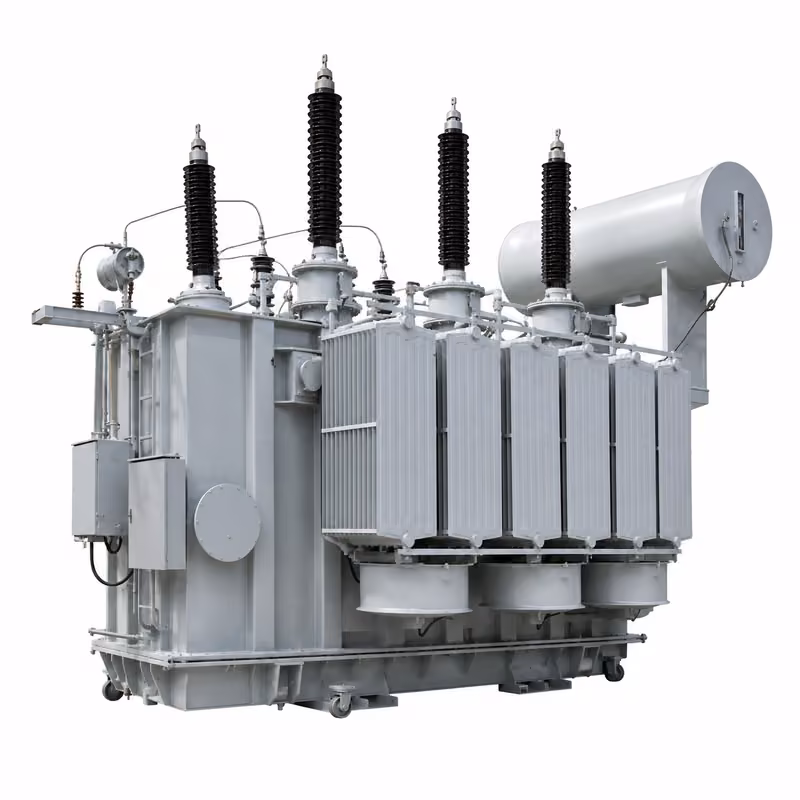

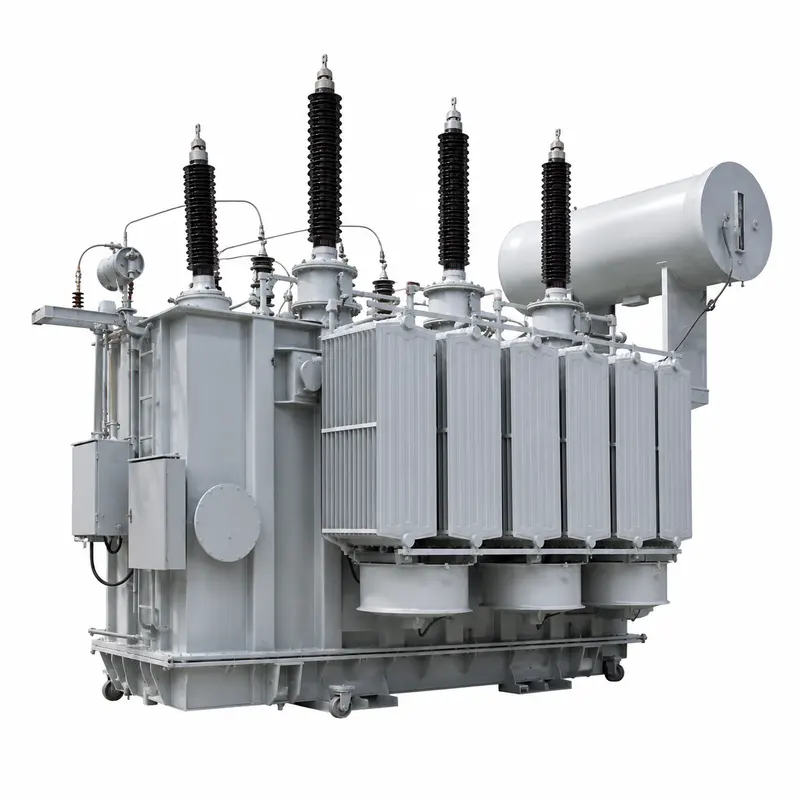

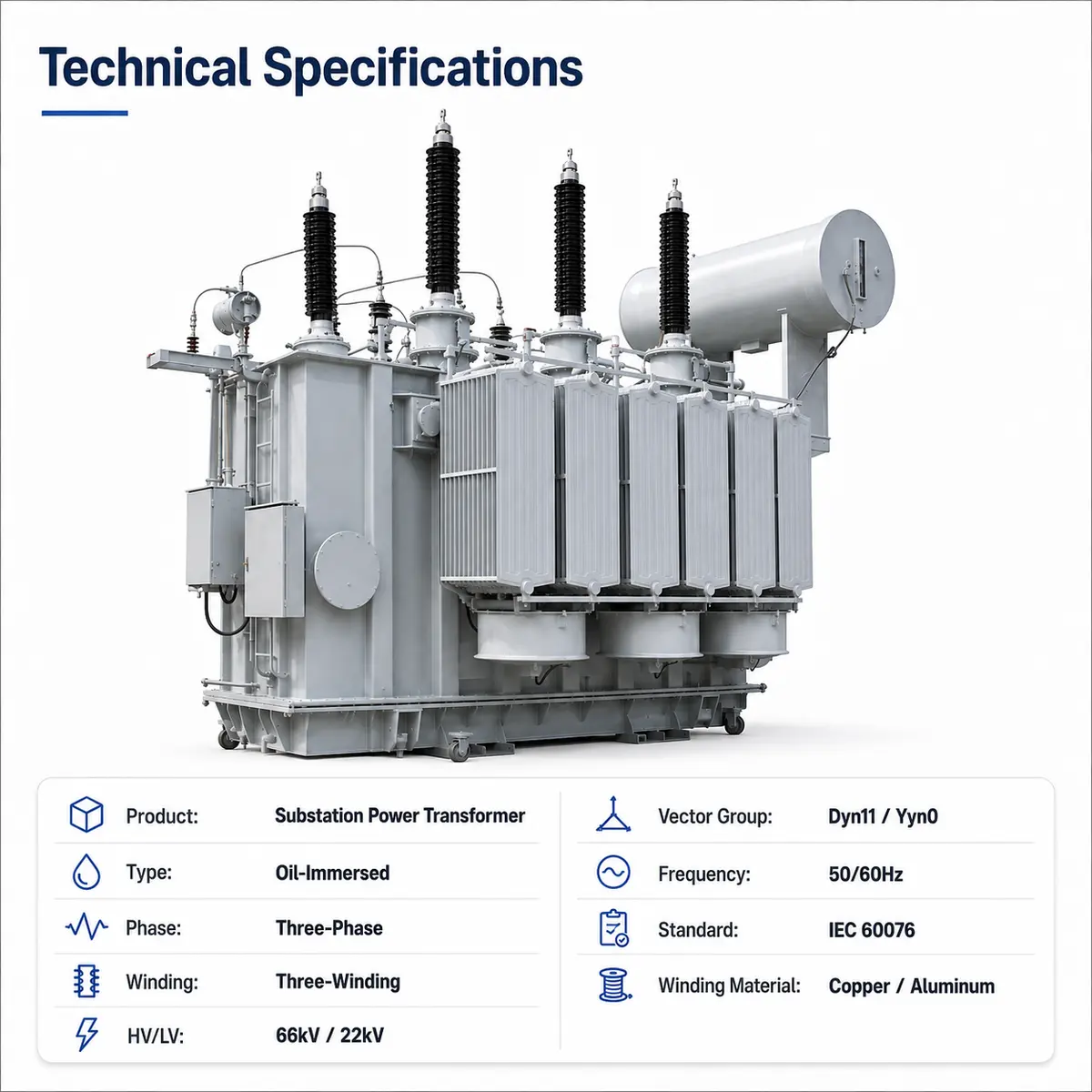

| Product Type | Three-Phase Three-Winding Oil-Immersed Power Transformer |
| Input Voltage (HV) | 66 kV |
| Output Voltage (LV) | 22 kV |
| Frequency | 50 / 60 Hz |
| Phase | Three |
| Coil Number | Three Windings |
| Winding Material | Copper / Aluminium |

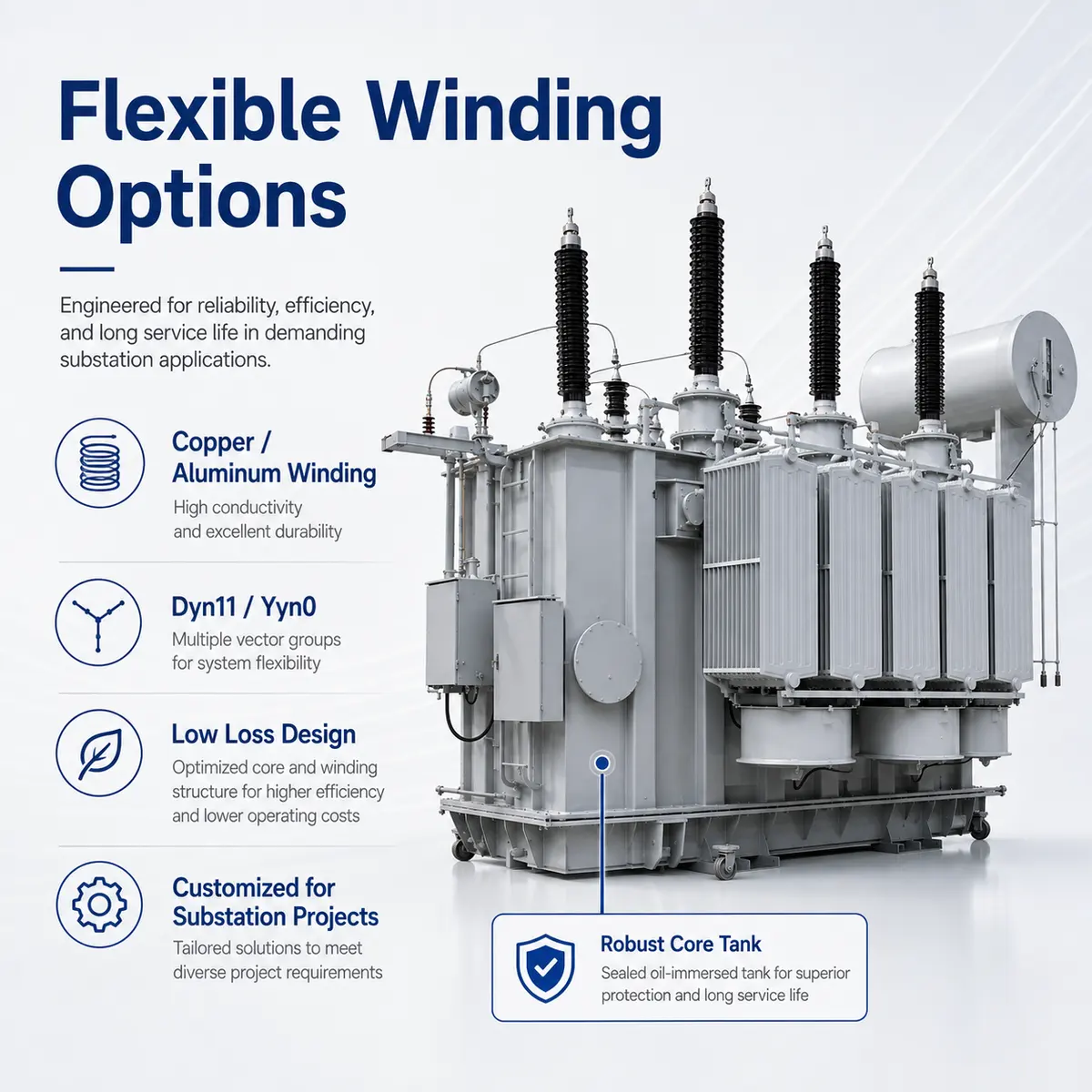

| Vector Group | Dyn11 / Yyn0 |
| Cooling | ONAN / ONAF (oil-immersed, radiator) |
| Standard | IEC 60076 / GB |
| Certification | ISO9001 |
| Packing | Wooden Case |
Specifications are based on the standard configuration. Final ratings, dimensions, materials and packaging are confirmed on the approved drawing and order confirmation.
Features and construction

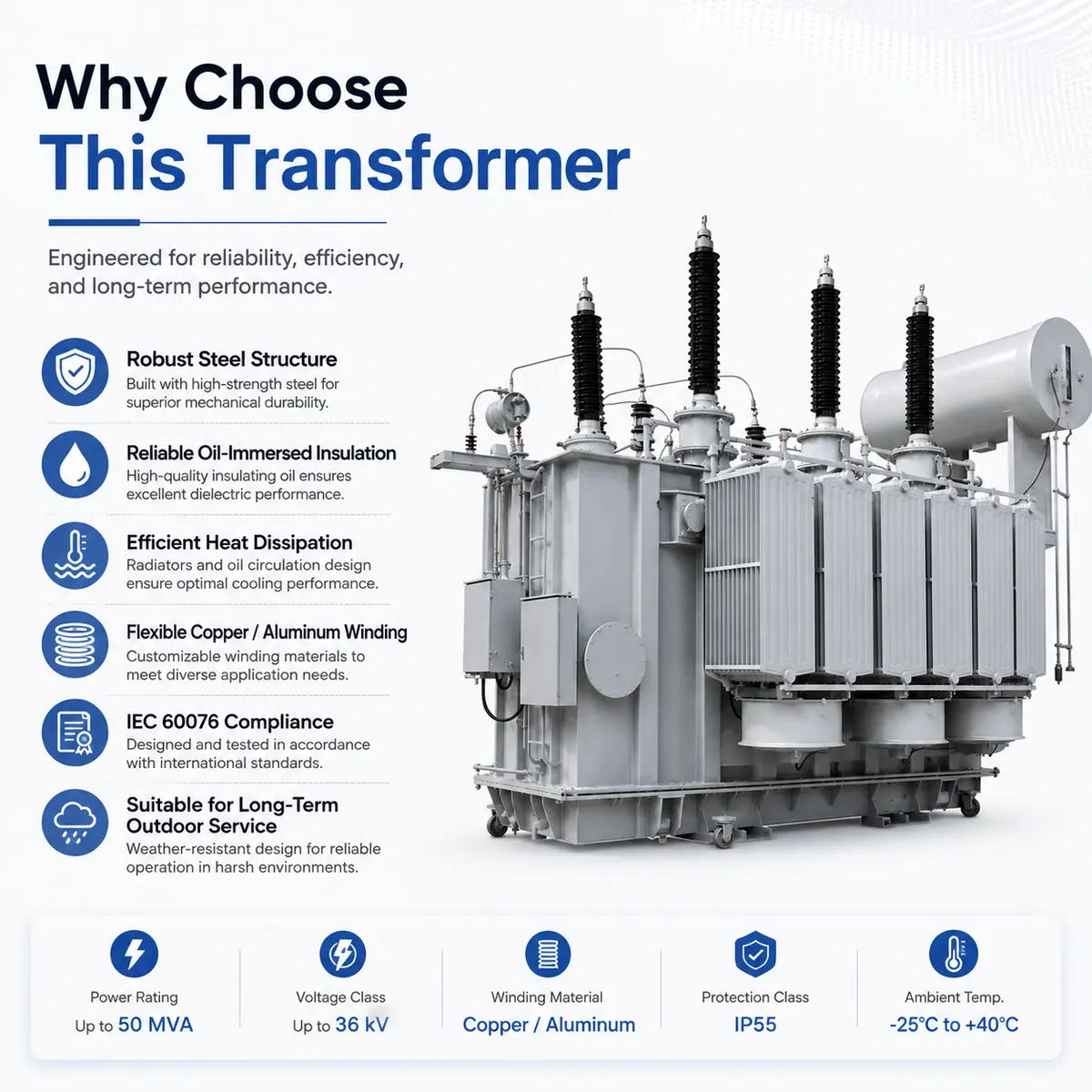

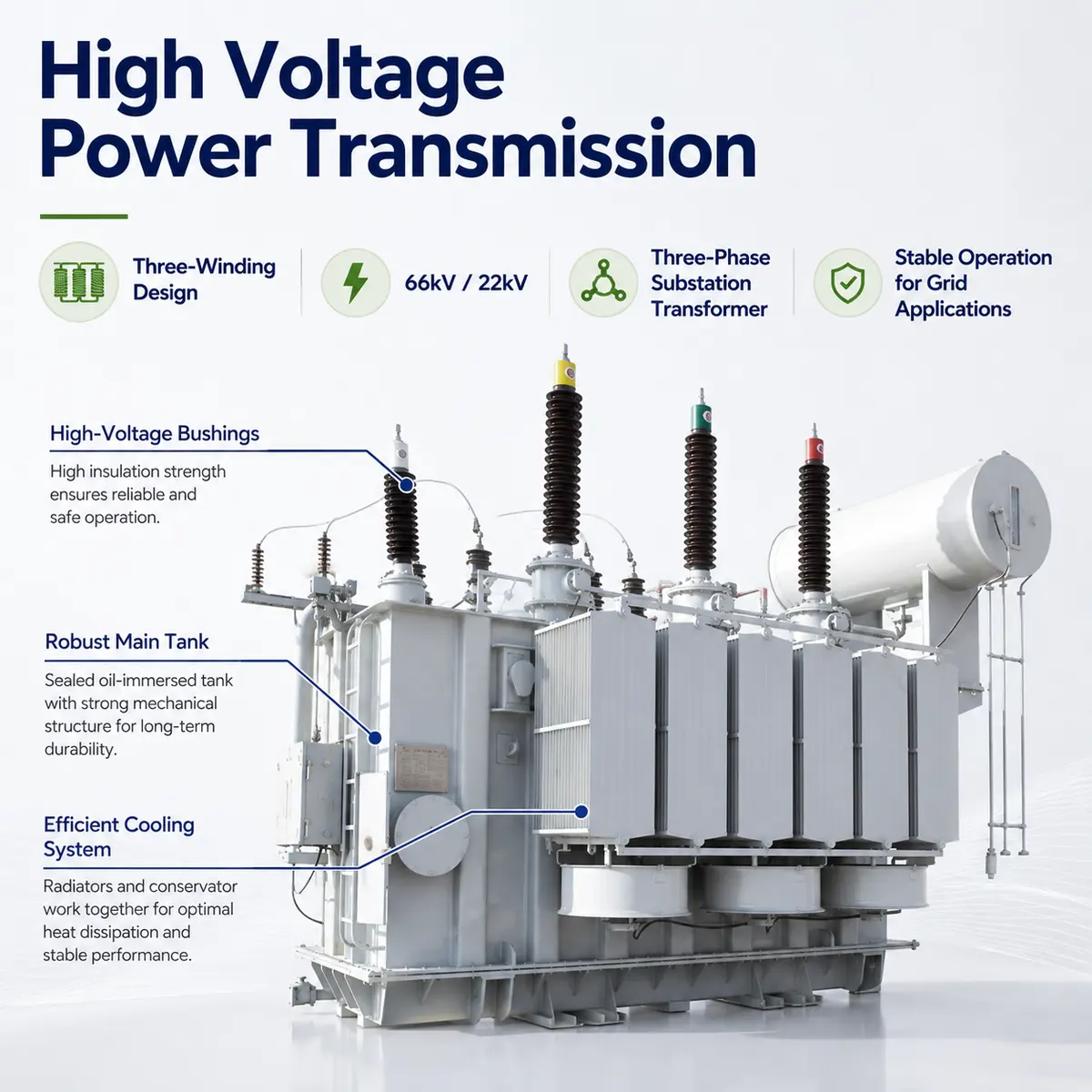

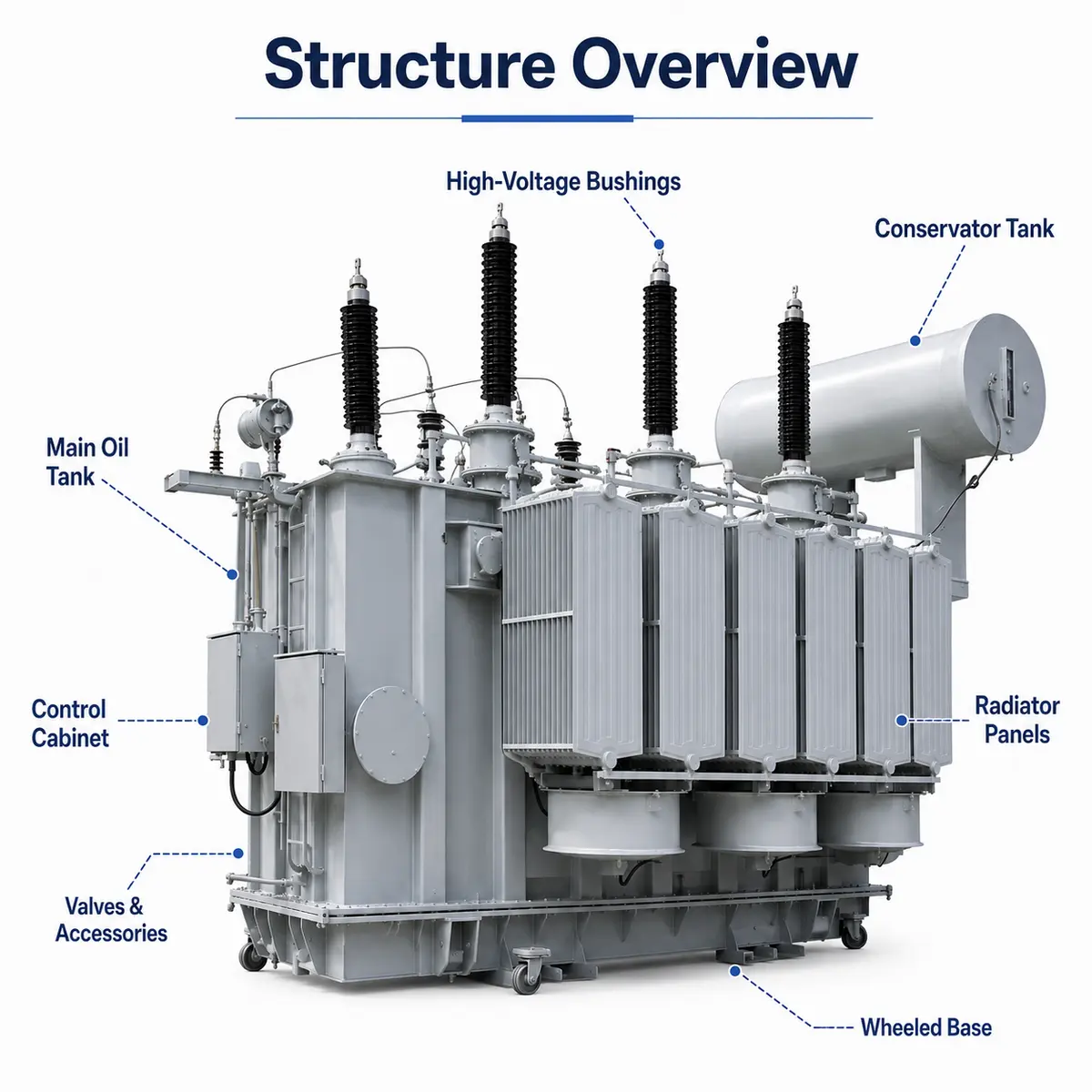

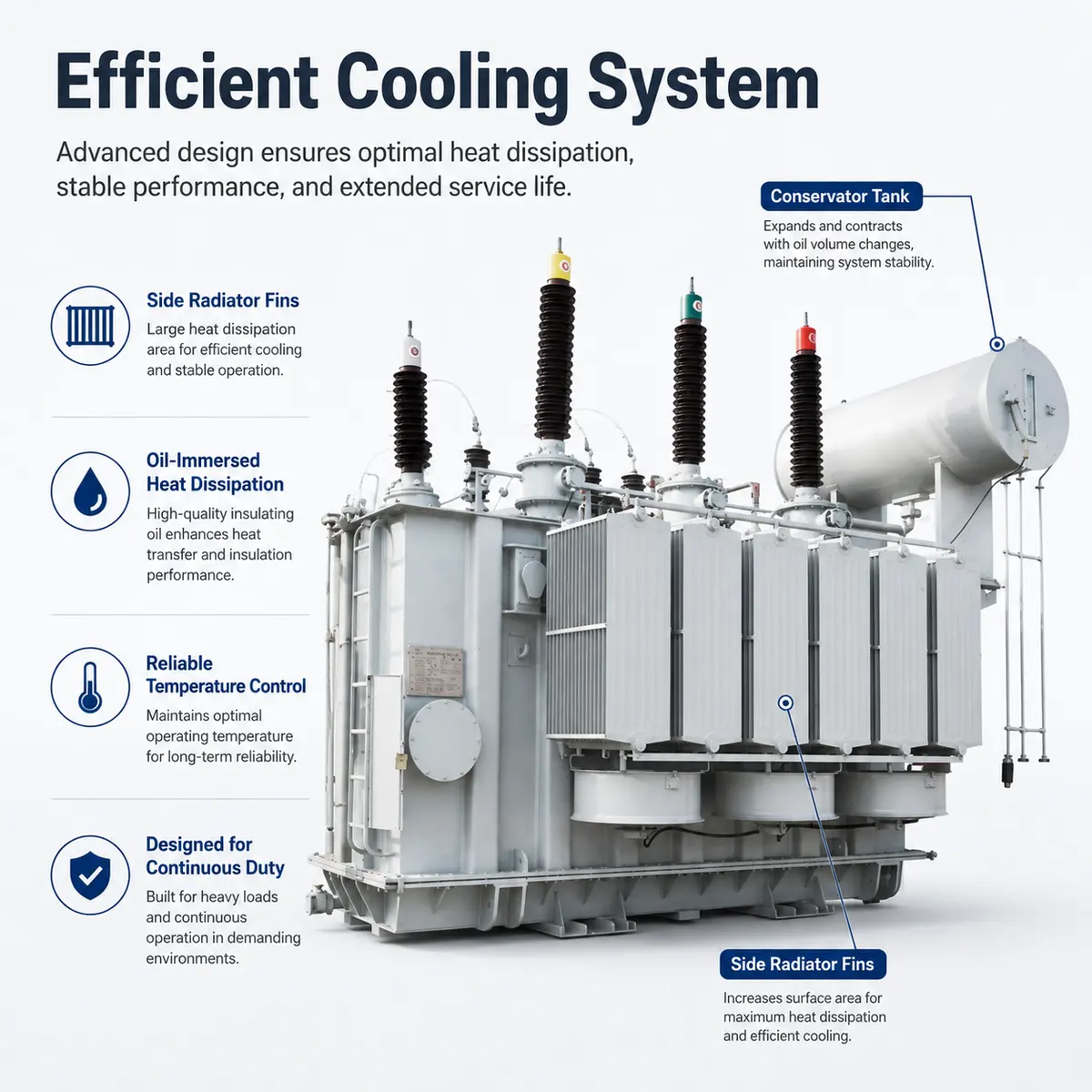

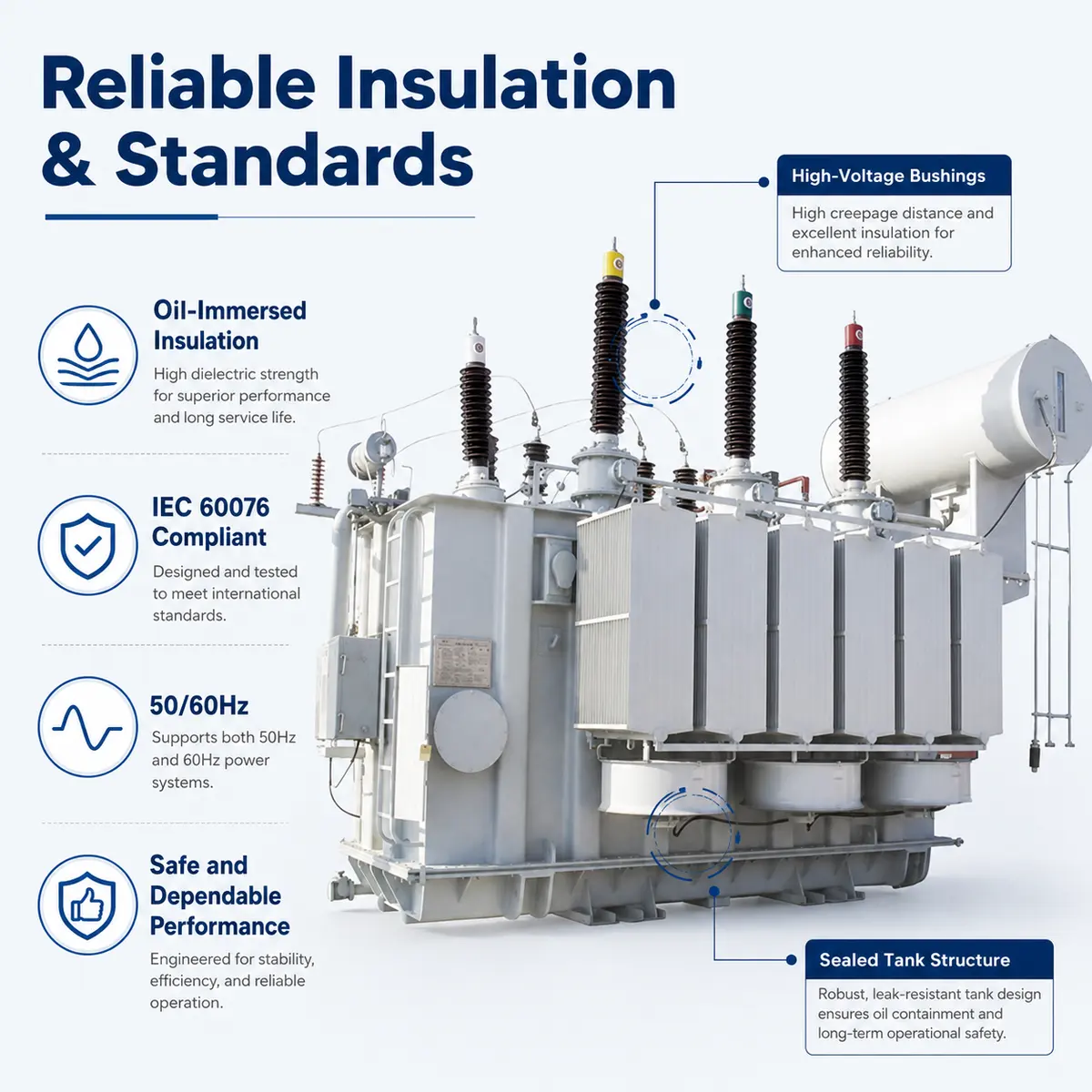

The sealed steel tank carries high-voltage porcelain bushings, a top-mounted conservator for oil expansion, side radiator banks for cooling and a control cabinet for monitoring and protection. Designed and tested to IEC 60076, the three-winding oil-immersed construction ensures efficient cooling and stable insulation for reliable substation service.
Typical applications

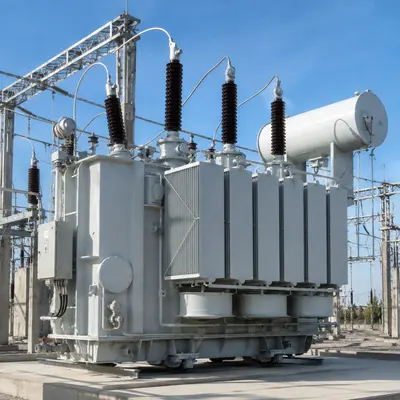

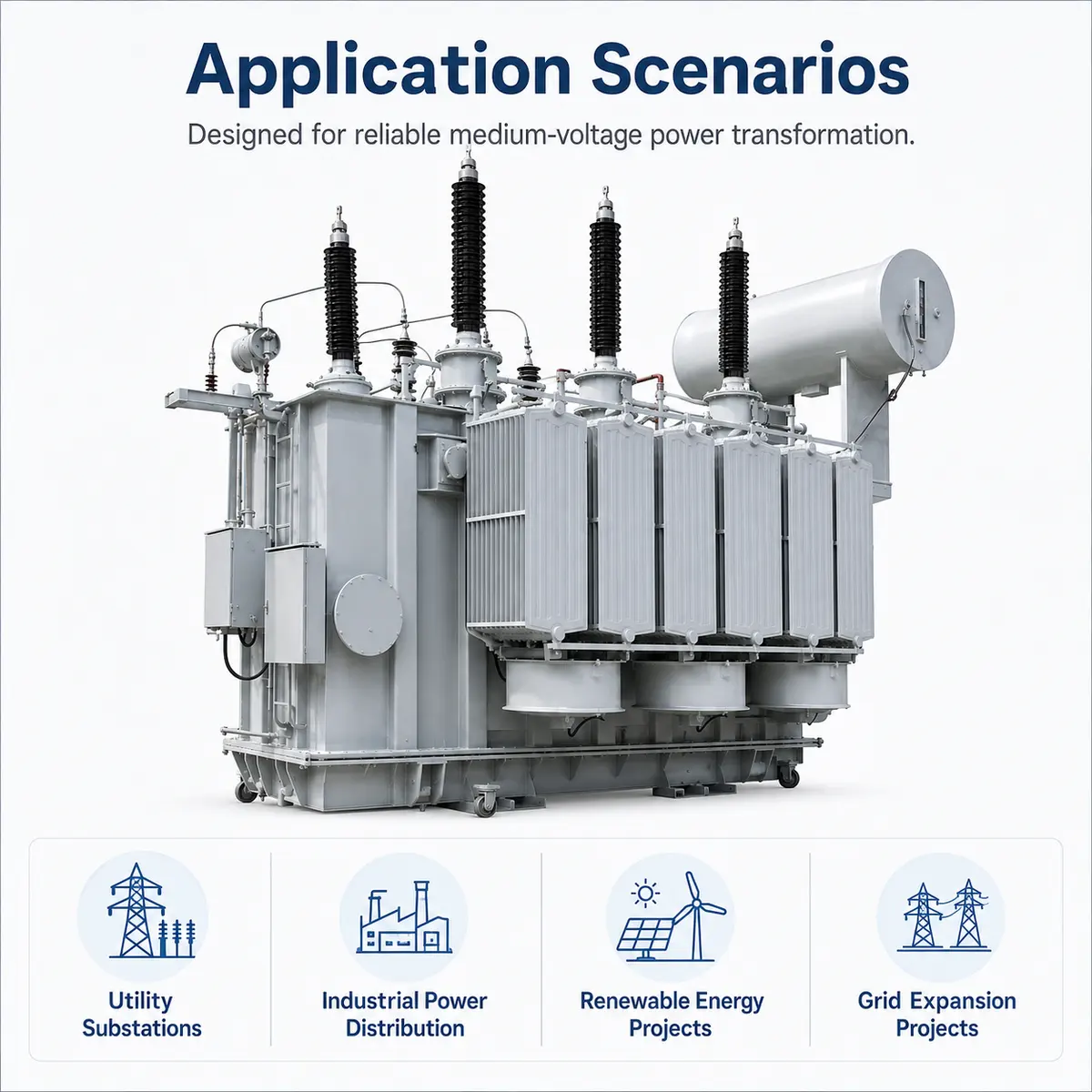

Utility and industrial substations, power transmission and distribution networks, and interconnection stations requiring IEC 60076-compliant 66-kV-class transformation.
Customisation options
Capacity, HV/LV voltage, vector group, tap-changer type, cooling class and fittings are customizable to project single-line requirements.
Ordering information
- Selling Unit: Single item
- Packing: Wooden Case
- Standards: IEC 60076 / GB; certified ISO9001
Specifications are based on the supplied product data. Final dimensions, materials, colors, and packaging are subject to the confirmed sample and order confirmation.
Standards and quality
Manufactured under an ISO 9001, ISO 14001 and ISO 45001 certified management system. Designs follow the IEC 60076 / IEC 62271 series as applicable, with ANSI/IEEE, GB and GOST variants available. Every unit passes routine testing before dispatch; type tests and customer or third-party witnessed factory acceptance tests can be arranged.
Frequently asked questions
What voltage ratio is available?
The standard unit is 66 kV input to 22 kV output. Voltage ratio, tapping range and vector group can be adjusted to your network; 50 Hz and 60 Hz designs are available.
Which standards and certifications apply?
The product is designed to IEC 60076 / GB. MARS operates an ISO 9001 / 14001 / 45001 certified factory and holds CE (ECM), UDEM, EAC and CQC approvals; every unit is routine-tested before dispatch and type or witnessed tests can be arranged.
Can this product be customised?
Capacity, HV/LV voltage, vector group, tap-changer type, cooling class and fittings are customizable to project single-line requirements.
What is the lead time and how is it shipped?
Packed in wooden case. Typical lead time is 25–45 days after drawing approval for distribution equipment and 60–90 days for power transformers and containerised systems. Shipment is by sea from Shanghai on EXW, FOB, CIF or DAP terms with a full document pack.
Enquire about this product
Tell us the rating, voltage ratio, frequency, quantity and destination. A MARS engineer replies with a technical proposal and quotation within one working day.
