Technical specifications

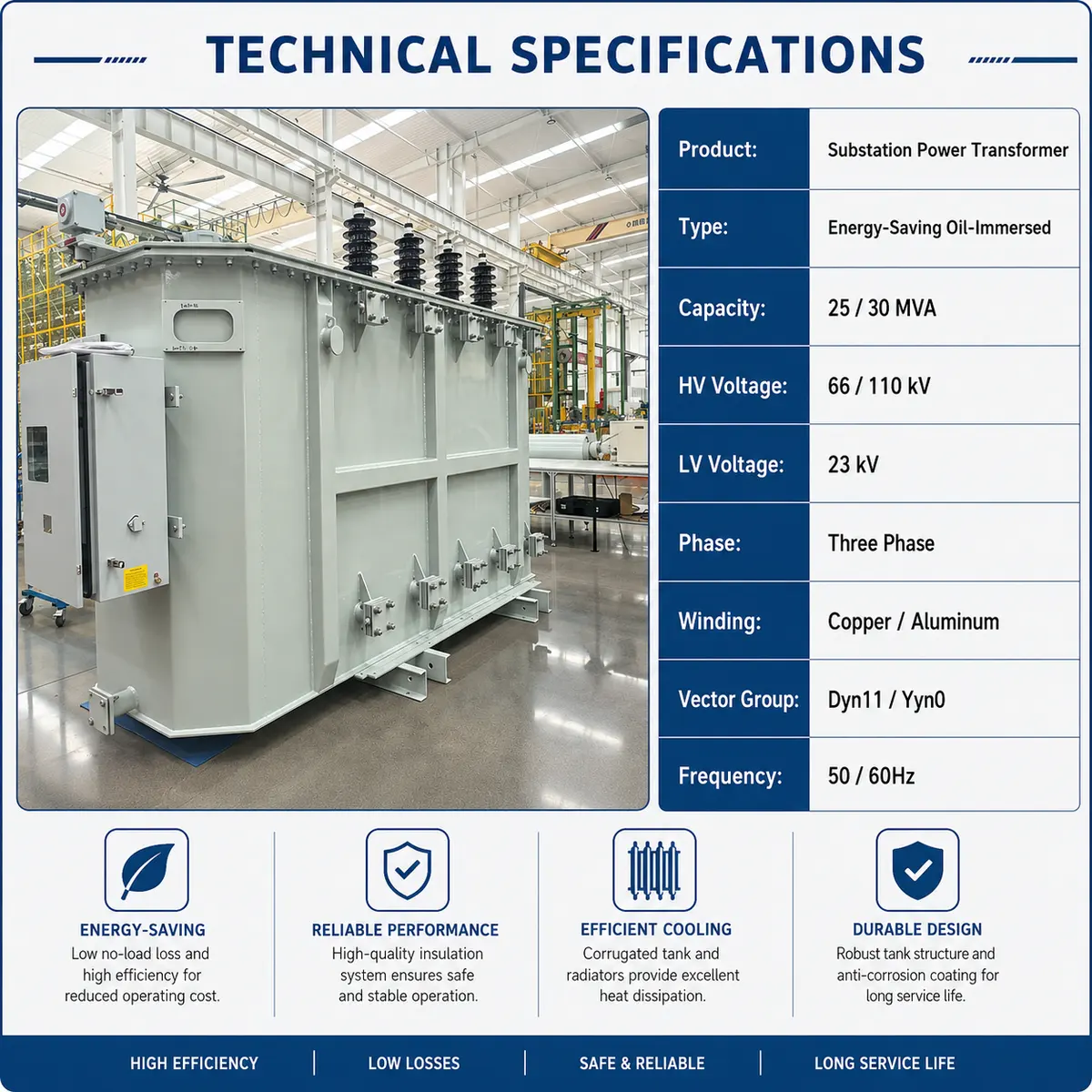

| Parameter | Value |
|---|---|
| Product Type | Three-Phase Oil-Immersed Power Transformer |
| Rated Capacity | 25 / 30 MVA |
| Input Voltage (HV) | 66 / 110 kV |
| Output Voltage (LV) | 23 kV |
| Frequency | 50 / 60 Hz |
| Phase | Three |
| Winding Material | Copper / Aluminium |
| Vector Group | Dyn11 / Yyn0 |
| Cooling | ONAN / ONAF (oil-immersed, radiator) |
| Standard | IEC / GB |
| Certification | UL, IEC, CE, ISO9001, ISO14001, ISO45001, CQC, GOST, EAC |
| Service Life | 20 Years |
| Packing | Wooden Case |
Specifications are based on the standard configuration. Final ratings, dimensions, materials and packaging are confirmed on the approved drawing and order confirmation.

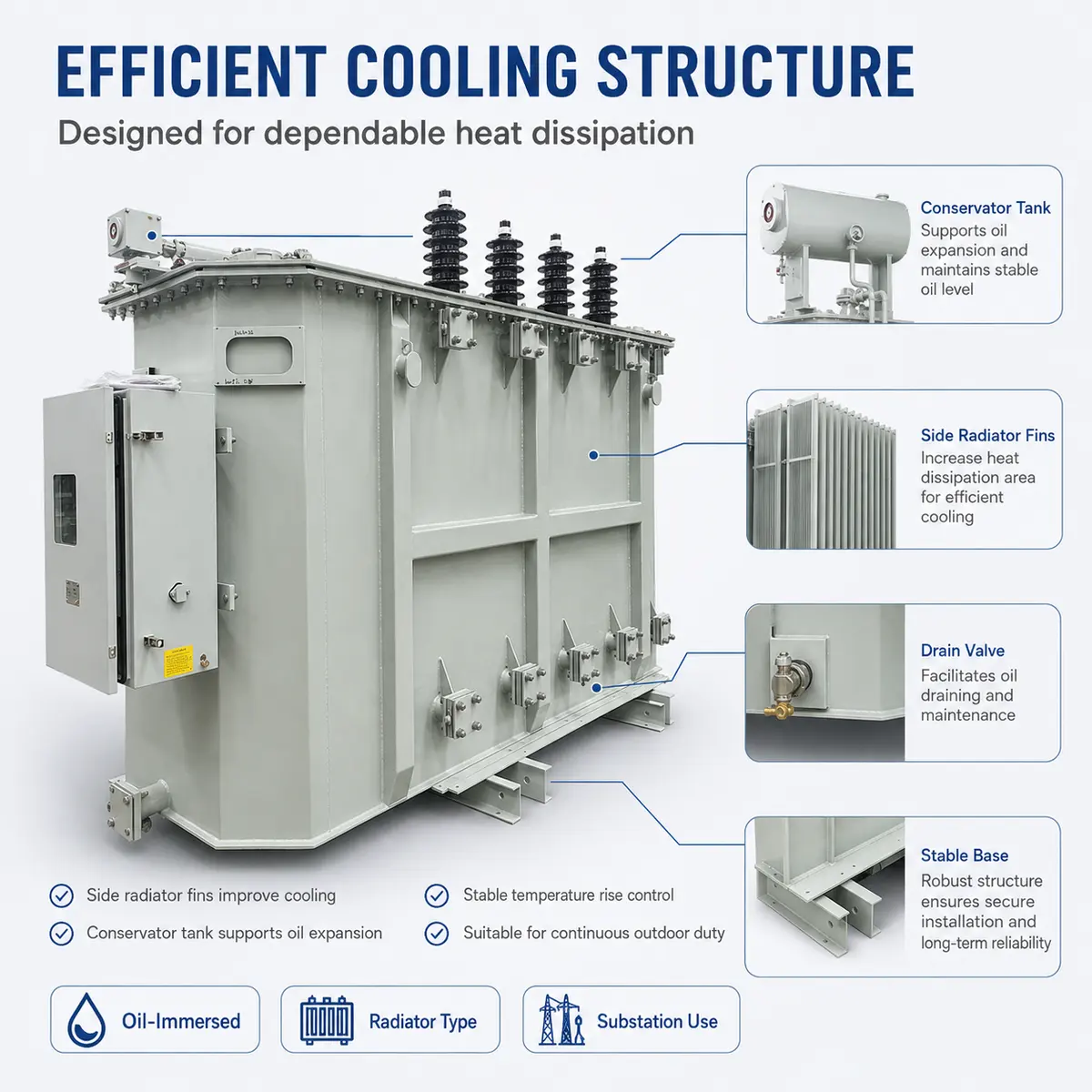

Features and construction

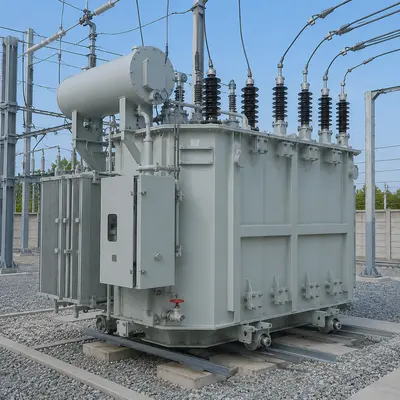

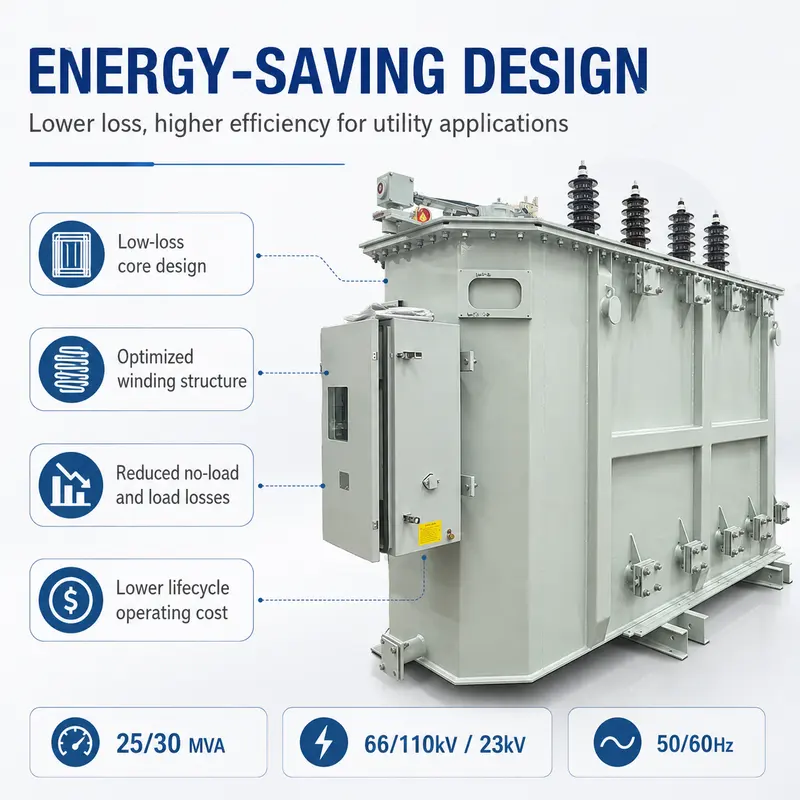

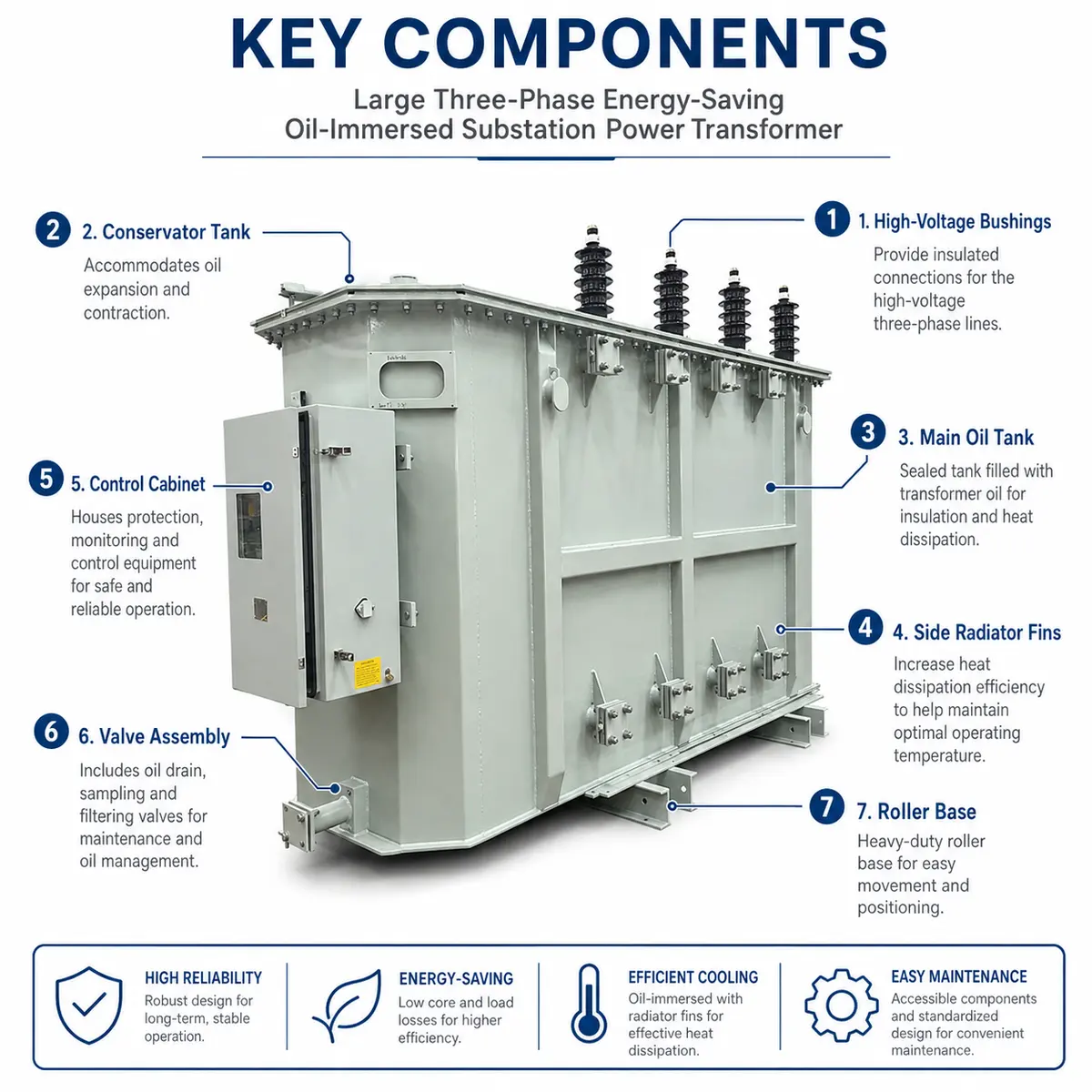

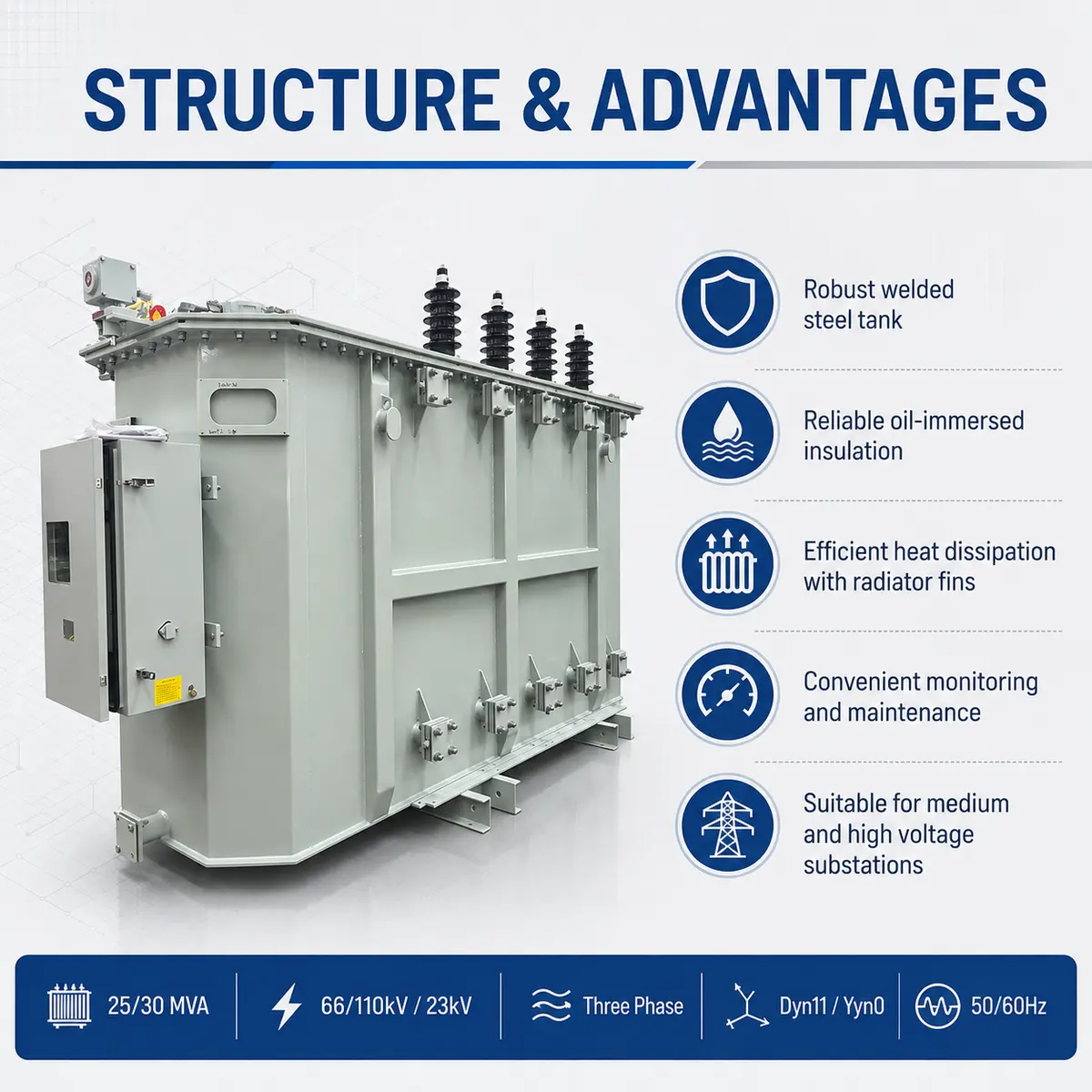

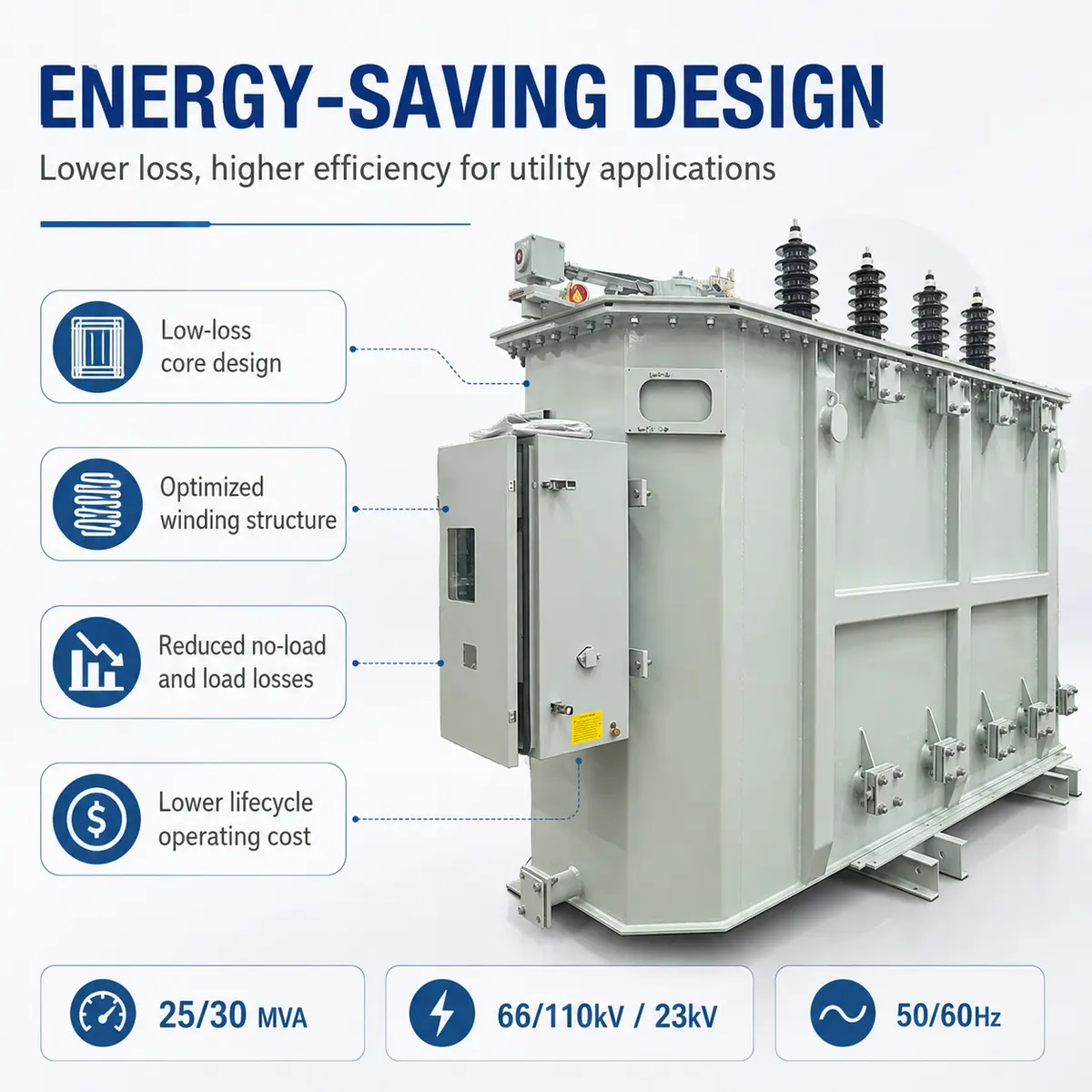

The sealed steel tank carries high-voltage porcelain bushings, a top-mounted conservator for oil expansion, side radiator banks for cooling and a control cabinet for monitoring and protection. Energy-saving low-loss materials cut lifetime operating cost, while the oil-immersed construction ensures efficient cooling and stable insulation for reliable substation service.
Typical applications
Utility and industrial substations, power transmission and distribution networks, renewable-energy stations and large plants requiring efficient 66–110-kV-class transformation.

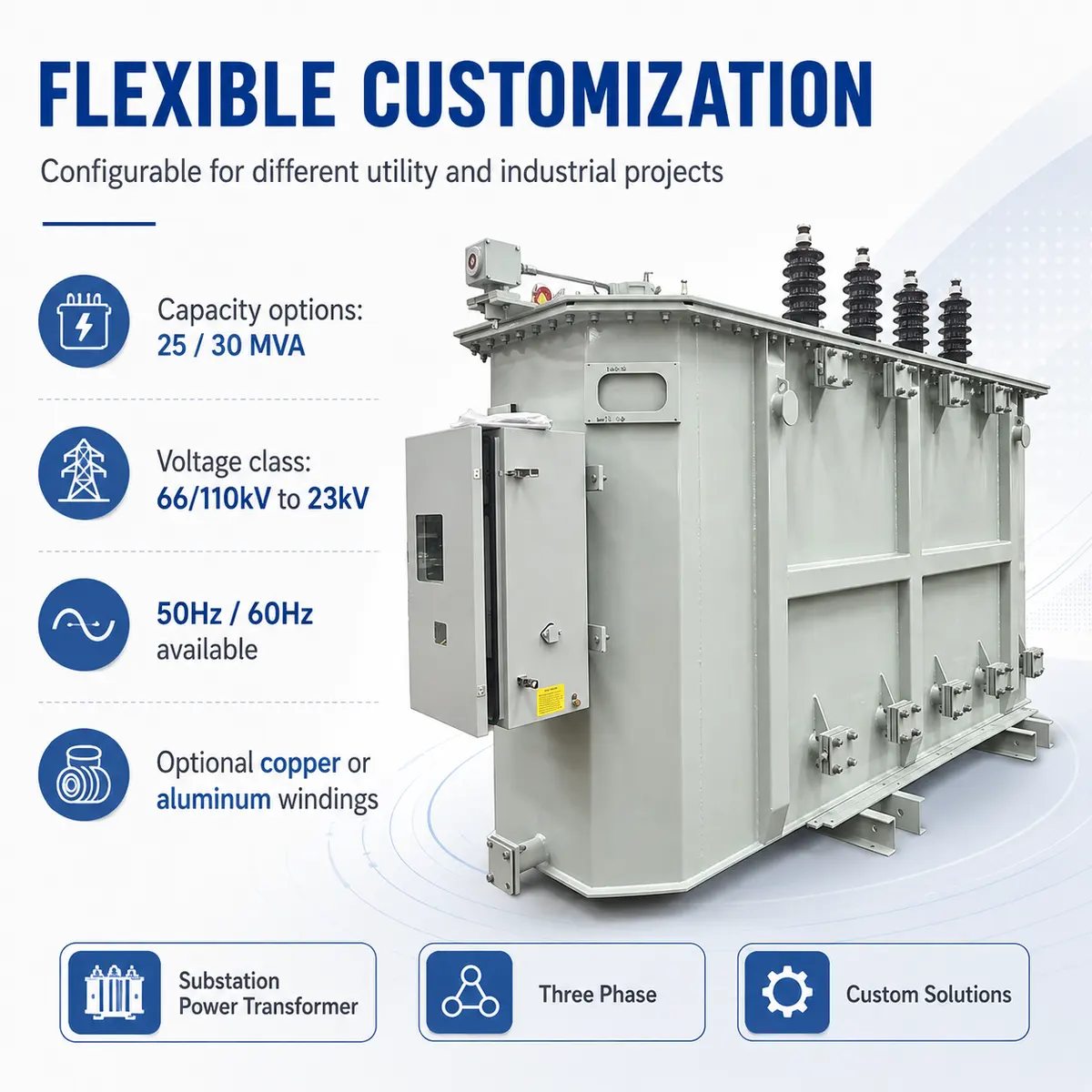

Customisation options
Capacity, HV/LV voltage, vector group, tap-changer type, cooling class and fittings are customizable to project single-line requirements.
Ordering information
- Selling Unit: Single item
- Packing: Wooden Case
- Standards: IEC / GB; certified UL, IEC, CE, ISO9001/14001/45001, CQC, GOST, EAC
Specifications are based on the supplied product data. Final dimensions, materials, colors, and packaging are subject to the confirmed sample and order confirmation.
Standards and quality
Manufactured under an ISO 9001, ISO 14001 and ISO 45001 certified management system. Designs follow the IEC 60076 / IEC 62271 series as applicable, with ANSI/IEEE, GB and GOST variants available. Every unit passes routine testing before dispatch; type tests and customer or third-party witnessed factory acceptance tests can be arranged.
