Technical specifications
| Parameter | Value |
|---|---|

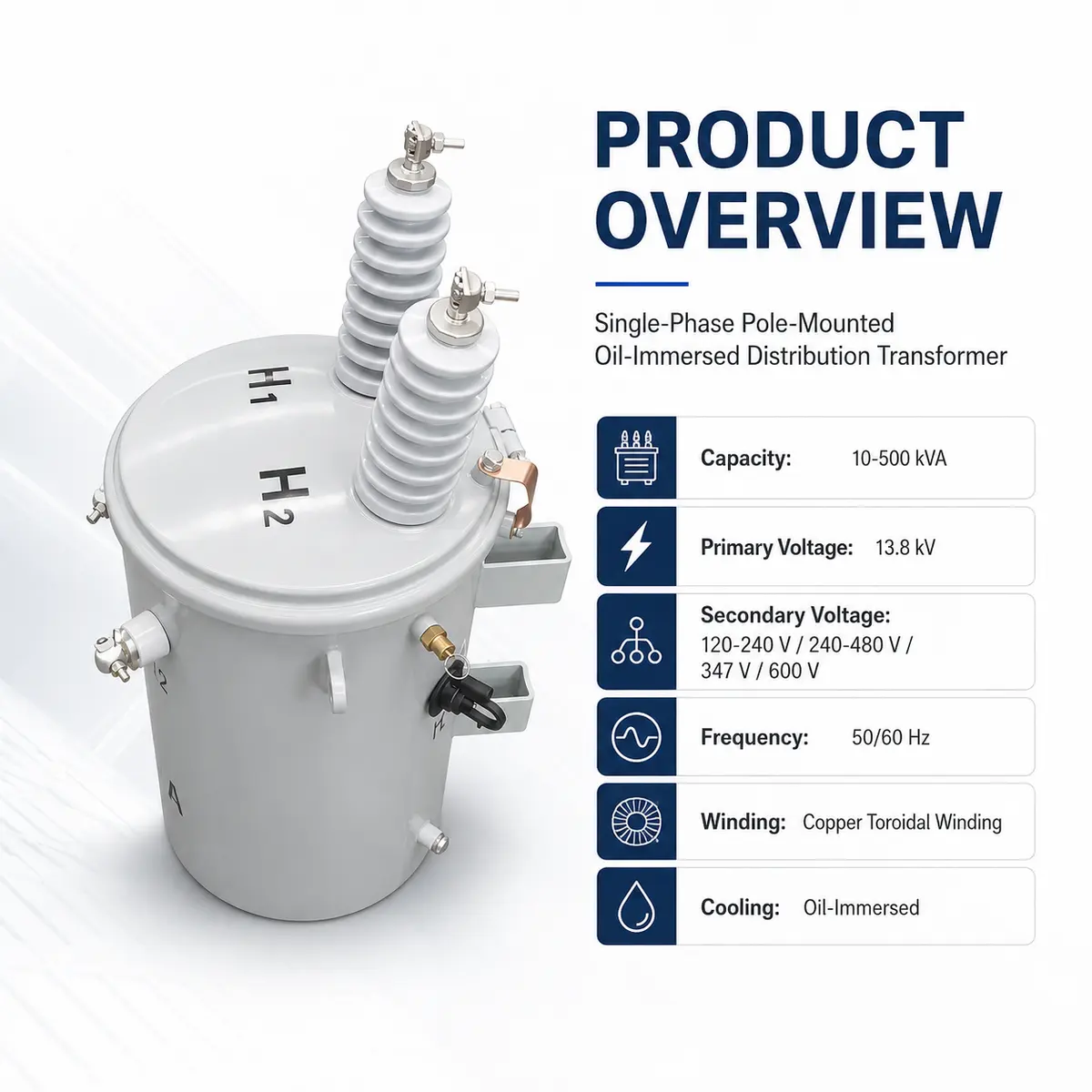

| Product Type | Single-Phase Pole-Mounted Oil-Filled Toroidal Transformer |

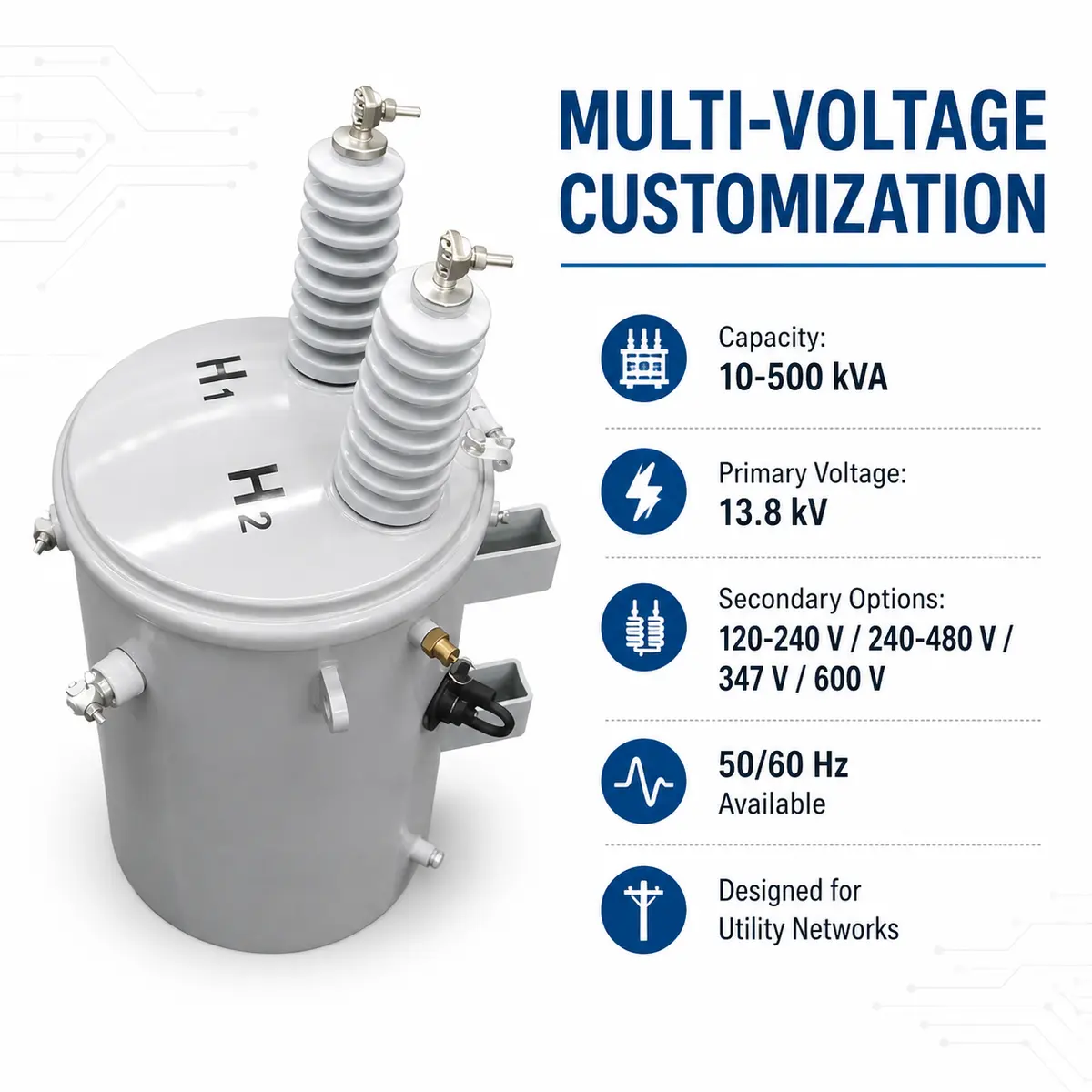

| Rated Capacity | 10 kVA – 500 kVA (typ. 167 kVA) |
| Input Voltage (HV) | 6 / 13.2 / 13.8 / 34.5 kV (typ. 14.4 kV, or custom) |
| Output Voltage (LV) | 120-240 / 240-480 / 347 / 600 V (or custom) |
| Frequency | 50 / 60 Hz |
| Phase | Single |
| Coil Structure | Toroidal (Ring) Coil |
| Winding Material | Copper / Aluminium |
| Core Material | Silicon Steel Sheet |
| Application | Power Distribution System |
| Standard | IEC / GB |
| Certification | IEC, CE, ISO9001, ISO14001, ISO45001, CQC, GOST, EAC |
| Packing | Wooden Case |
Specifications are based on the standard configuration. Final ratings, dimensions, materials and packaging are confirmed on the approved drawing and order confirmation.
Features and construction

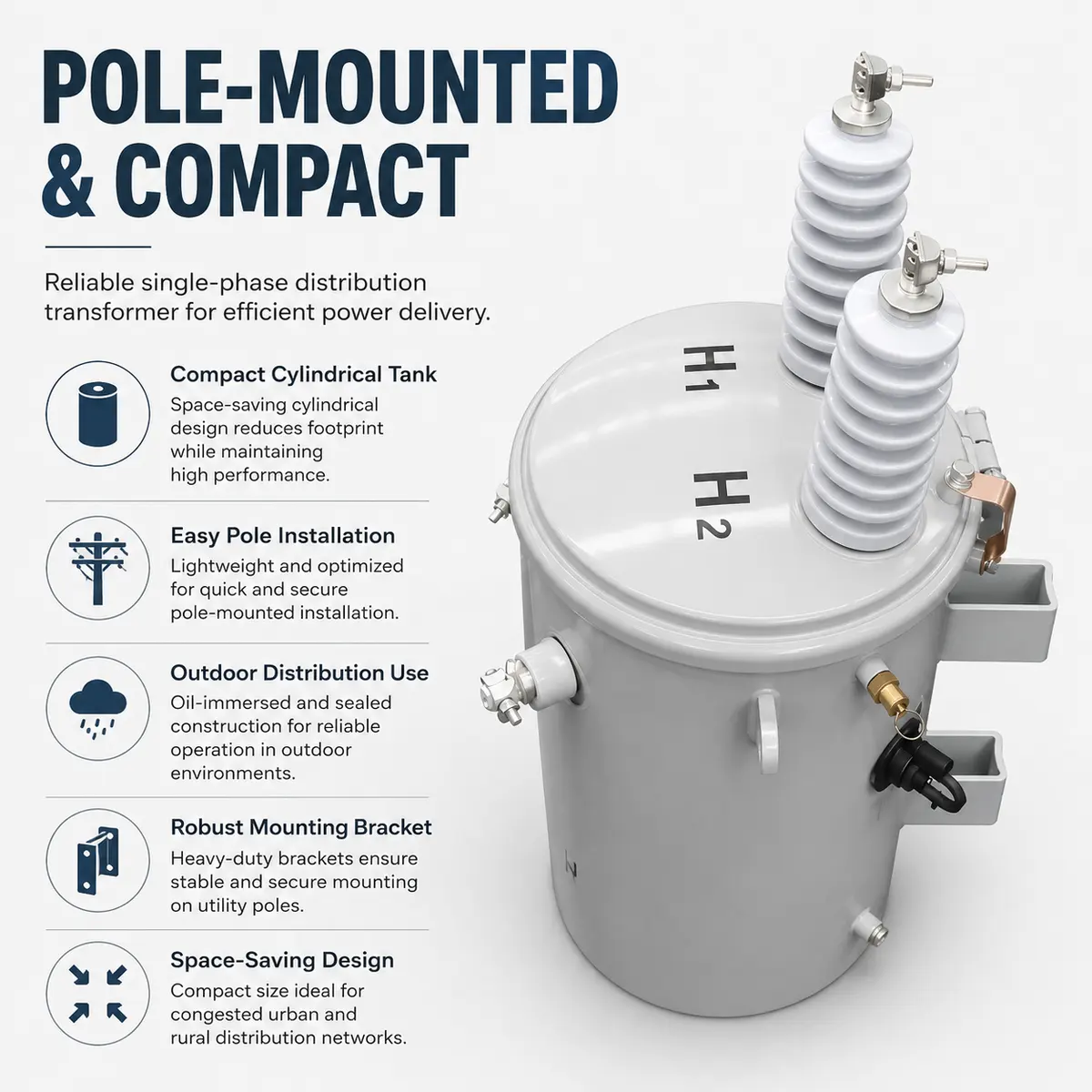

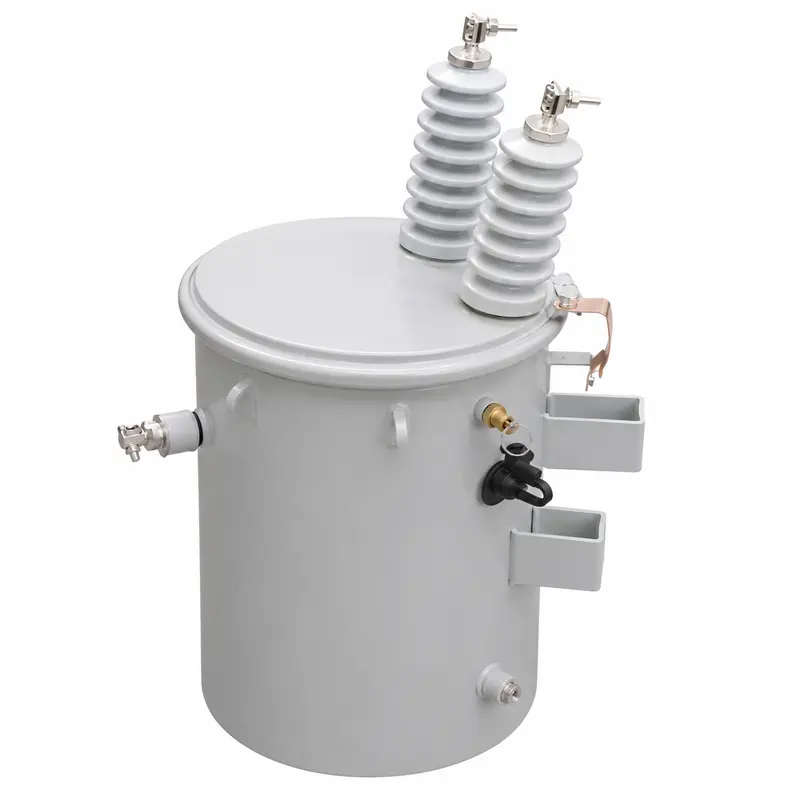

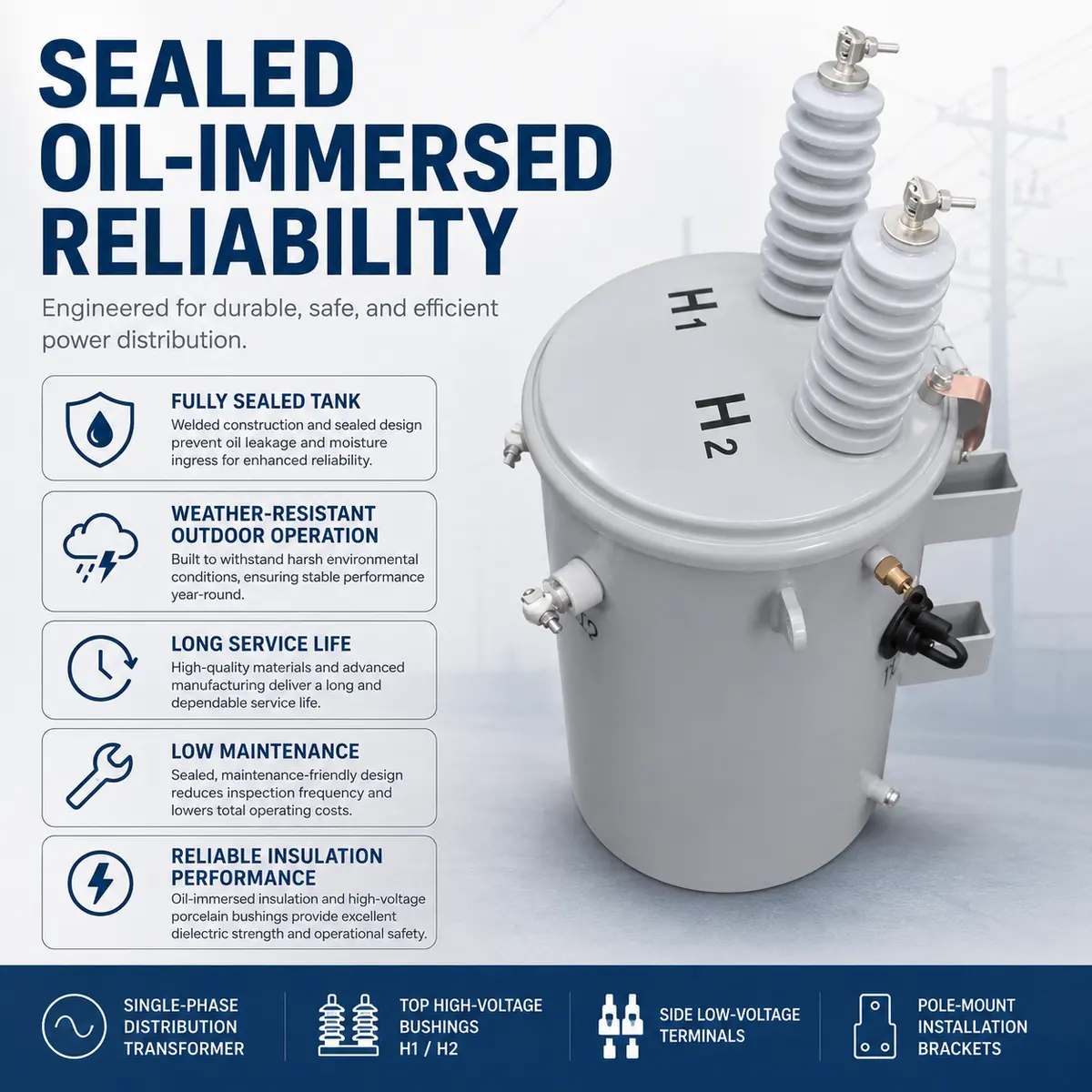

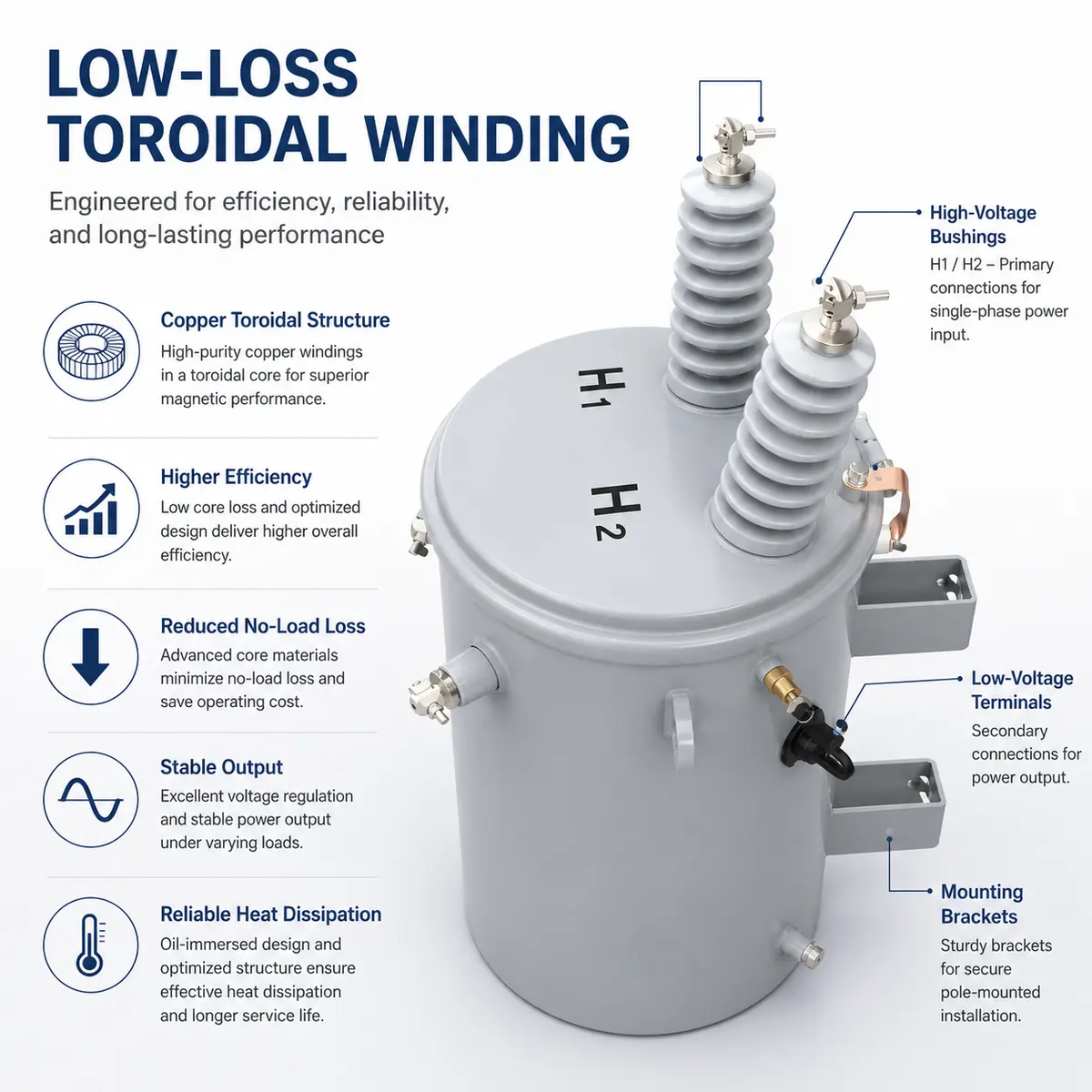

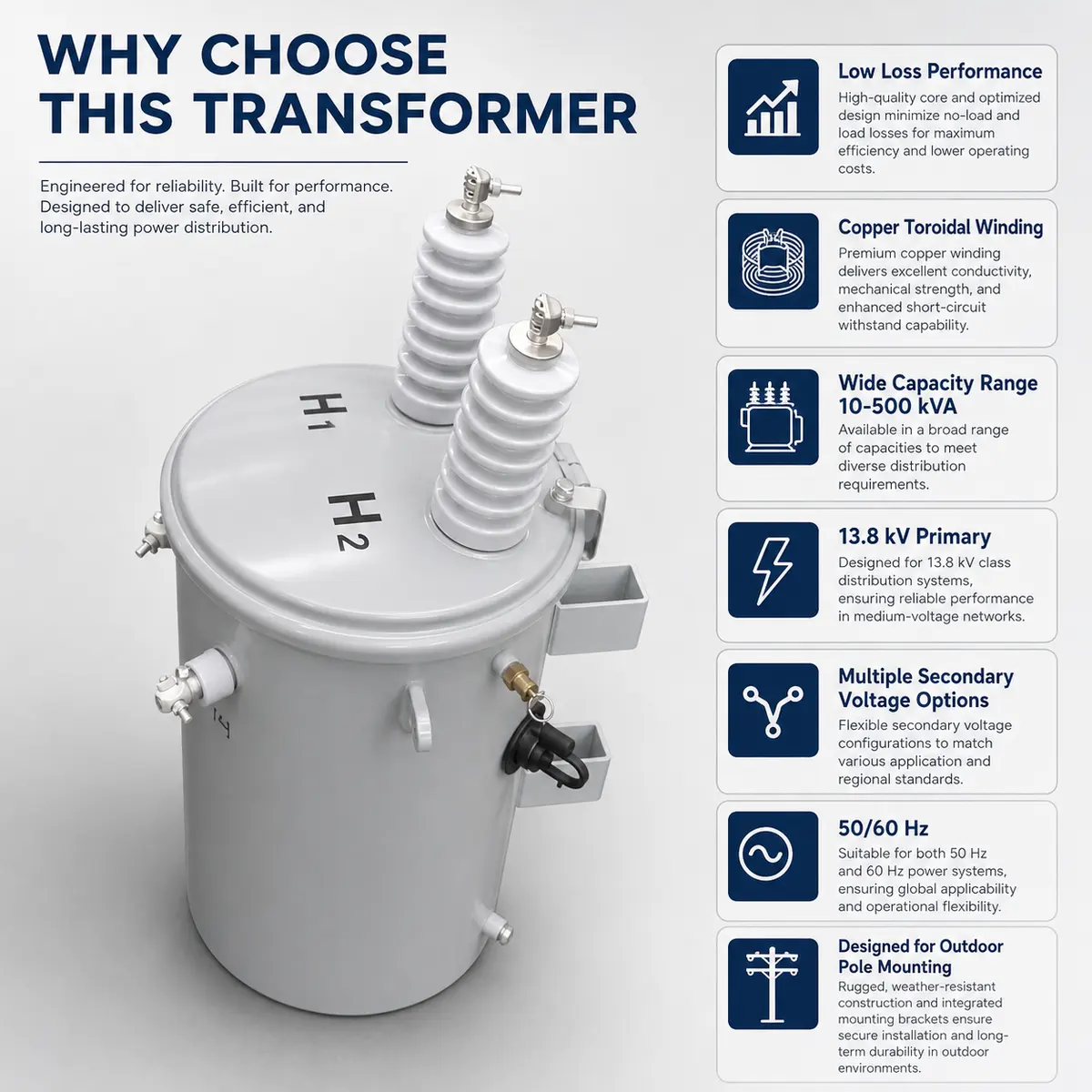

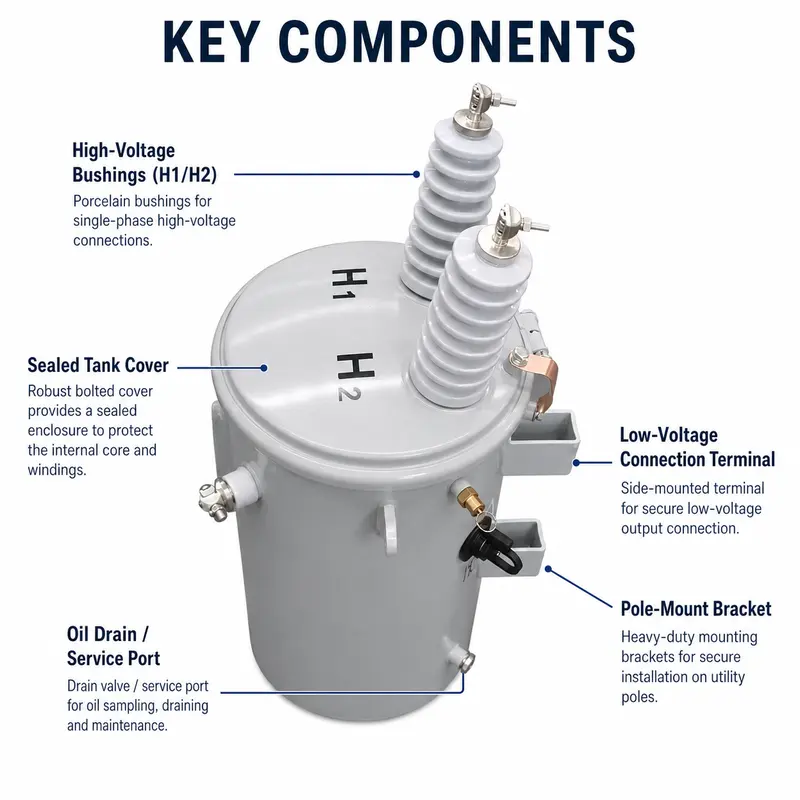

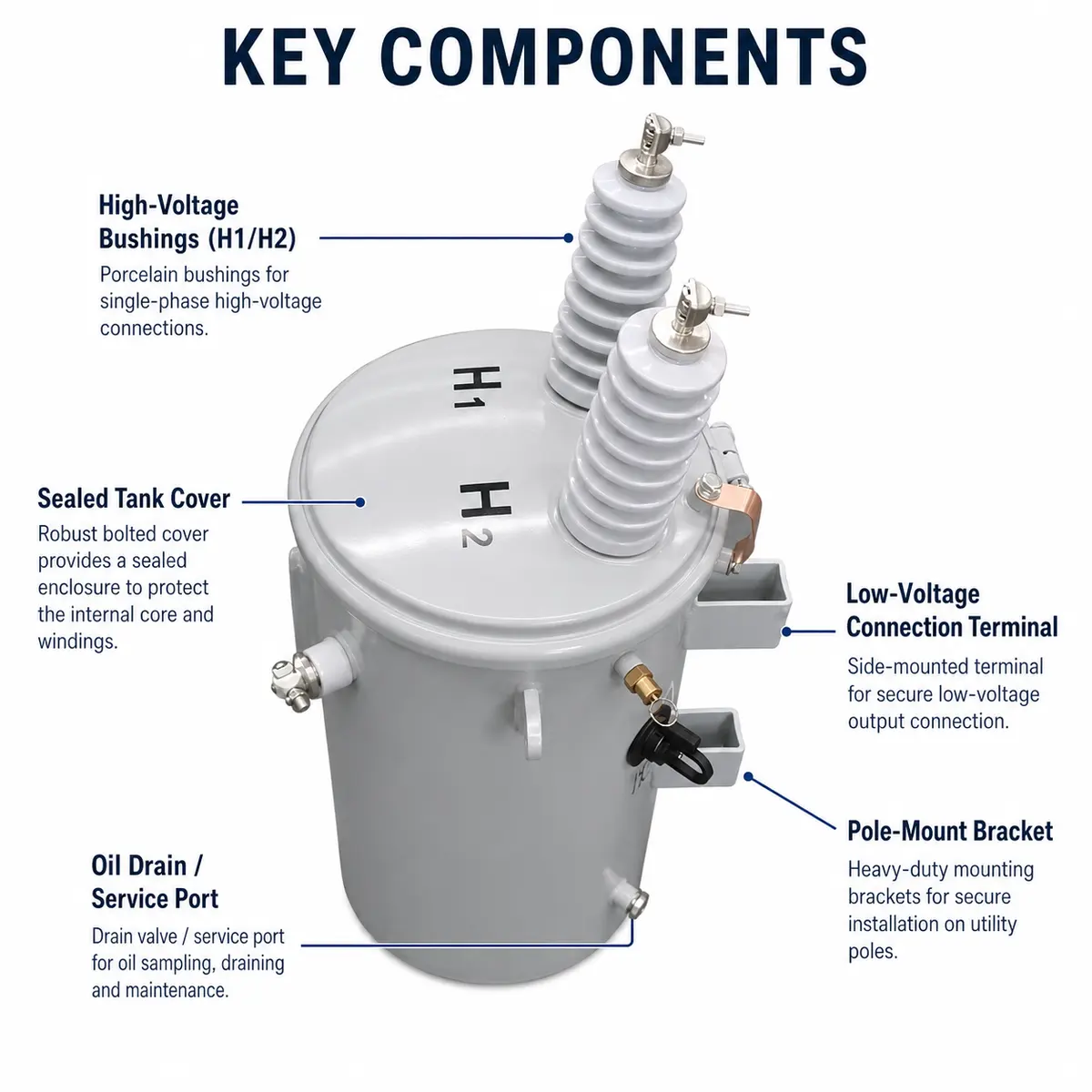

The sealed cylindrical steel tank carries high-voltage porcelain bushings on the cover and low-voltage terminals on the side, with mounting brackets for direct attachment to a distribution pole. The toroidal copper winding lowers losses and noise, while the oil-filled hermetic design protects the windings from moisture and provides efficient cooling for dependable single-phase distribution.
Typical applications

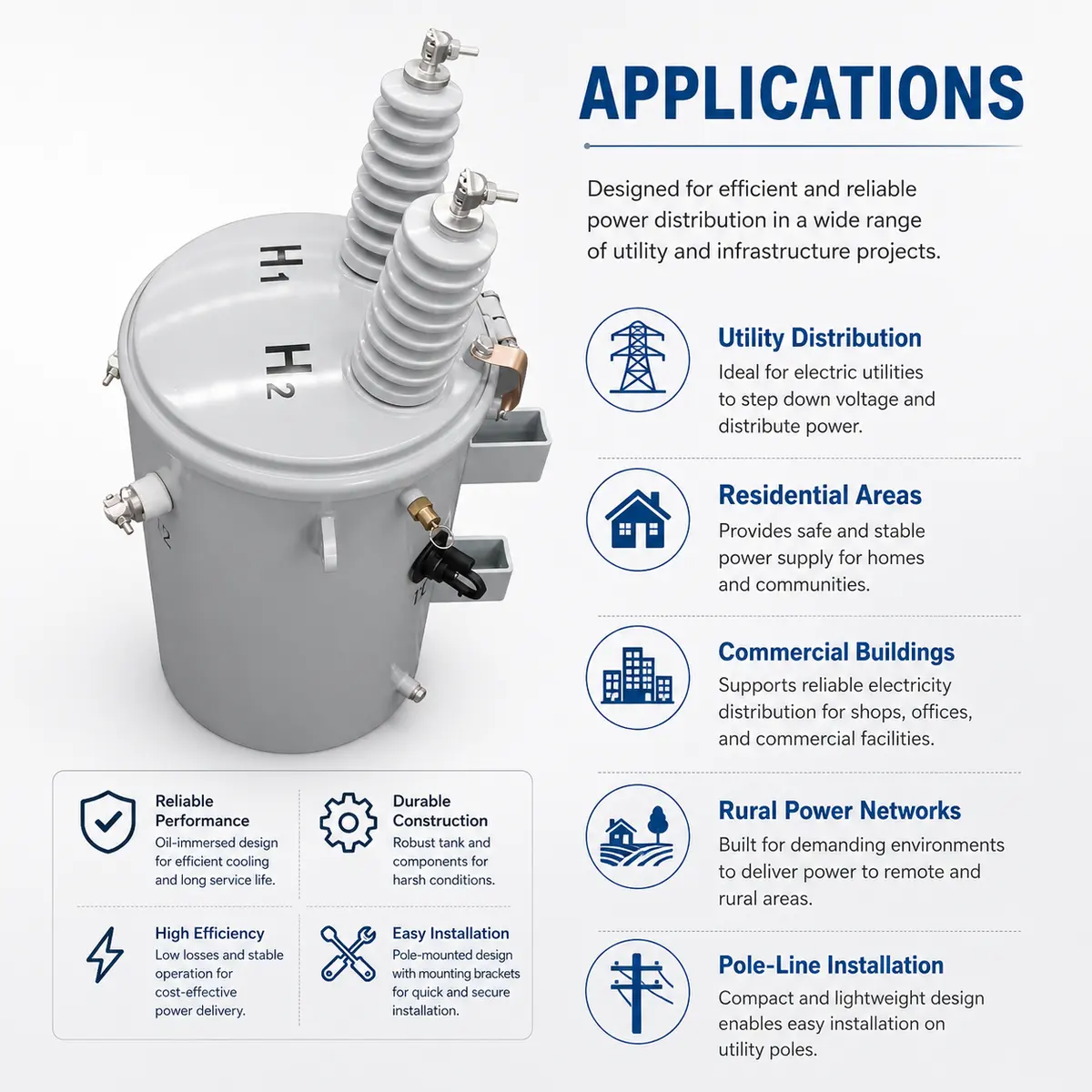

Overhead distribution lines for residential neighborhoods, rural electrification, farms, streets and light-commercial loads where efficient single-phase pole-mounted step-down is required.
Customisation options
Capacity, HV/LV voltage, winding material, bushing type and mounting hardware can be customized to local grid standards (e.g. ANSI/IEC).
Ordering information
- Selling Unit: Single item
- Packing: Wooden case
- Standards: IEC / GB; certified IEC, CE, ISO9001/14001/45001, CQC, GOST, EAC
Specifications are based on the supplied product data. Final dimensions, materials, colors, and packaging are subject to the confirmed sample and order confirmation.
Standards and quality
Manufactured under an ISO 9001, ISO 14001 and ISO 45001 certified management system. Designs follow the IEC 60076 / IEC 62271 series as applicable, with ANSI/IEEE, GB and GOST variants available. Every unit passes routine testing before dispatch; type tests and customer or third-party witnessed factory acceptance tests can be arranged.
Frequently asked questions
What is the rated capacity of the 167 kVA Low-Loss Toroidal Single-Phase Pole-Mounted Distribution Transformer?
The standard configuration is rated 10 kVA – 500 kVA (typ. 167 kVA) at 50 / 60 Hz. Other ratings in the same family can be built to order — tell us the load and we will confirm the nearest standard rating.
What voltage ratio is available?
The standard unit is 6 / 13.2 / 13.8 / 34.5 kV (typ. 14.4 kV, or custom) input to 120-240 / 240-480 / 347 / 600 V (or custom) output. Voltage ratio, tapping range and vector group can be adjusted to your network; 50 Hz and 60 Hz designs are available.
Which standards and certifications apply?
The product is designed to IEC / GB. MARS operates an ISO 9001 / 14001 / 45001 certified factory and holds CE (ECM), UDEM, EAC and CQC approvals; every unit is routine-tested before dispatch and type or witnessed tests can be arranged.
Can this product be customised?
Capacity, HV/LV voltage, winding material, bushing type and mounting hardware can be customized to local grid standards (e.g. ANSI/IEC).
What is the lead time and how is it shipped?
Packed in wooden case. Typical lead time is 25–45 days after drawing approval for distribution equipment and 60–90 days for power transformers and containerised systems. Shipment is by sea from Shanghai on EXW, FOB, CIF or DAP terms with a full document pack.
Enquire about this product
Tell us the rating, voltage ratio, frequency, quantity and destination. A MARS engineer replies with a technical proposal and quotation within one working day.
