Technical specifications
| Parameter | Value |
|---|---|
| Product Type | Three-Phase Pad-Mounted Transformer |
| Rated Capacity | 1500 kVA |
| Primary Voltage | 13.8 kV / 34.5 kV |
| Secondary Voltage | 400V / 230V (415/440/480V optional) |
| Frequency | 50 / 60 Hz |
| Phase | Three |
| Winding Material | Copper / Aluminium |
| Vector Group | Dyn11 / Yyn0 / Yzn11 |
| Feed Type | Loop Feed |
| Certification | IEC 60076, UL, CE |
Specifications are based on the standard configuration. Final ratings, dimensions, materials and packaging are confirmed on the approved drawing and order confirmation.
Features and construction

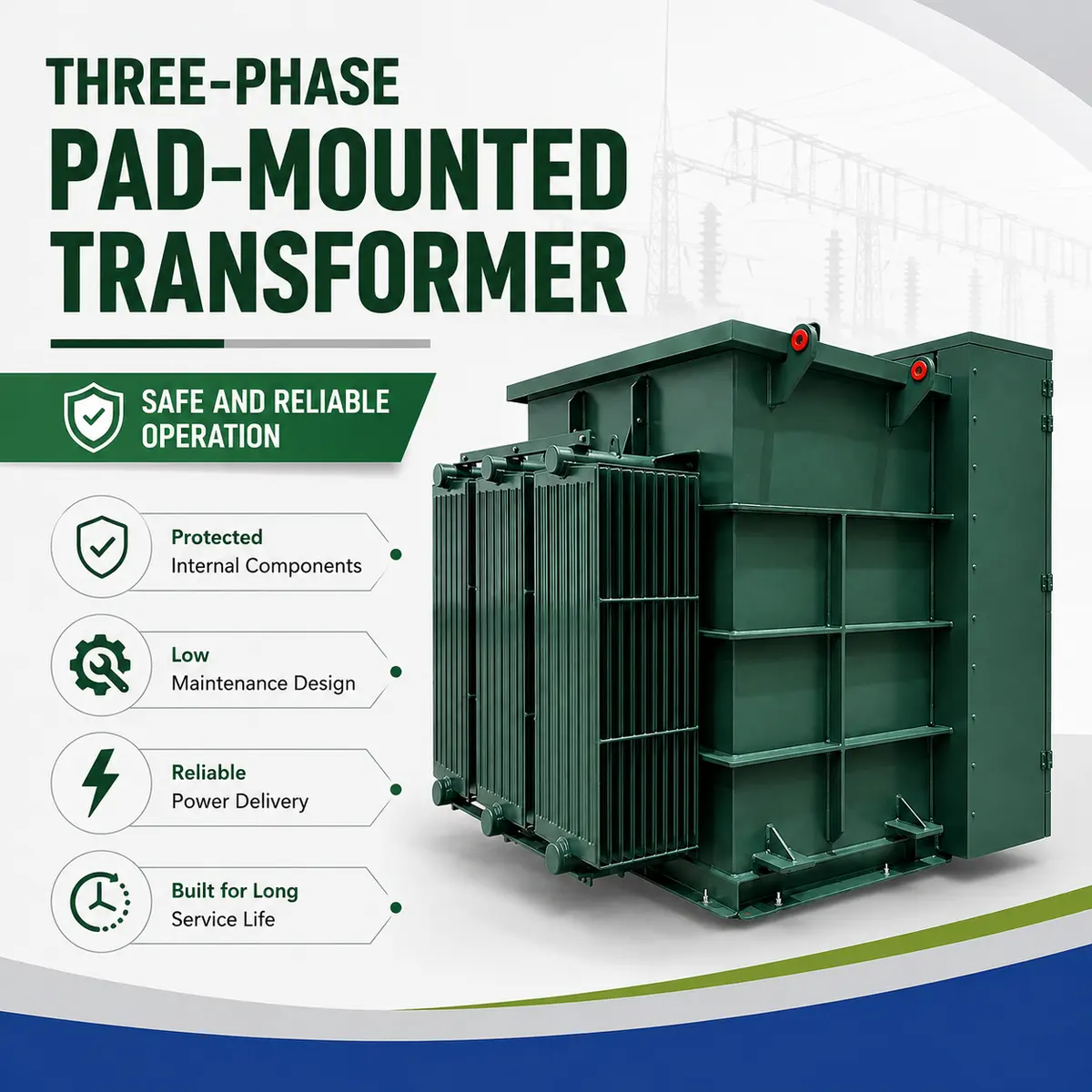

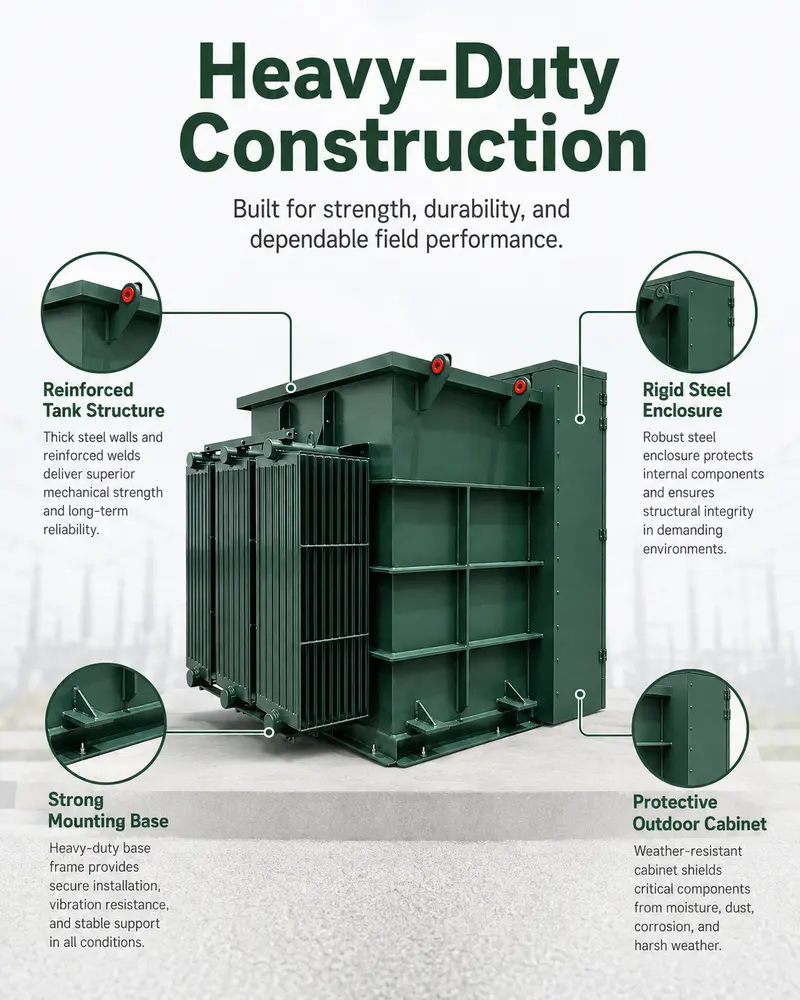

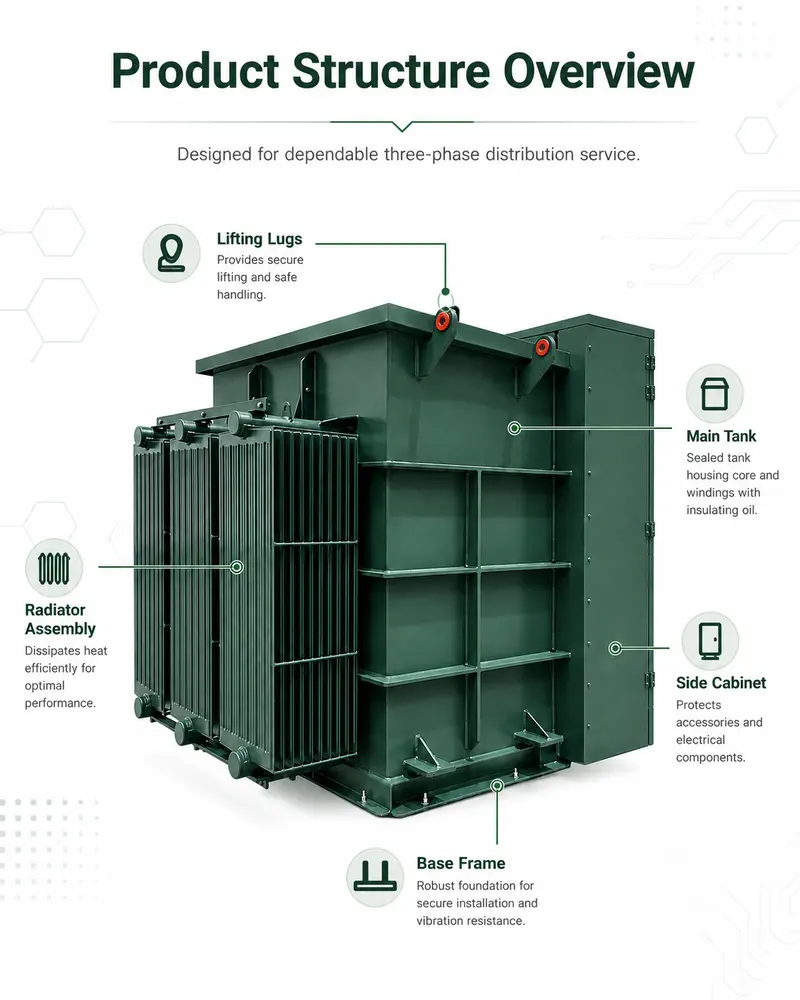

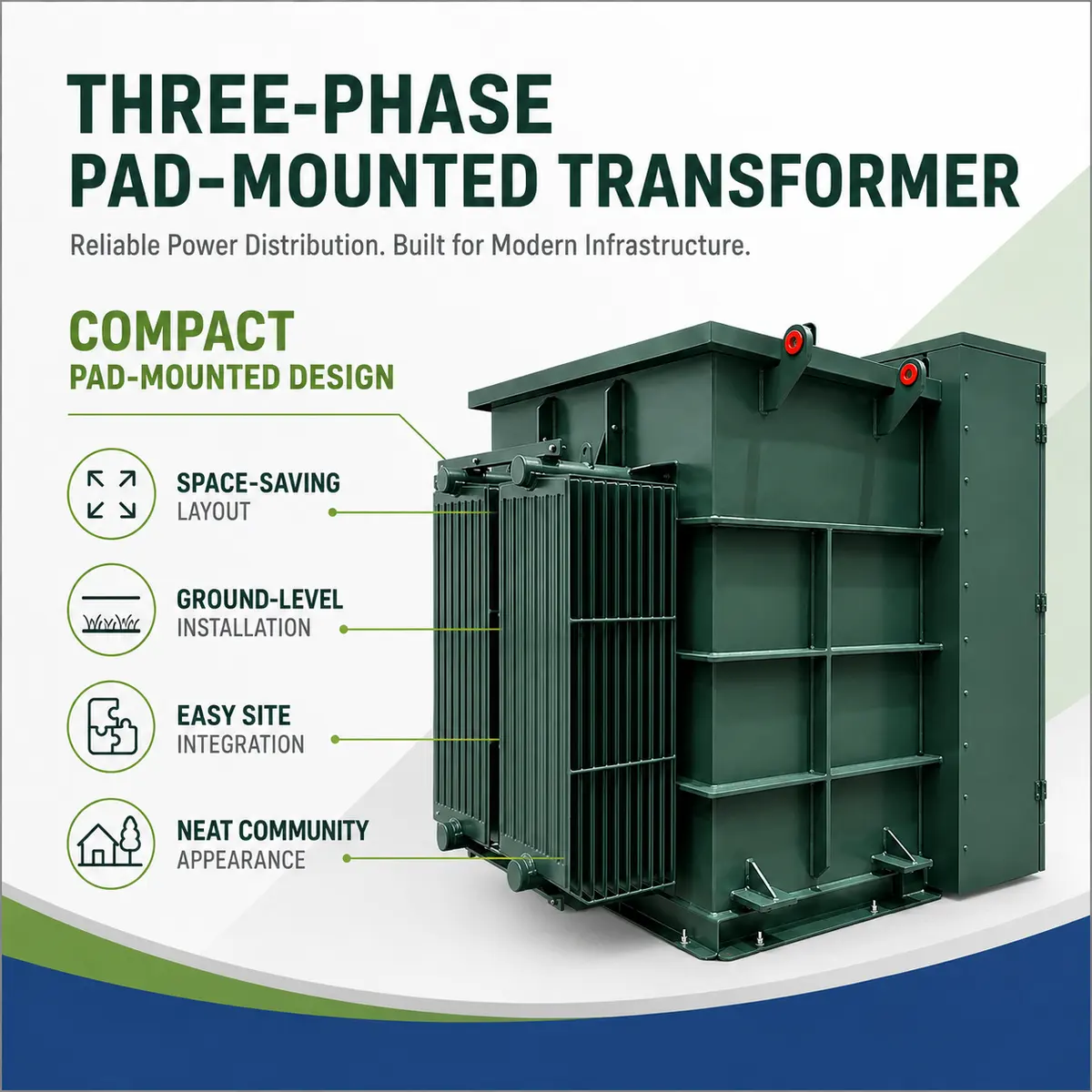

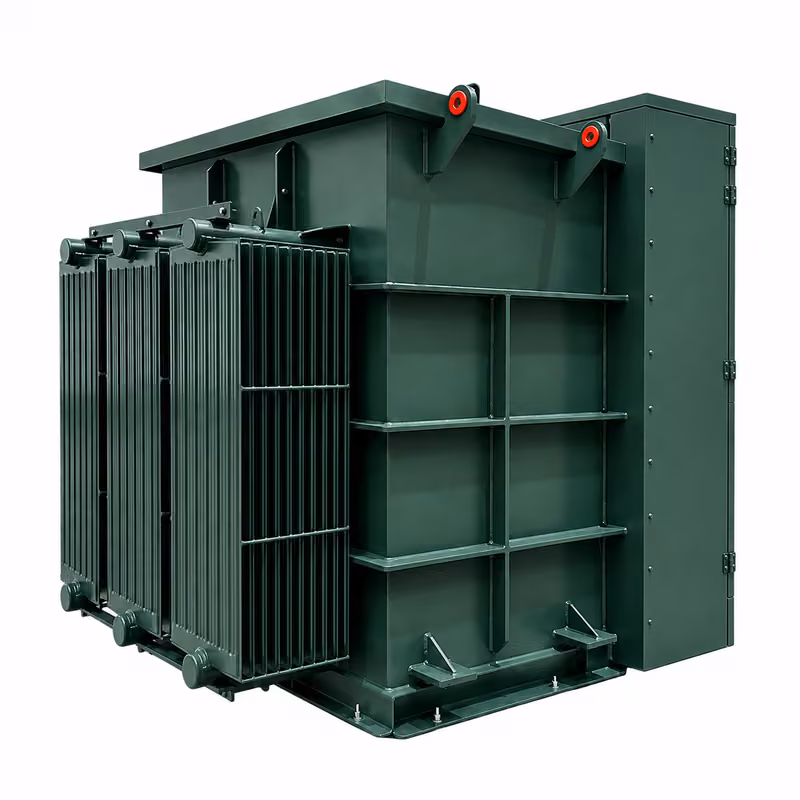

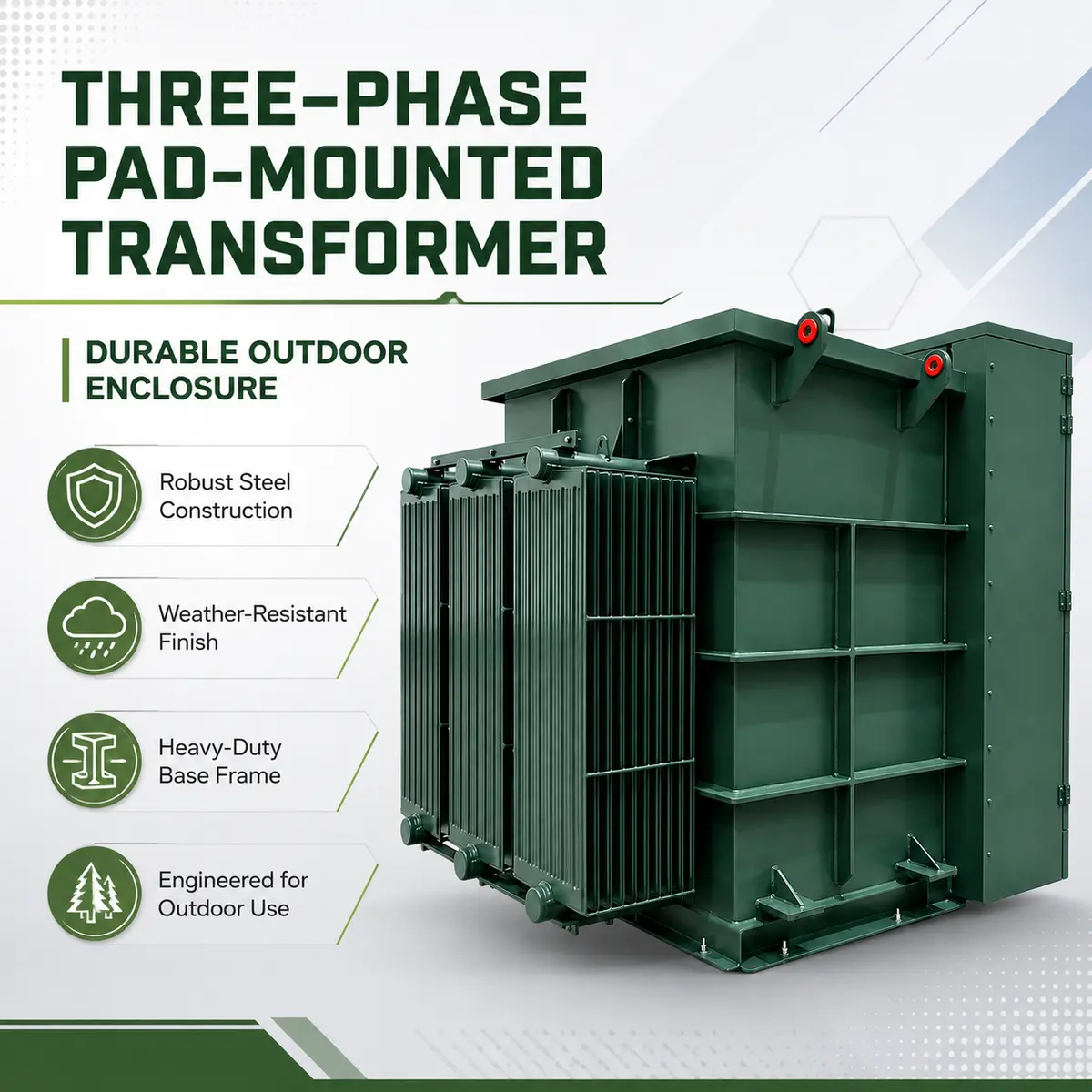

- Compact green metal enclosure integrating tank and terminal cabinet

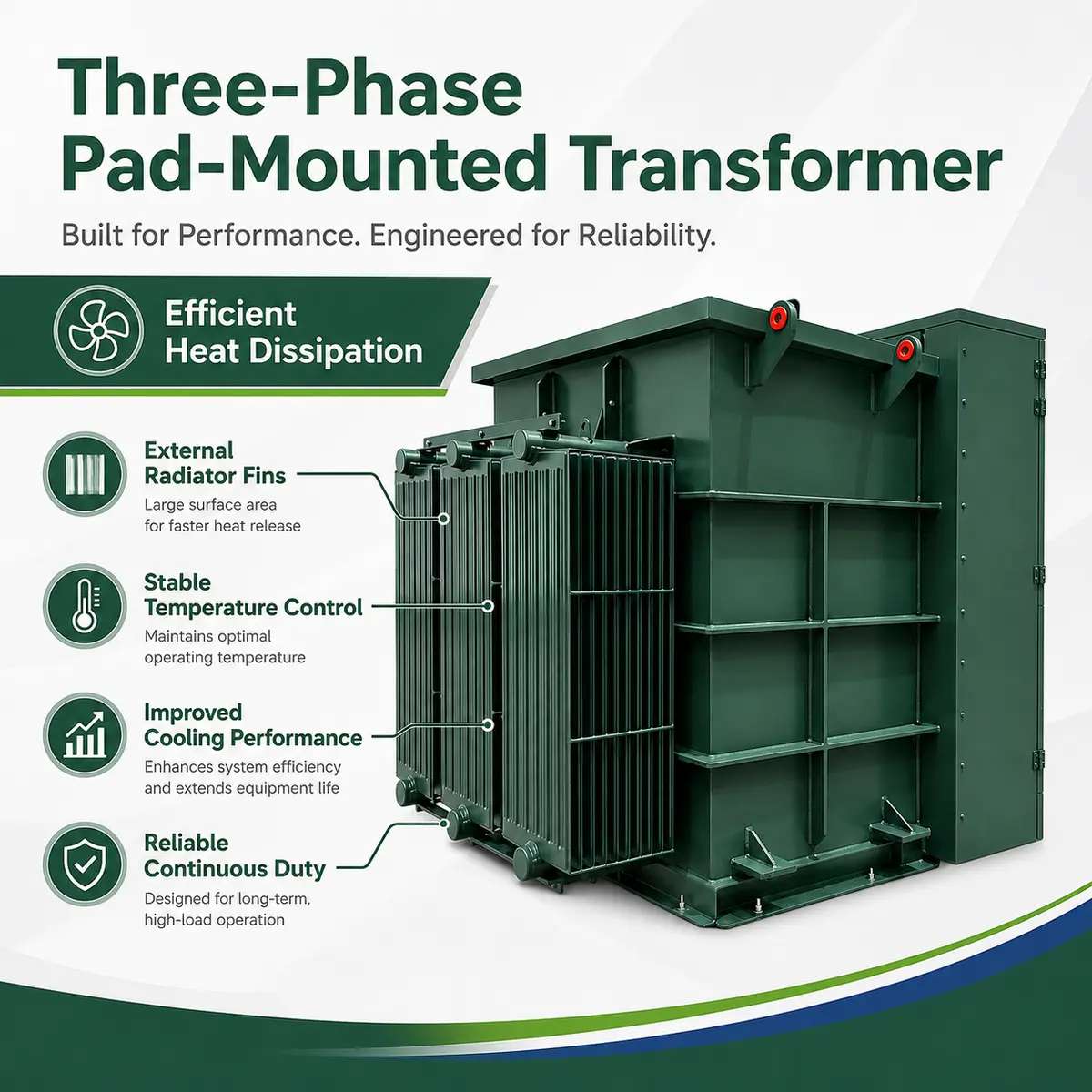

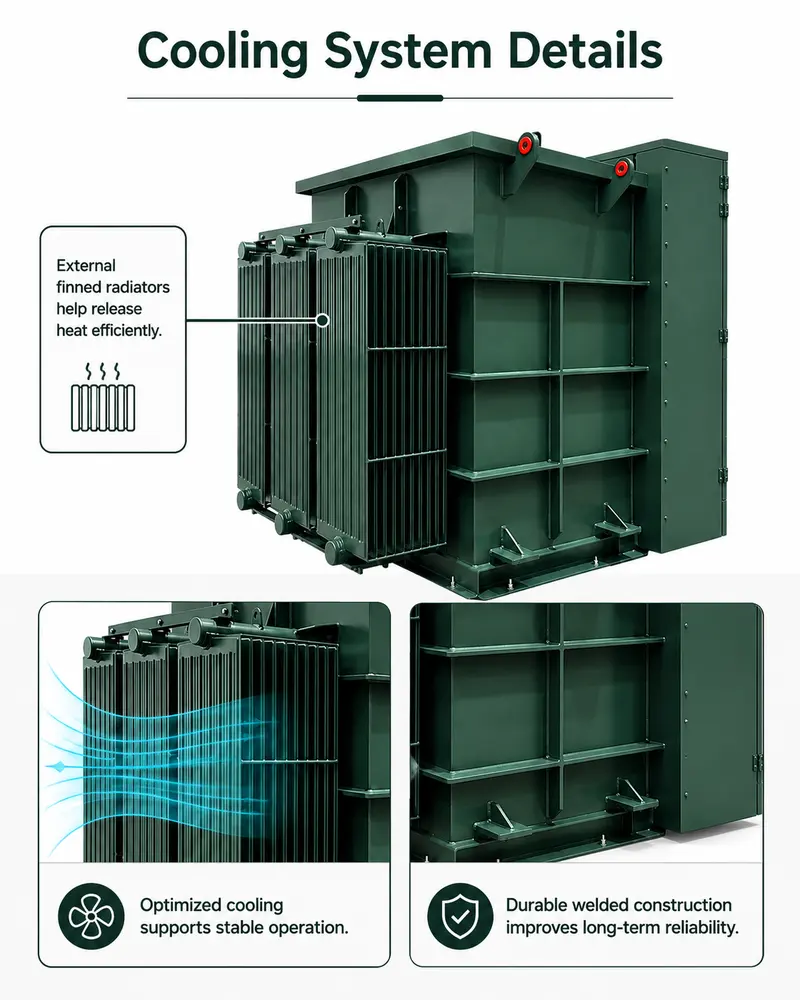

- Rectangular oil tank with corrugated fin radiators
- Front terminal compartment with hinged door and internal barriers
- Loadbreak elbow connections for loop-feed switching
- Liftable lugs and steel base for pad installation
Typical applications

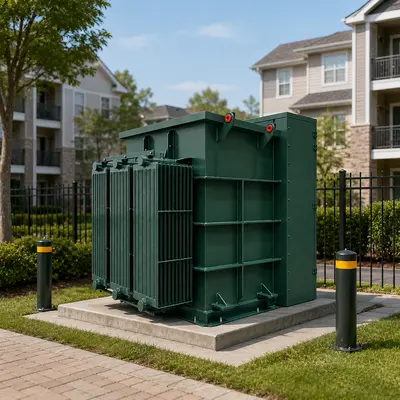

Ideal for commercial developments, industrial parks, utility distribution, and campus power systems requiring compact, ground-mounted three-phase transformation with loop feed.
Customisation options
Capacity, voltage ratio, secondary voltage, feed configuration, enclosure color, and winding material can be tailored to project requirements.
Ordering information
Please confirm rated capacity, primary/secondary voltage, frequency, feed type, and bushing configuration when ordering.
Specifications are based on the supplied product data. Final dimensions, materials, colors, and packaging are subject to the confirmed sample and order confirmation.
Standards and quality
Manufactured under an ISO 9001, ISO 14001 and ISO 45001 certified management system. Designs follow the IEC 60076 / IEC 62271 series as applicable, with ANSI/IEEE, GB and GOST variants available. Every unit passes routine testing before dispatch; type tests and customer or third-party witnessed factory acceptance tests can be arranged.
Frequently asked questions
What is the rated capacity of the 1500kVA Three-Phase Pad-Mounted Transformer (13.8kV to 400/230V, Loop Feed)?
The standard configuration is rated 1500 kVA at 50 / 60 Hz. Other ratings in the same family can be built to order — tell us the load and we will confirm the nearest standard rating.
What voltage ratio is available?
The standard unit is 13.8 kV / 34.5 kV input to 400V / 230V (415/440/480V optional) output. Voltage ratio, tapping range and vector group can be adjusted to your network; 50 Hz and 60 Hz designs are available.
Which standards and certifications apply?
The product is designed to IEC 60076, UL, CE. MARS operates an ISO 9001 / 14001 / 45001 certified factory and holds CE (ECM), UDEM, EAC and CQC approvals; every unit is routine-tested before dispatch and type or witnessed tests can be arranged.
Can this product be customised?
Capacity, voltage ratio, secondary voltage, feed configuration, enclosure color, and winding material can be tailored to project requirements.
What is the lead time and how is it shipped?
Typical lead time is 25–45 days after drawing approval for distribution equipment and 60–90 days for power transformers and containerised systems. Shipment is by sea from Shanghai on EXW, FOB, CIF or DAP terms with a full document pack.
Enquire about this product
Tell us the rating, voltage ratio, frequency, quantity and destination. A MARS engineer replies with a technical proposal and quotation within one working day.
