Technical specifications
| Parameter | Value |
|---|---|
| Product Type | Integrated Liquid-Cooled Energy Storage Cabinet |

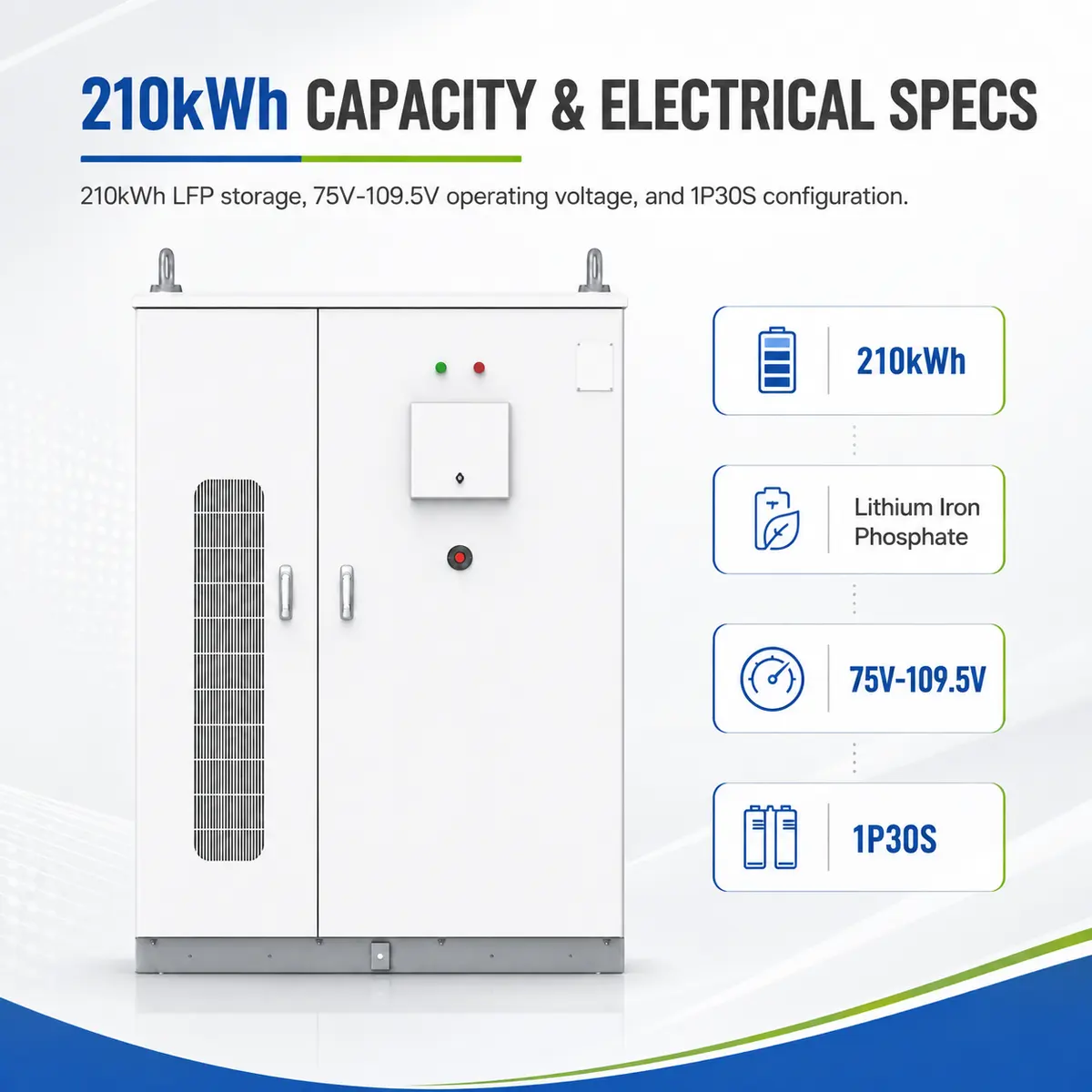

| Energy Capacity | 210 kWh |
| Battery Type | Lithium-Ion (LFP) |
| Output Power Range | Above 50 kWh |
| System Type | Rack-Mounted |
| Working Voltage Range | 75 V – 109.5 V |
| Configuration | 1P30S |
| Grid Connection | Off-Grid |
| Communication | CAN, RS485, Ethernet |

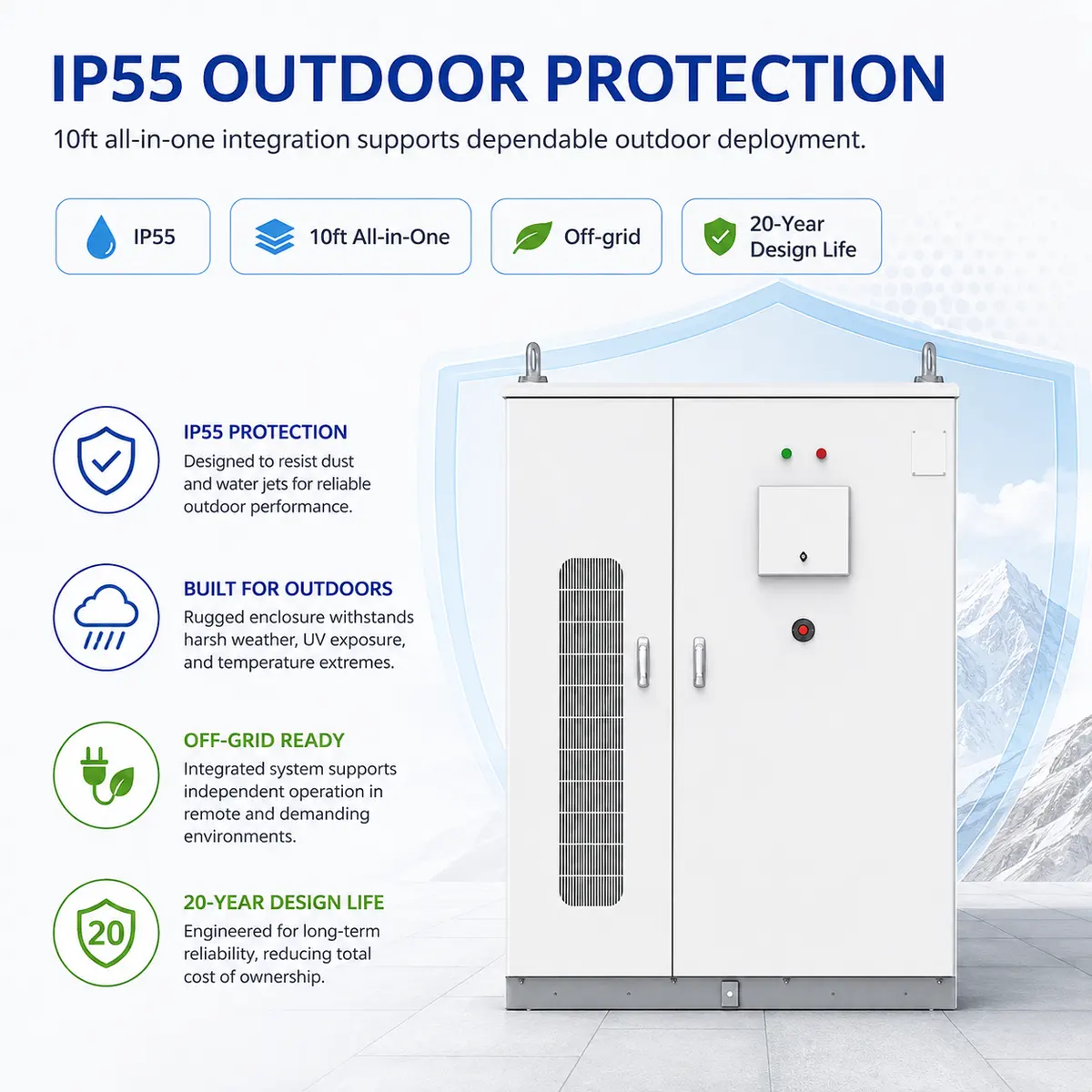

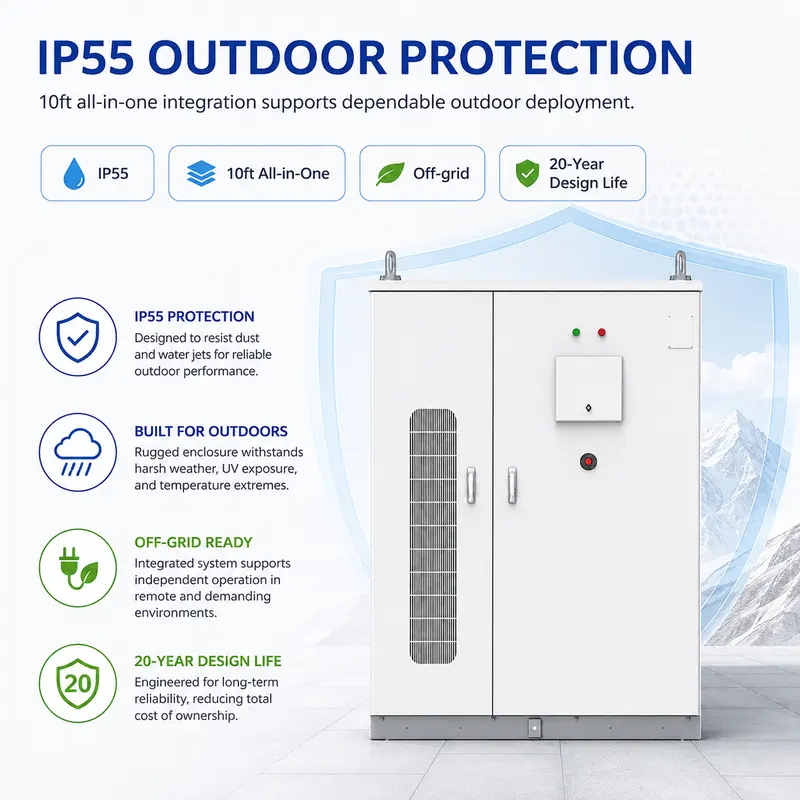

| Protection Class | IP55 |

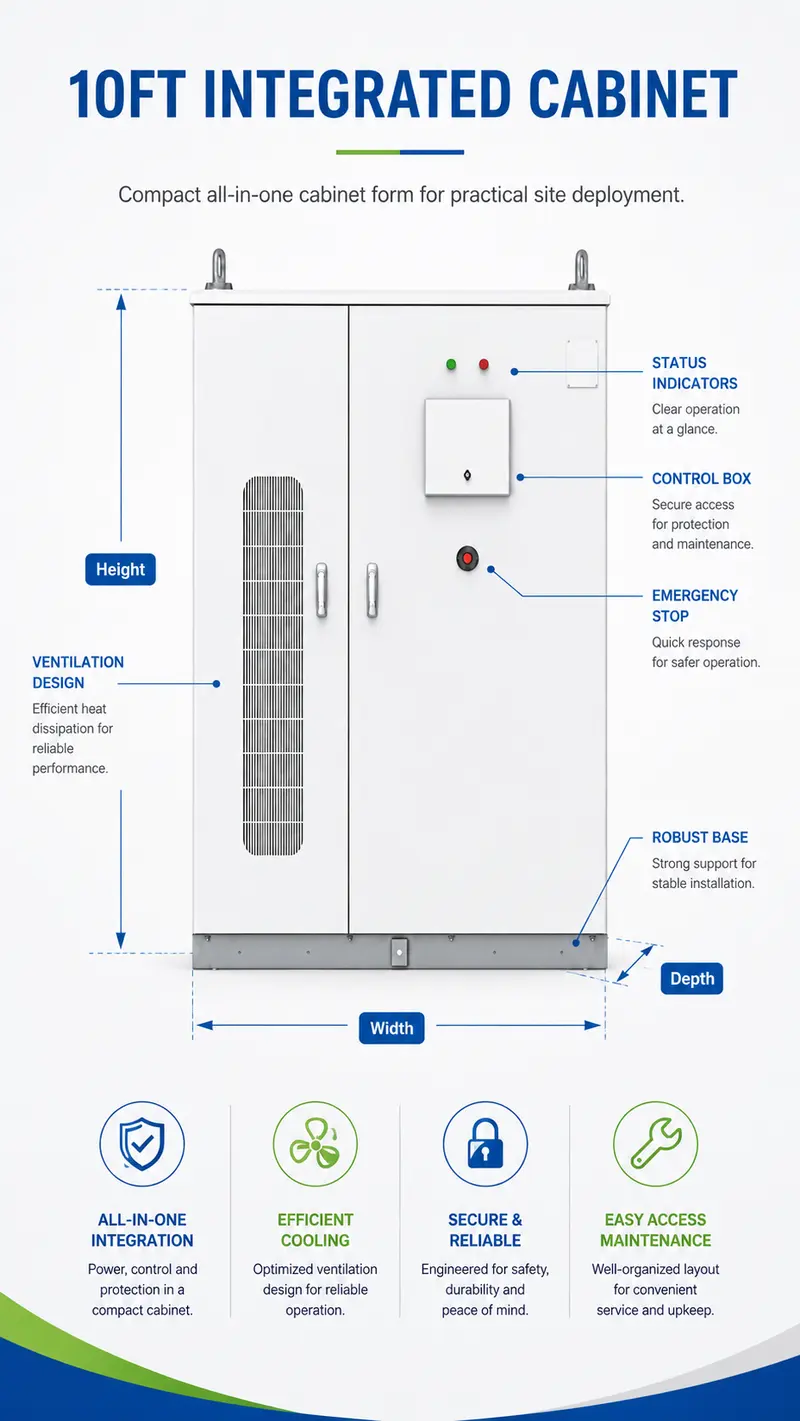

| Dimensions (L×W×H) | 1325 × 1306 × 2315 mm |
| Weight | 2500 kg |
| Power Source | Solar Panel |
Specifications are based on the standard configuration. Final ratings, dimensions, materials and packaging are confirmed on the approved drawing and order confirmation.
Features and construction

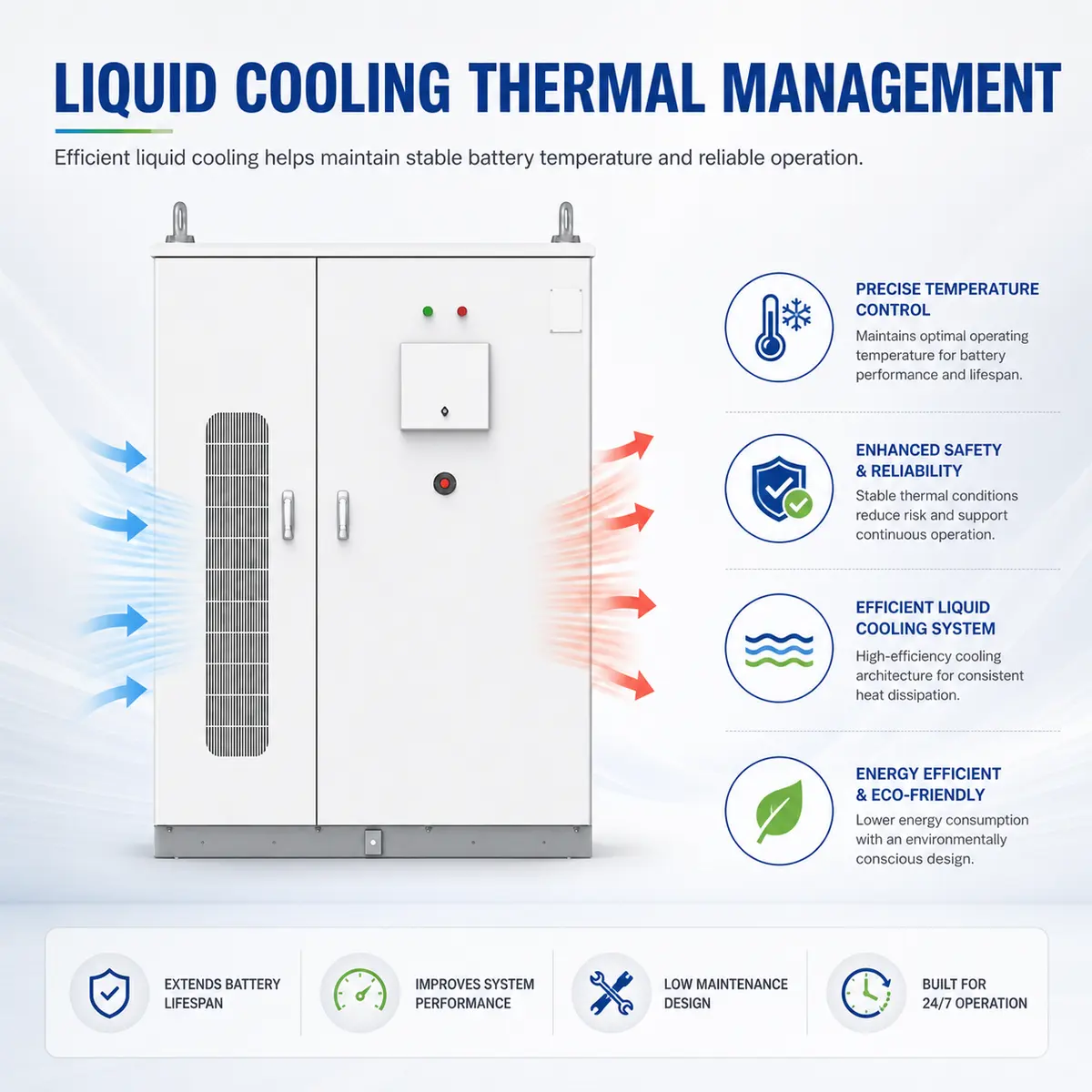

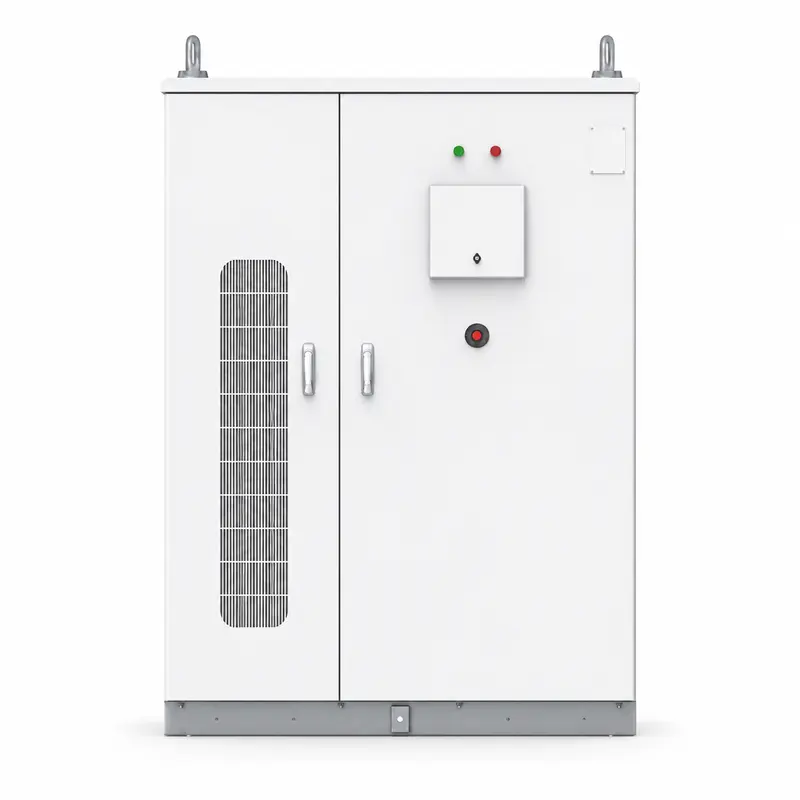

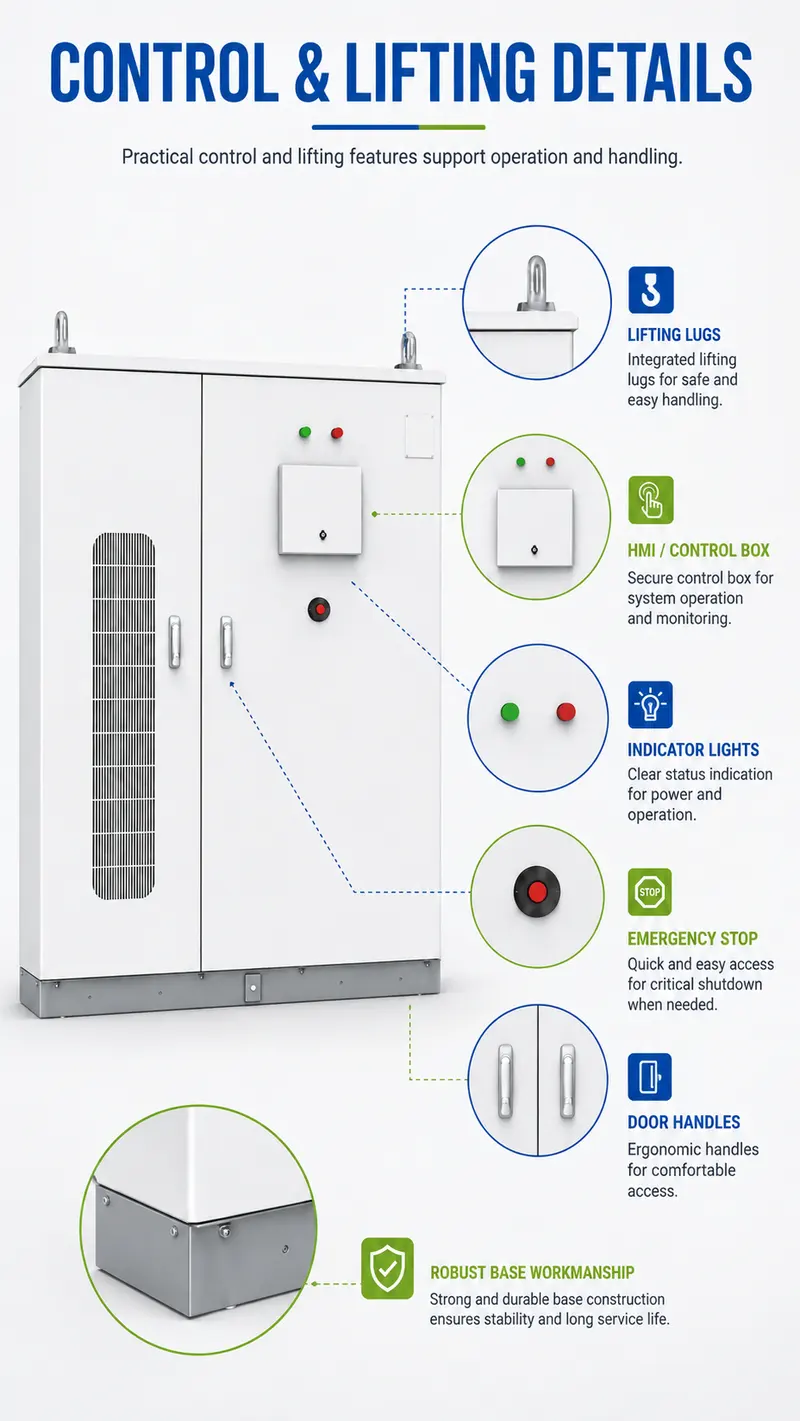

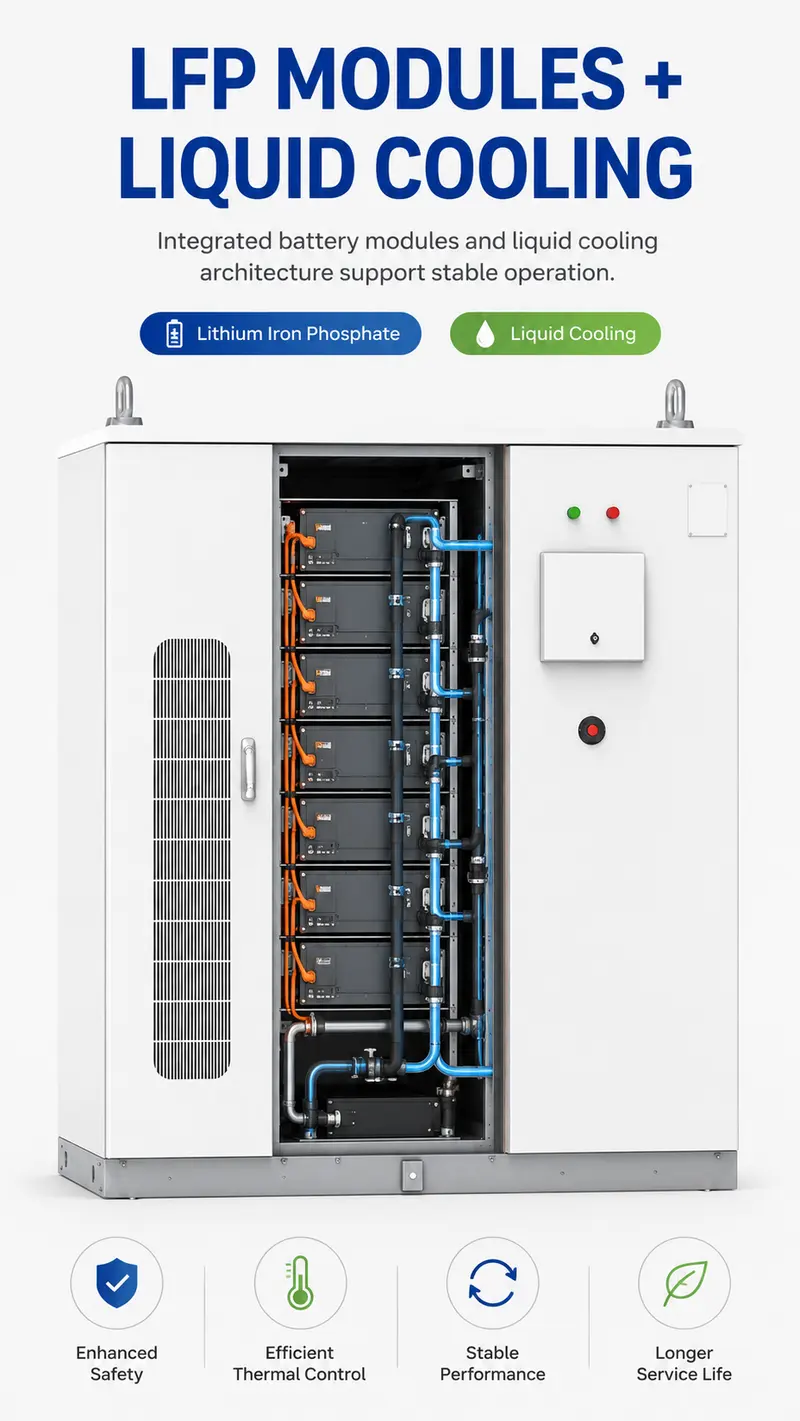

The double-door cabinet houses modular battery racks cooled by an integrated liquid-cooling loop, with a front control/HMI panel, status indicators and an emergency stop. A side ventilation grille and top lifting lugs simplify installation and servicing. The BMS communicates over CAN/RS485/Ethernet for seamless integration with energy management systems.
Typical applications

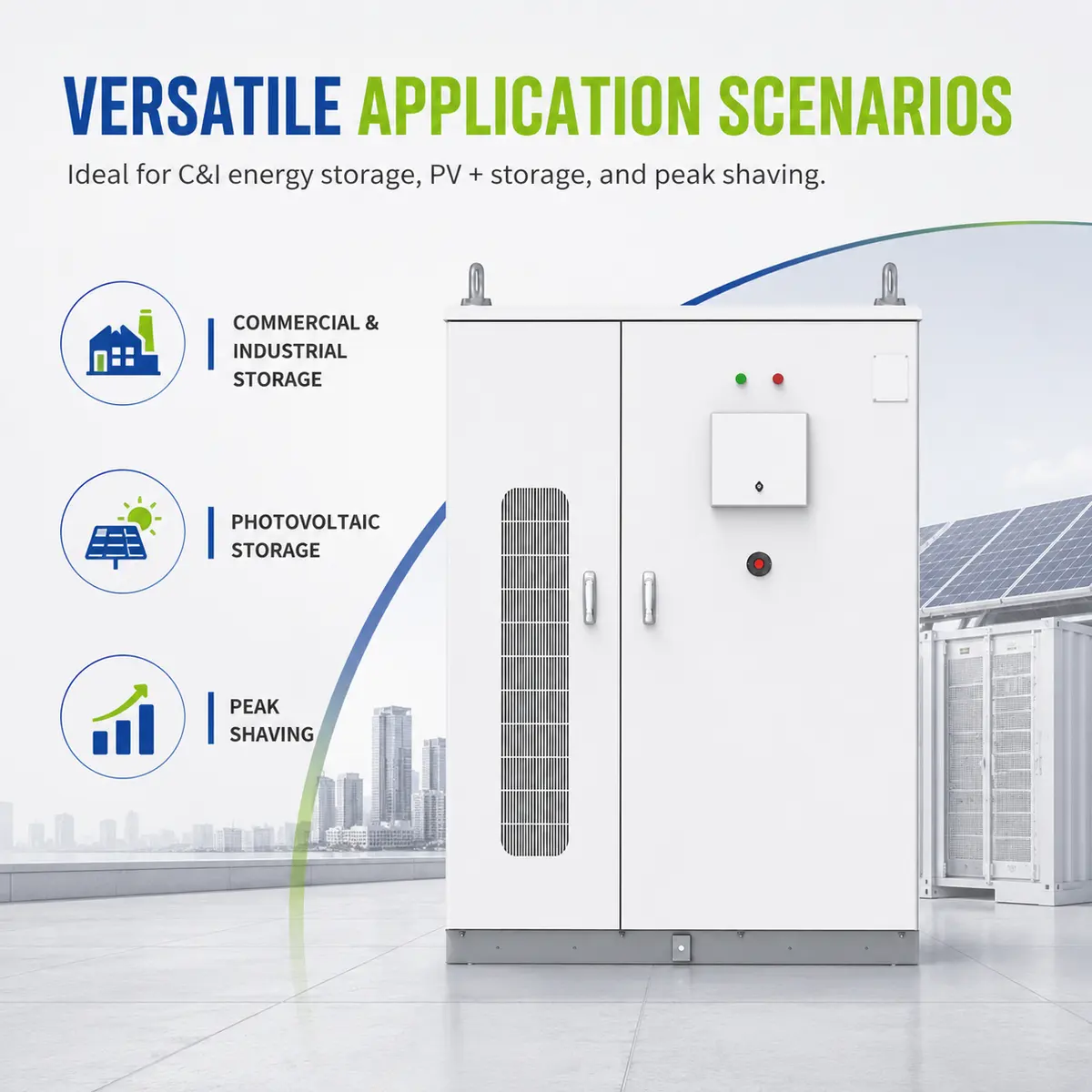

Commercial and industrial energy storage, solar-plus-storage, peak shaving and load shifting, microgrids, EV-charging support and off-grid power for factories, campuses and remote sites.
Customisation options
Capacity, configuration, grid connection (on/off-grid), communication protocol and enclosure options can be customized to project requirements.
Ordering information
- Selling Unit: Single item
- Packing: 1325 × 1306 × 2315 cm crate, 2500 kg gross
- Protection: IP55
Specifications are based on the supplied product data. Final dimensions, materials, colors, and packaging are subject to the confirmed sample and order confirmation.
Standards and quality
Manufactured under an ISO 9001, ISO 14001 and ISO 45001 certified management system. Designs follow the IEC 60076 / IEC 62271 series as applicable, with ANSI/IEEE, GB and GOST variants available. Every unit passes routine testing before dispatch; type tests and customer or third-party witnessed factory acceptance tests can be arranged.
Frequently asked questions
Which standards and certifications apply?
MARS operates an ISO 9001 / 14001 / 45001 certified factory and holds CE (ECM), UDEM, EAC and CQC approvals; every unit is routine-tested before dispatch and type or witnessed tests can be arranged.
Can this product be customised?
Capacity, configuration, grid connection (on/off-grid), communication protocol and enclosure options can be customized to project requirements.
What is the lead time and how is it shipped?
Typical lead time is 25–45 days after drawing approval for distribution equipment and 60–90 days for power transformers and containerised systems. Shipment is by sea from Shanghai on EXW, FOB, CIF or DAP terms with a full document pack.
Enquire about this product
Tell us the rating, voltage ratio, frequency, quantity and destination. A MARS engineer replies with a technical proposal and quotation within one working day.
