Technical specifications

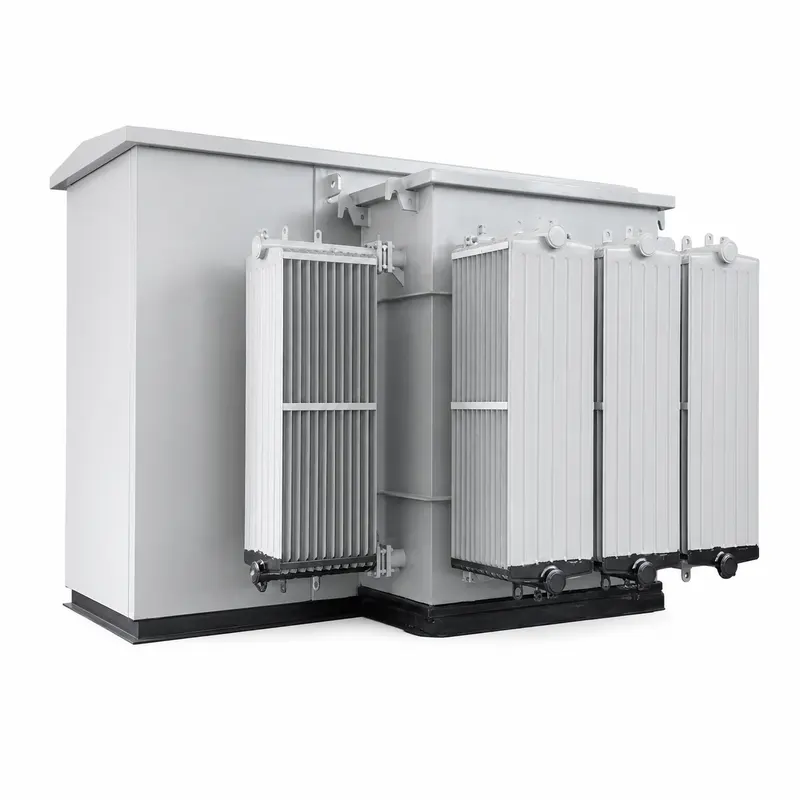

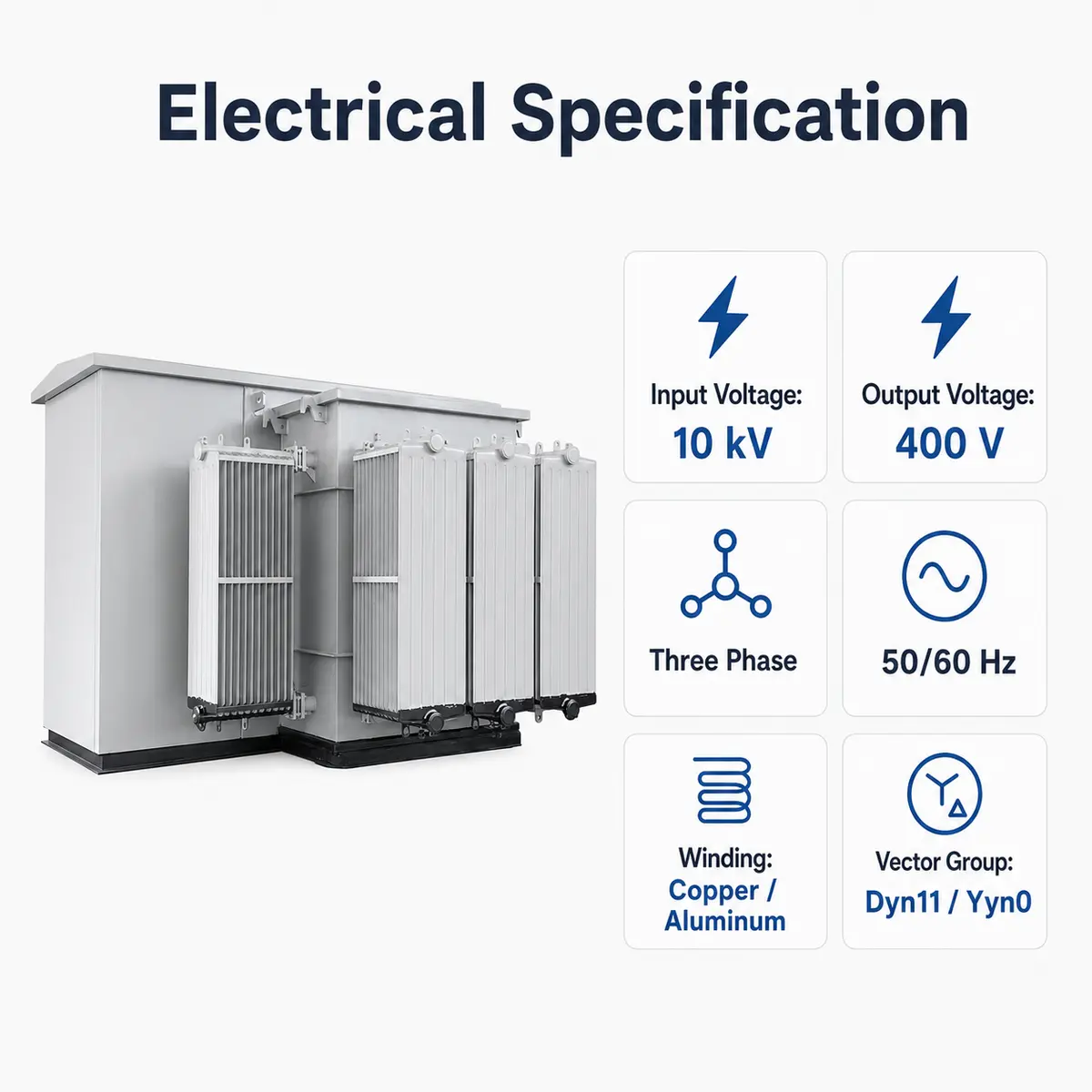

| Parameter | Value |
|---|---|
| Type | Wind / Photovoltaic Box Substation |
| Transformer | Oil-Immersed |
| Input Voltage | 10 kV |
| Output Voltage | 400 V |
| Phase | Three Phase |
| Frequency | 50 / 60 Hz |
| Winding Material | Copper / Aluminium |
| Vector Group | Dyn11 / Yyn0 |
| Standard | IEC / GB |
| Certification | ISO9001 |
| Warranty | 2 Years |
| Packaging | Wooden Case |

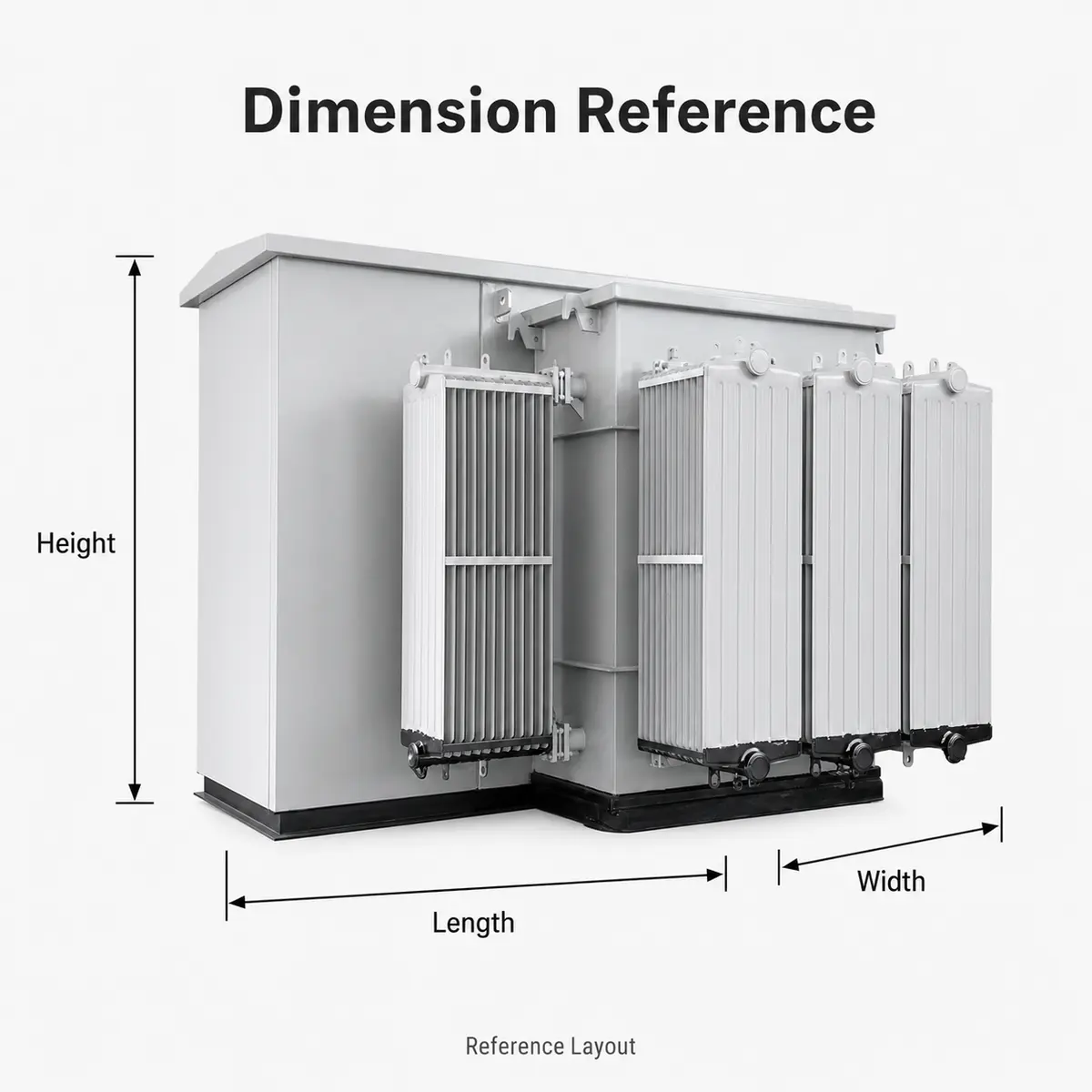

Specifications are based on the standard configuration. Final ratings, dimensions, materials and packaging are confirmed on the approved drawing and order confirmation.
Features and construction

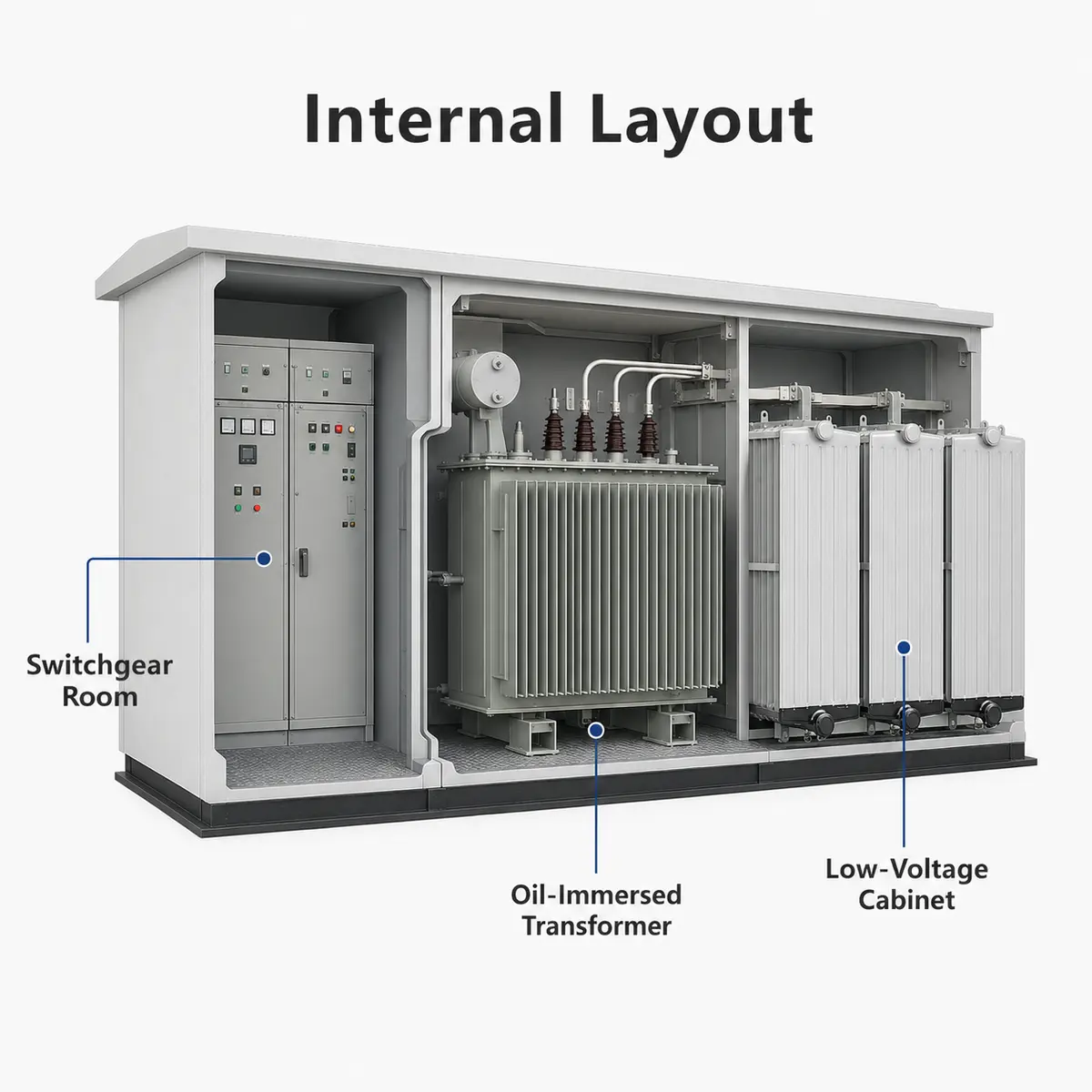

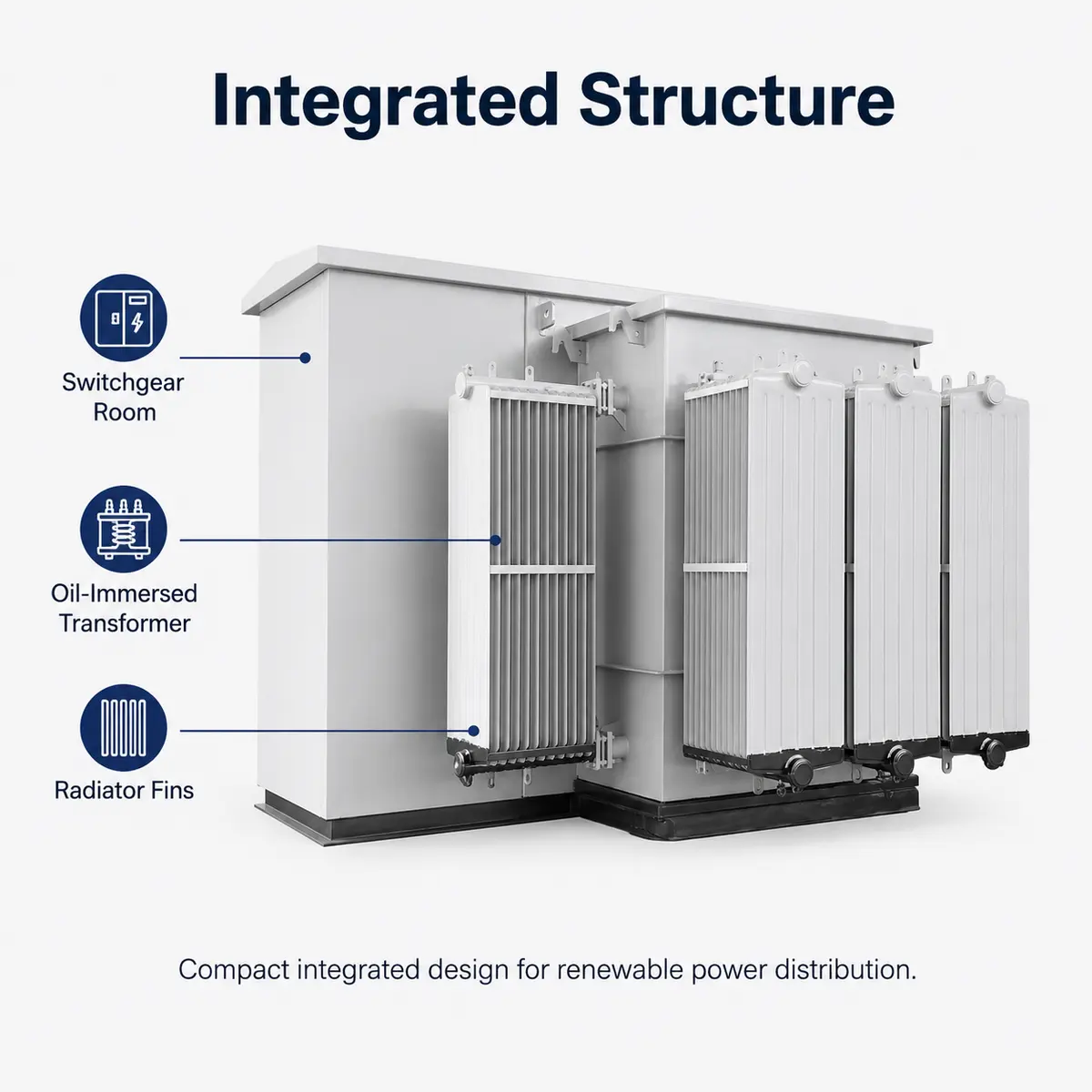

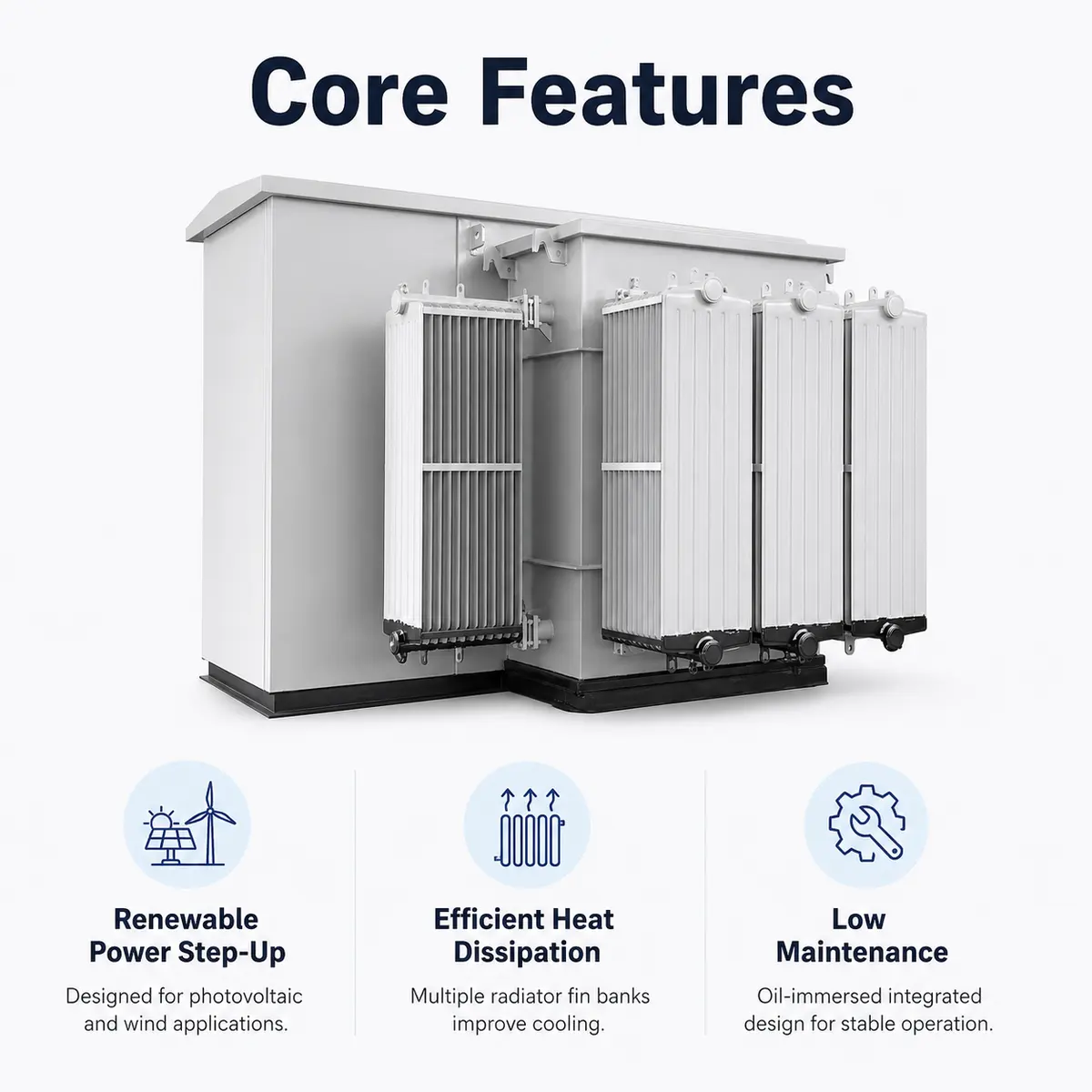

- Combined layout: enclosed switchgear/distribution room plus exposed oil transformer

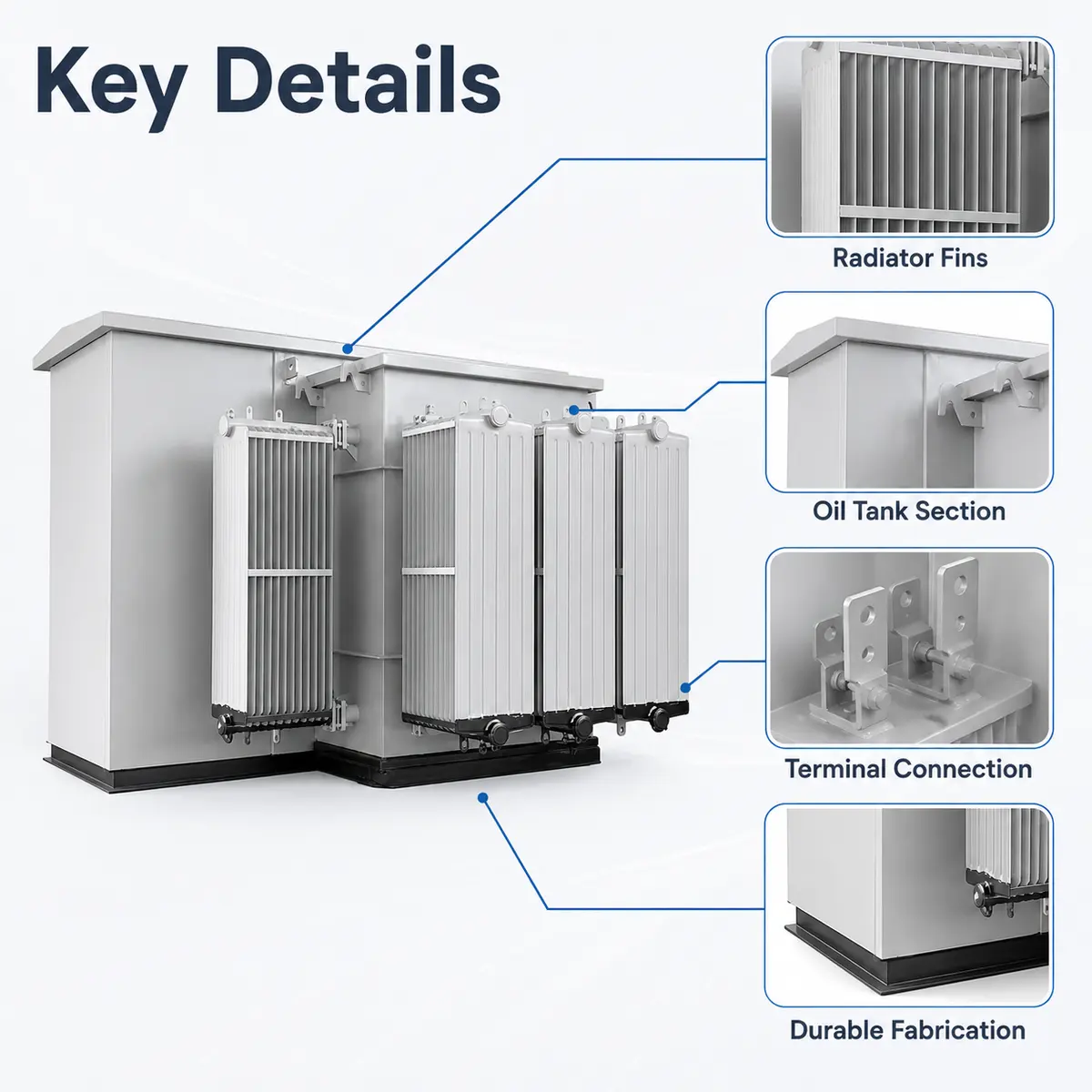

- Multiple corrugated radiator-fin panels for high-efficiency heat dissipation
- Sheet-steel enclosure with overhanging roof on a rigid base frame
- Optimised for photovoltaic, wind and energy-storage step-up duty
Typical applications
Photovoltaic power stations, wind power stations, and new-energy collection and grid-connection projects.
Customisation options
Enclosure colour, capacity, voltage ratio, transformer type, and switchgear scheme available on request.
Ordering information
Built to order per confirmed specifications. Please provide capacity, voltage ratio and application when enquiring.

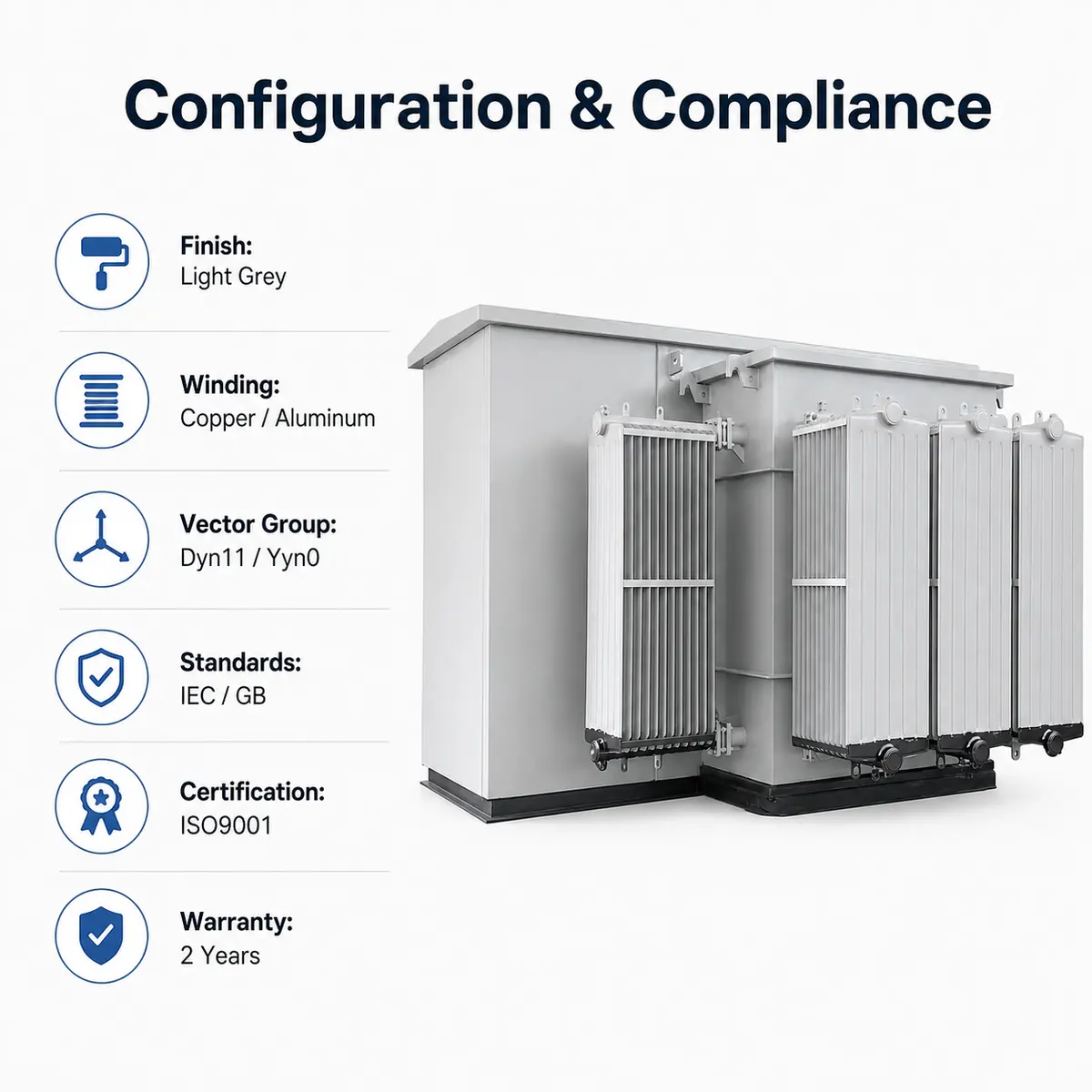

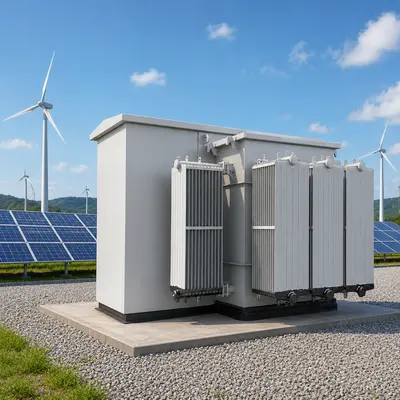

Product images are illustrative renders for marketing reference; final delivered product is built to order per confirmed specifications.
Standards and quality
Manufactured under an ISO 9001, ISO 14001 and ISO 45001 certified management system. Designs follow the IEC 60076 / IEC 62271 series as applicable, with ANSI/IEEE, GB and GOST variants available. Every unit passes routine testing before dispatch; type tests and customer or third-party witnessed factory acceptance tests can be arranged.
