Technical specifications

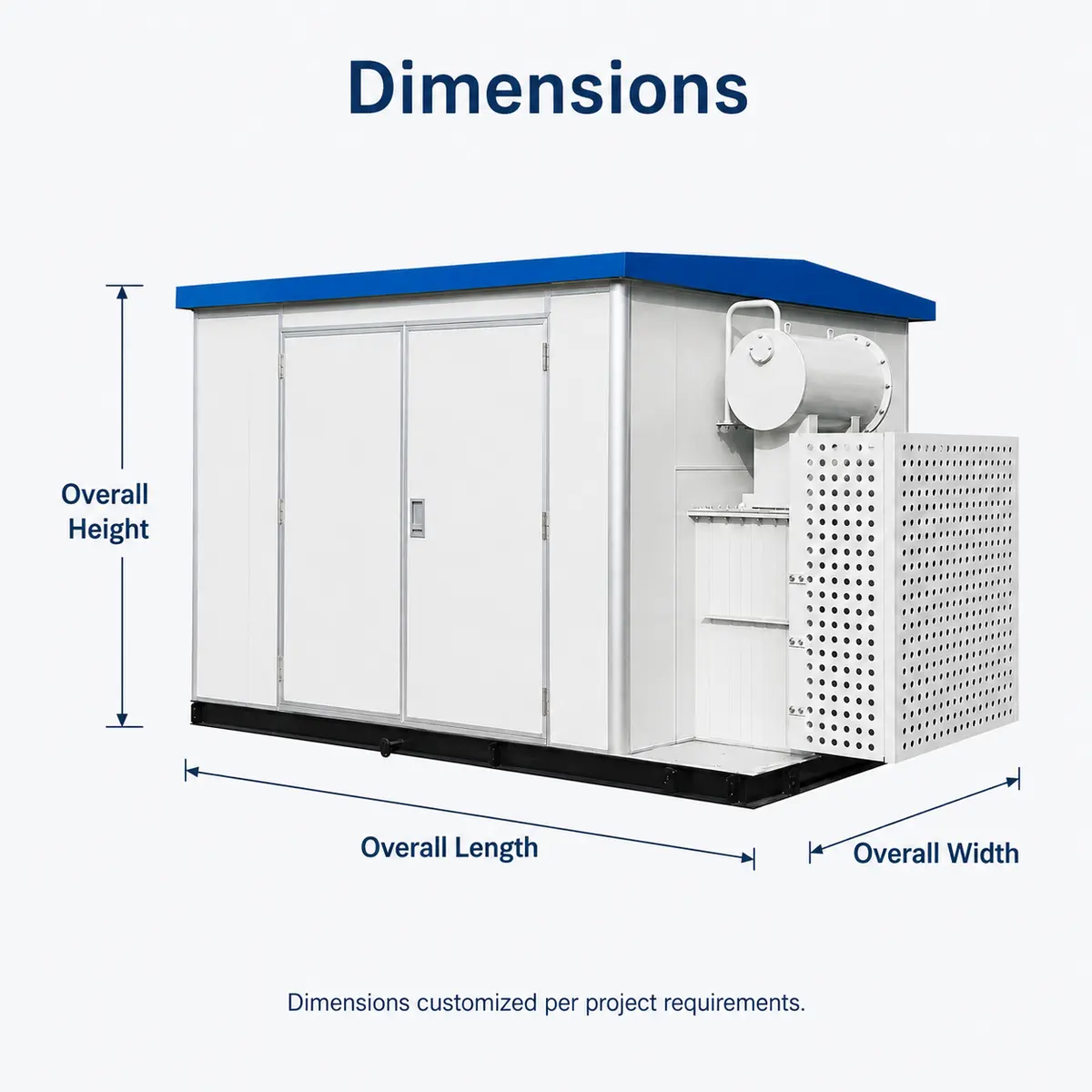

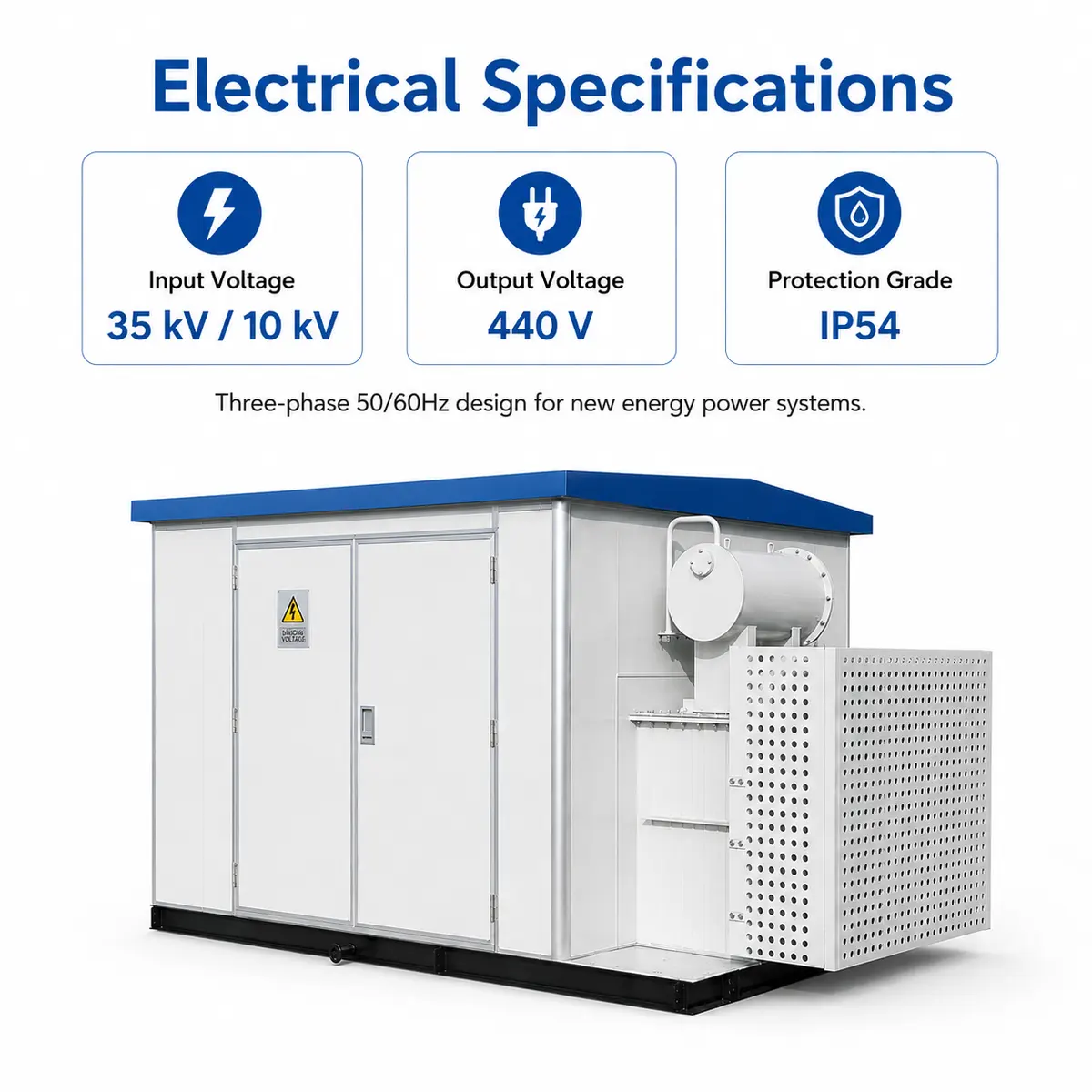

| Parameter | Value |
|---|---|
| Type | Prefabricated Box Substation (New Energy, Europe Type) |
| Transformer | Oil-Immersed |
| Input Voltage | 35 kV / 10 kV |
| Output Voltage | 440 V |
| Protection Class | IP54 |
| Phase | Three Phase |
| Frequency | 50 / 60 Hz |
| Winding Material | Copper / Aluminium |
| Vector Group | Dyn11 / Yyn0 |
| Standard | IEC / GB |
| Certification | ISO9001 |
| Packaging | Wooden Box |
Specifications are based on the standard configuration. Final ratings, dimensions, materials and packaging are confirmed on the approved drawing and order confirmation.
Features and construction

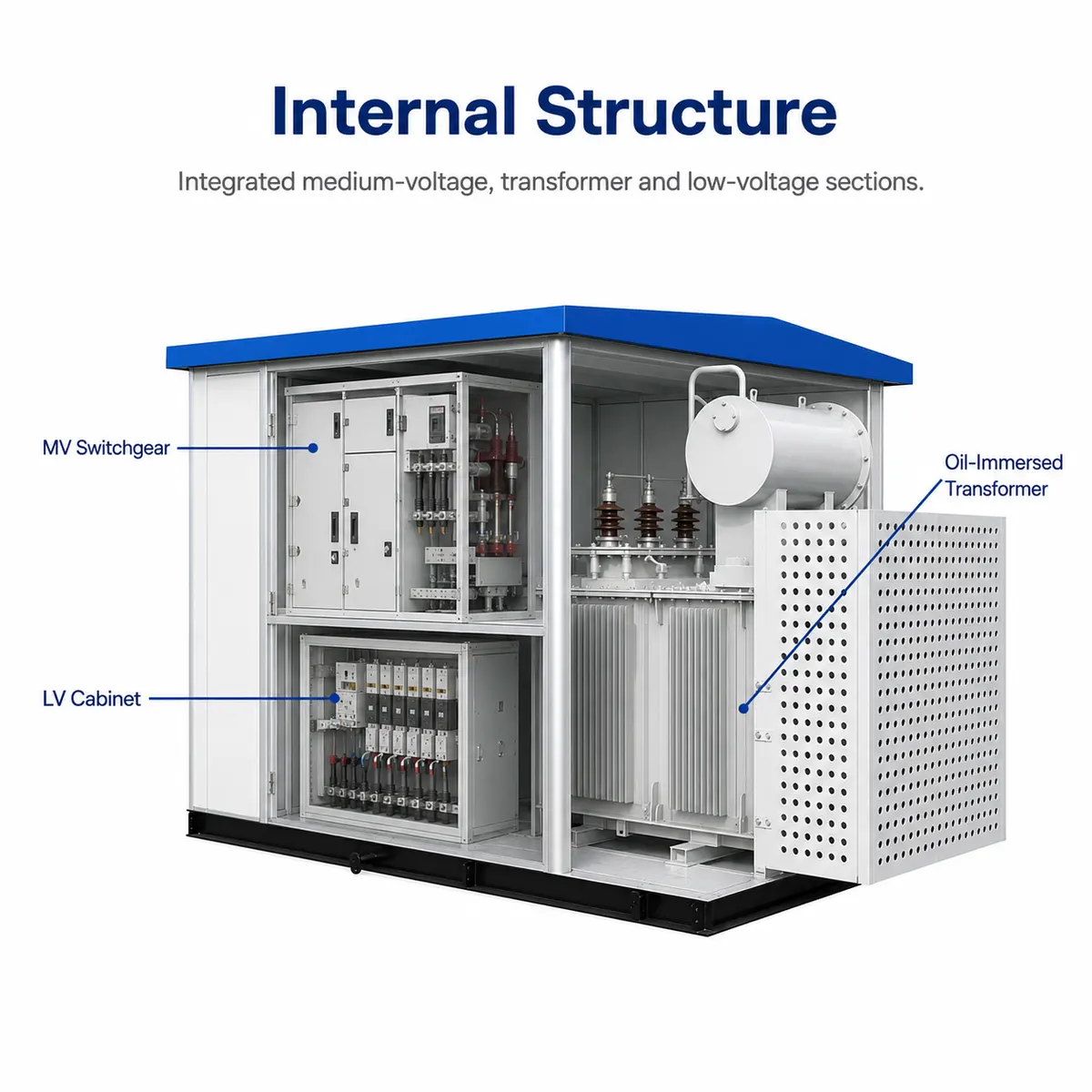

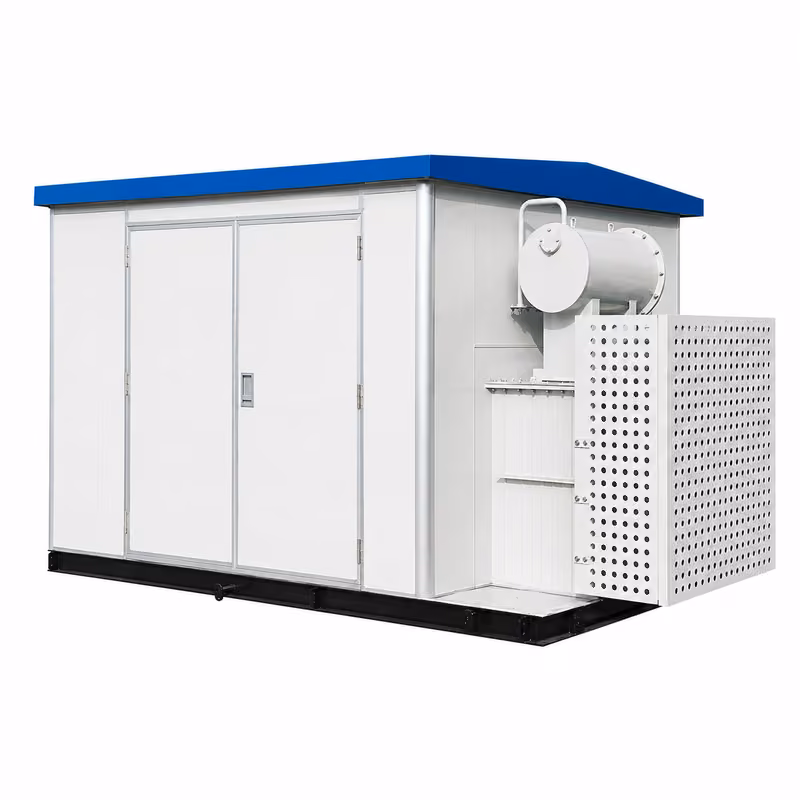

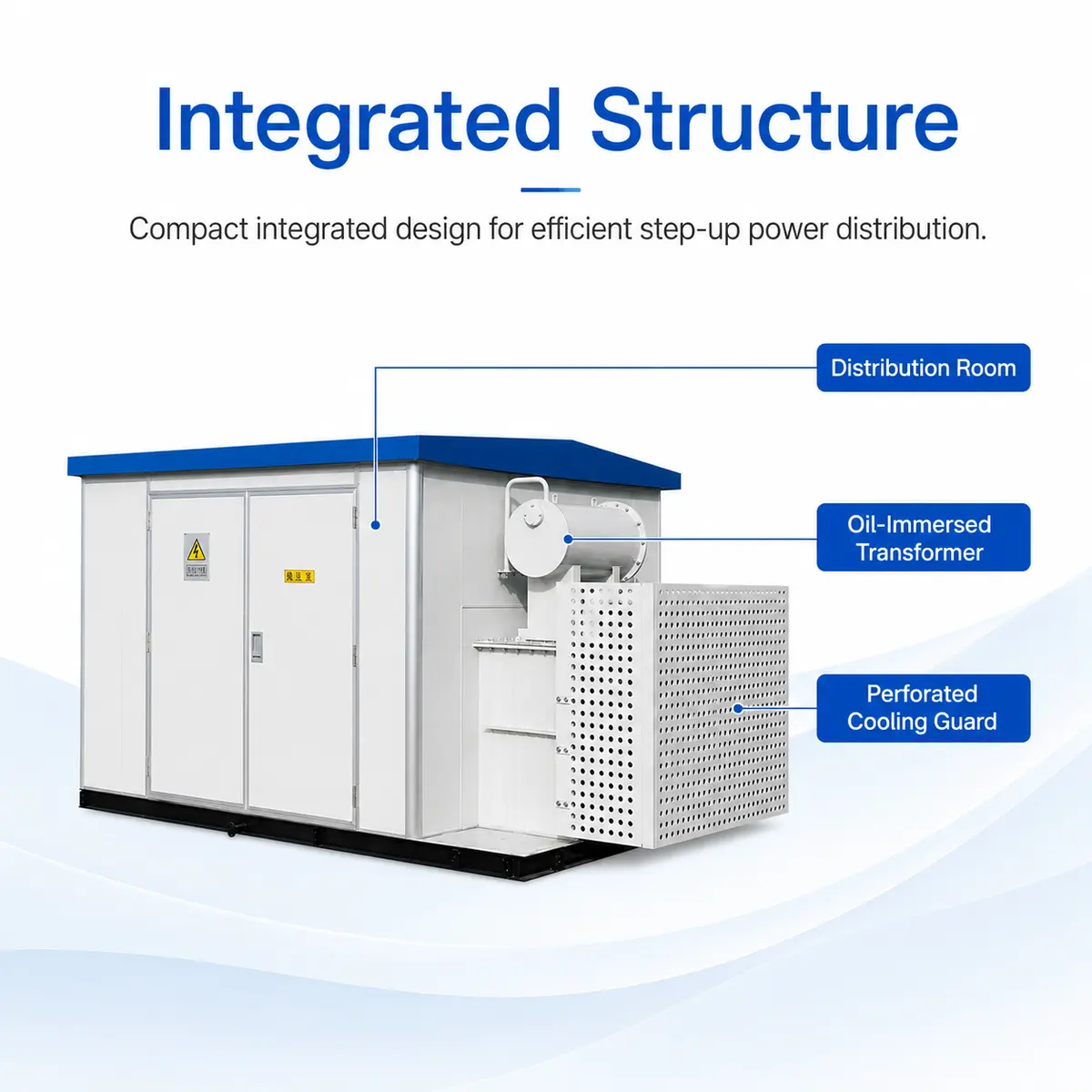

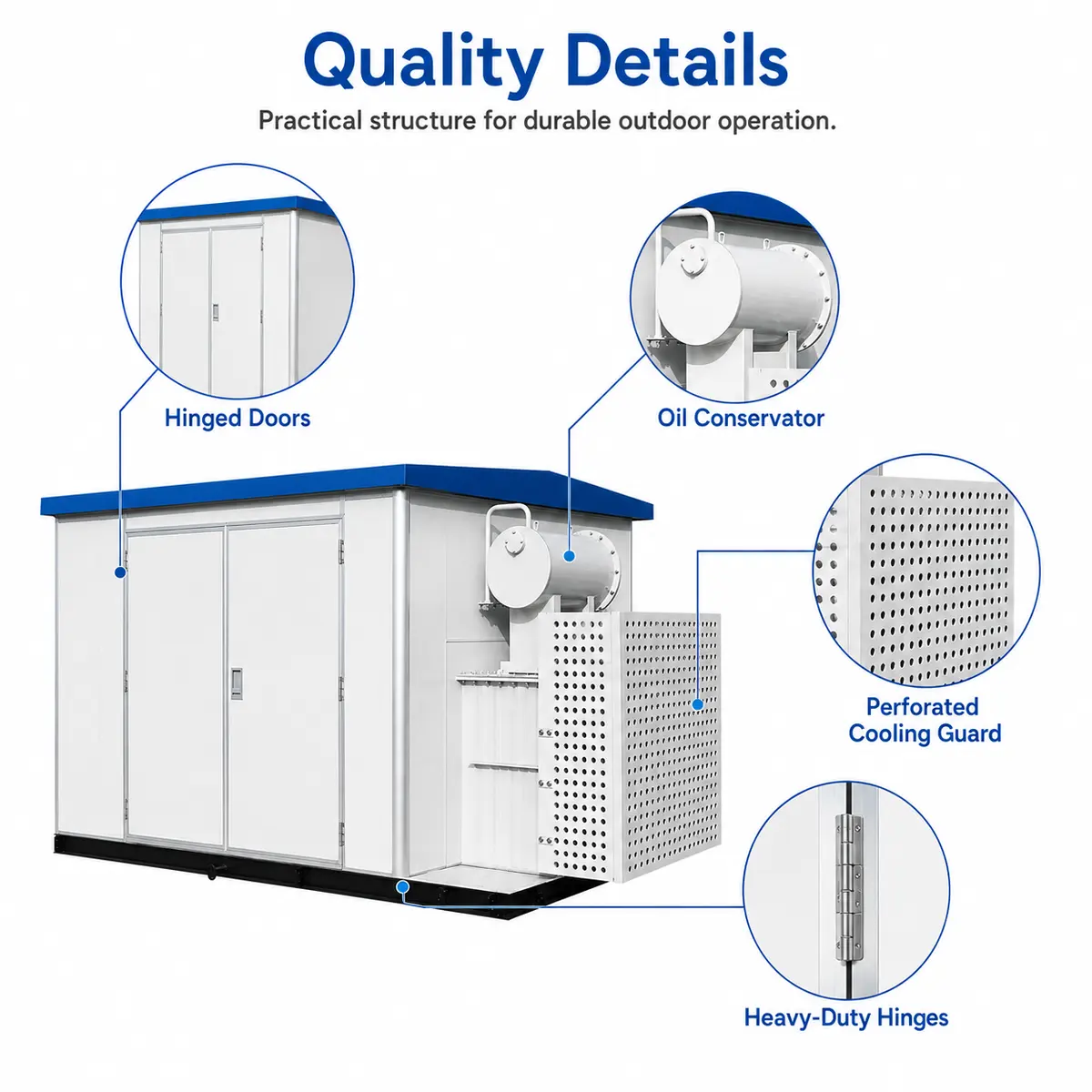

- Combined layout: distribution room plus exposed oil-immersed booster transformer

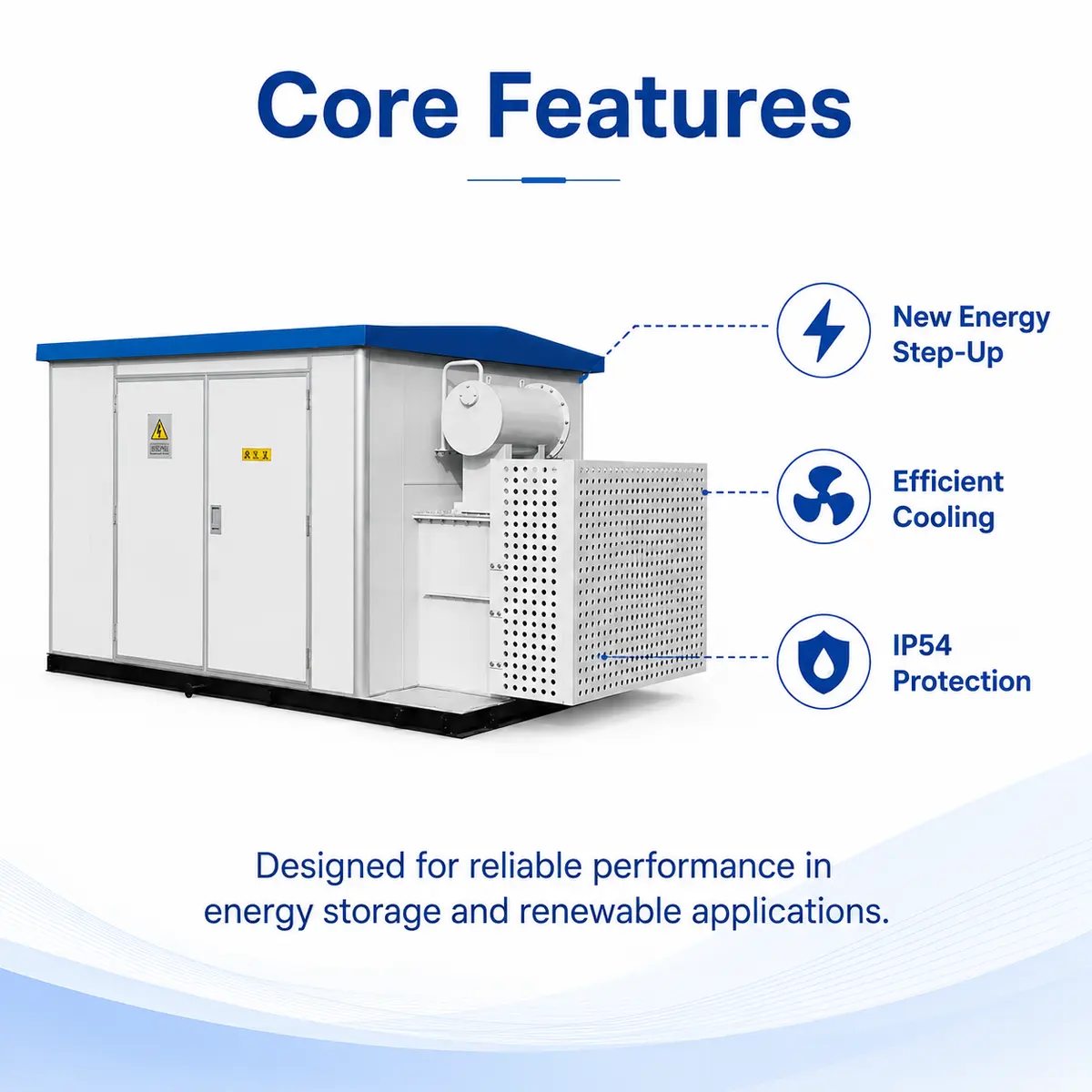

- Oil conservator and perforated cooling panels for effective heat dissipation
- Blue-roofed sheet-steel enclosure with hinged doors on a rigid base

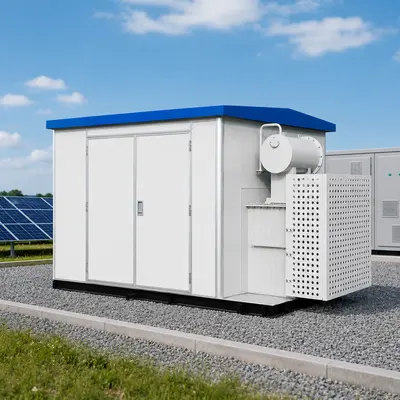

- IP54-rated, customizable for photovoltaic, wind and energy-storage sites
Typical applications
Photovoltaic power stations, wind power stations, and battery energy storage systems requiring new-energy step-up and grid connection.
Customisation options

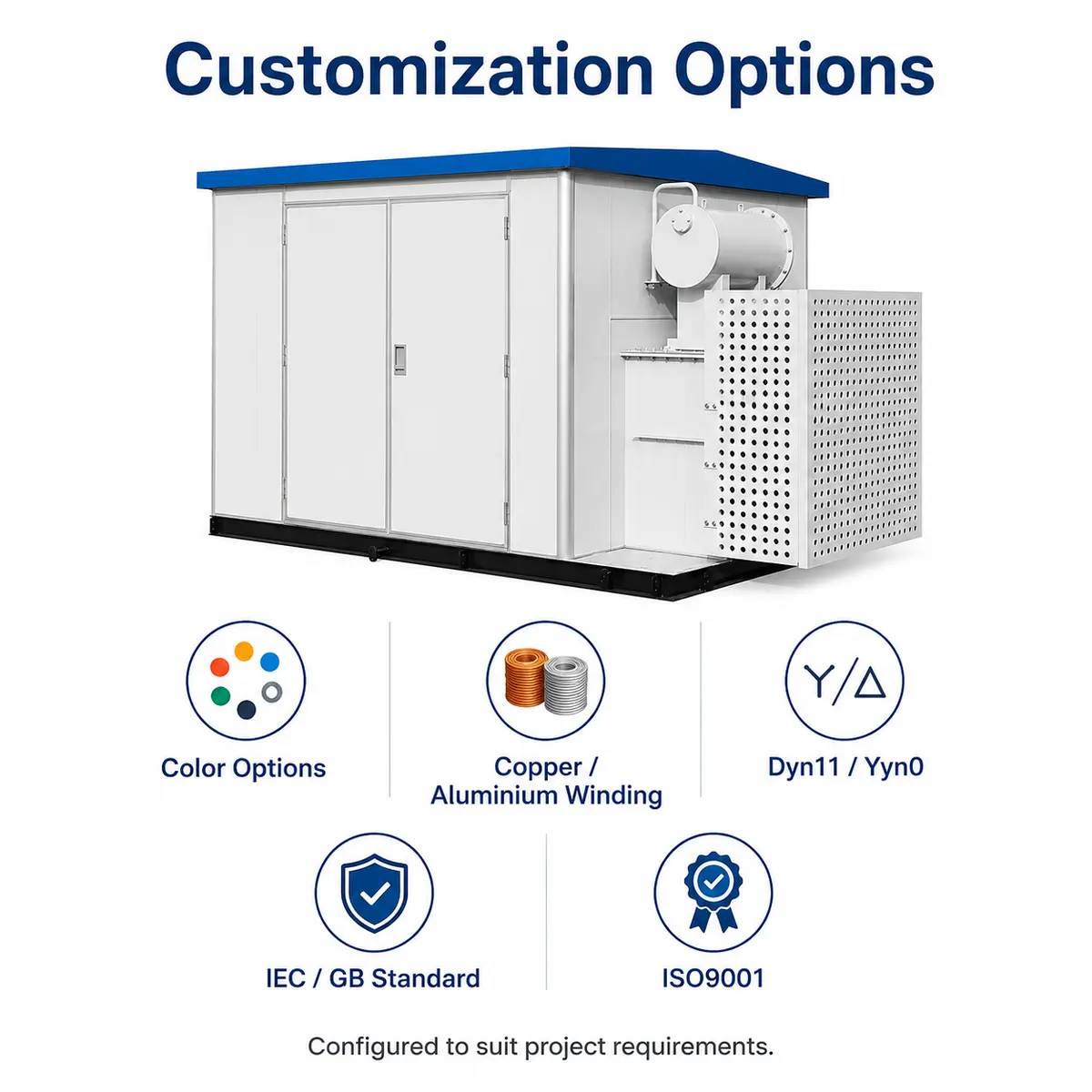

Enclosure colour, capacity, input voltage class, transformer type, and switchgear scheme available on request.
Ordering information
Built to order per confirmed specifications. Please provide capacity, voltage class and application when enquiring.
Product images are illustrative renders for marketing reference; final delivered product is built to order per confirmed specifications.
