Technical specifications

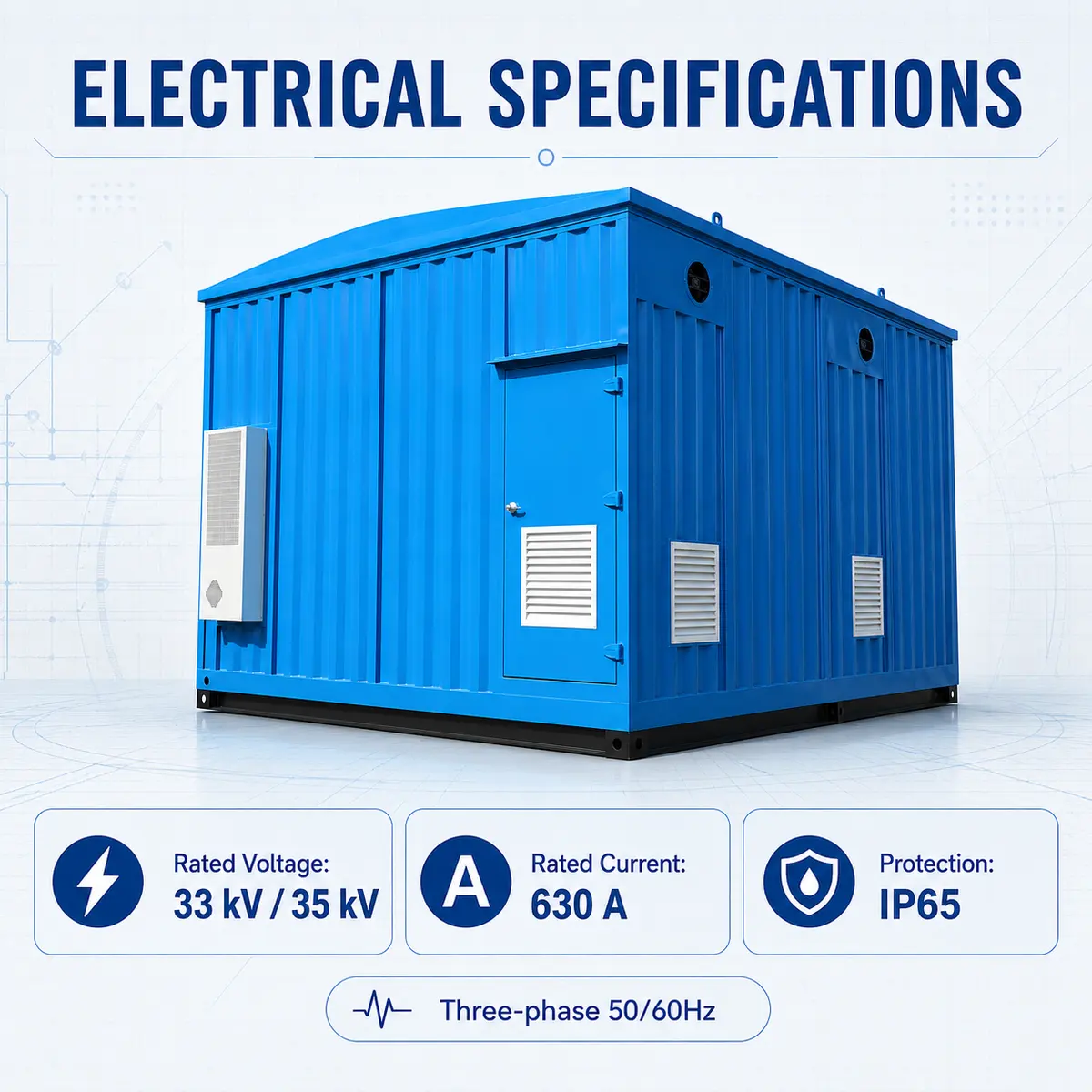

| Parameter | Value |
|---|---|
| Type | Containerized Substation (IEC Switchgear) |
| Rated Voltage | 33 kV / 35 kV |
| Rated Current | 630 A |
| Protection Class | IP65 |
| Enclosure Material | Aluminium-Zinc Coated Plate |
| Phase | Three Phase |
| Frequency | 50 / 60 Hz |
| Winding Material | Copper / Aluminium |
| Vector Group | Dyn11 / Yyn0 |
| Standard | IEC 60076 / IEC / GB |
| Certification | ISO9001 / ISO14001 / CE / CQC |
| Warranty | 2 Years |
| Packaging | Wooden Case |

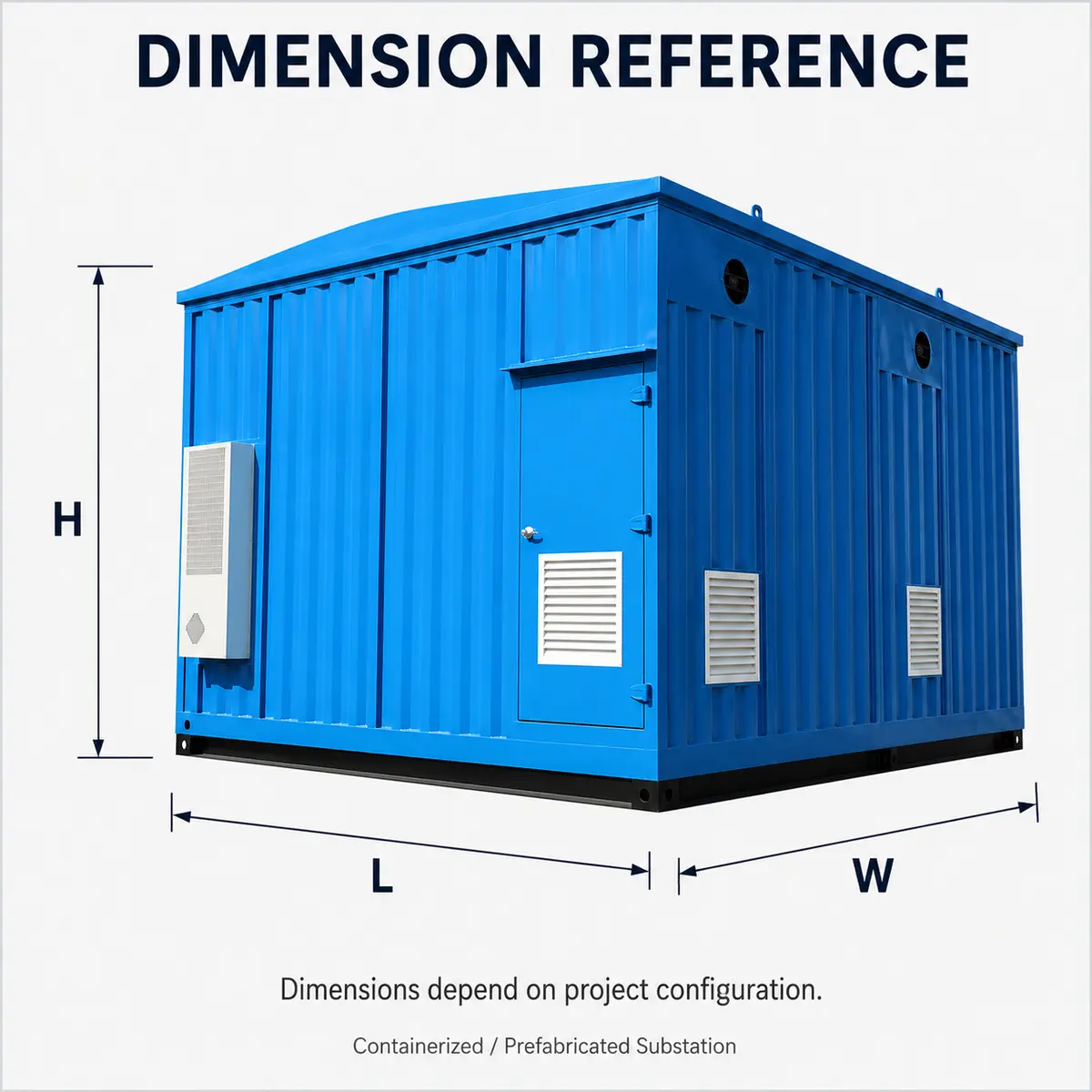

Specifications are based on the standard configuration. Final ratings, dimensions, materials and packaging are confirmed on the approved drawing and order confirmation.

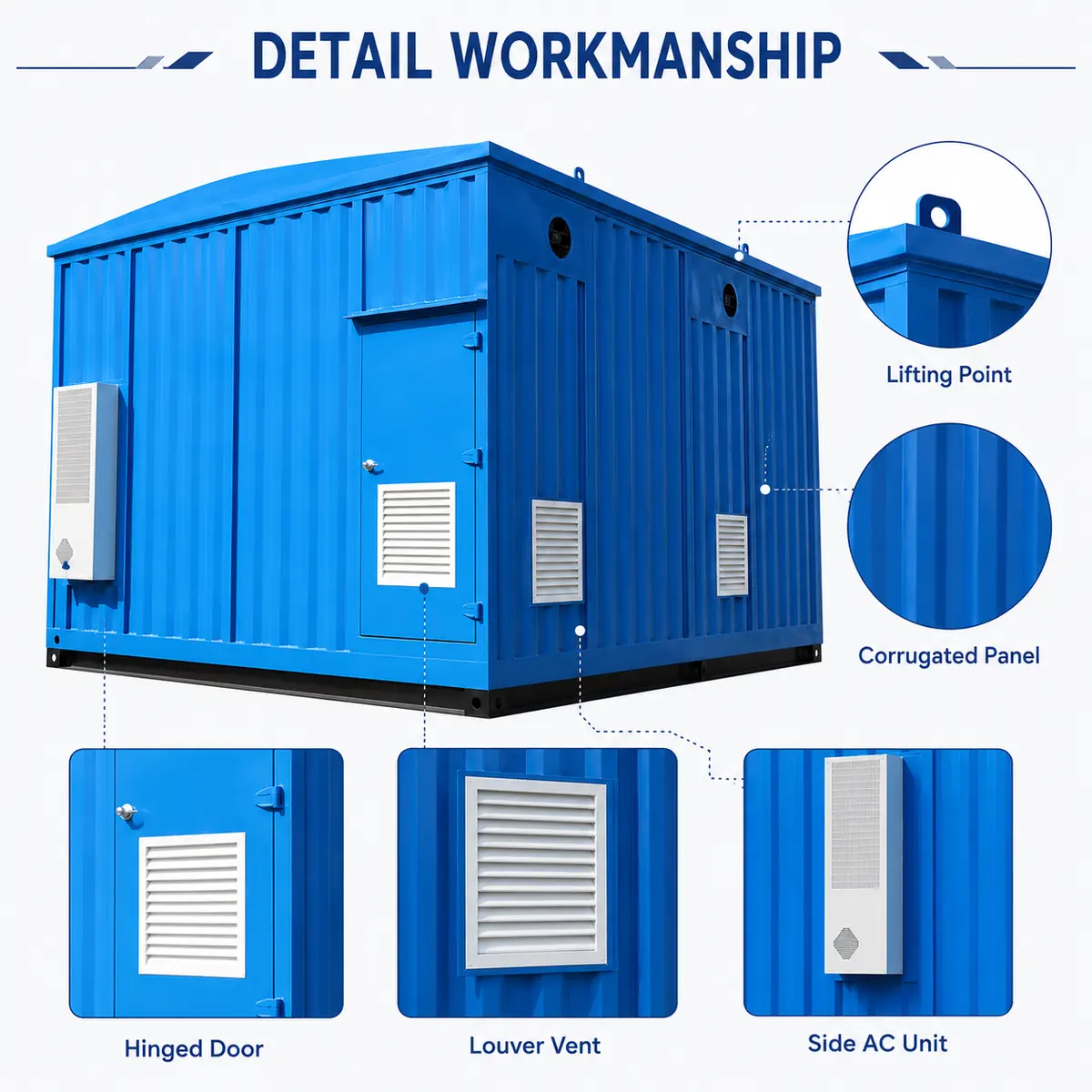

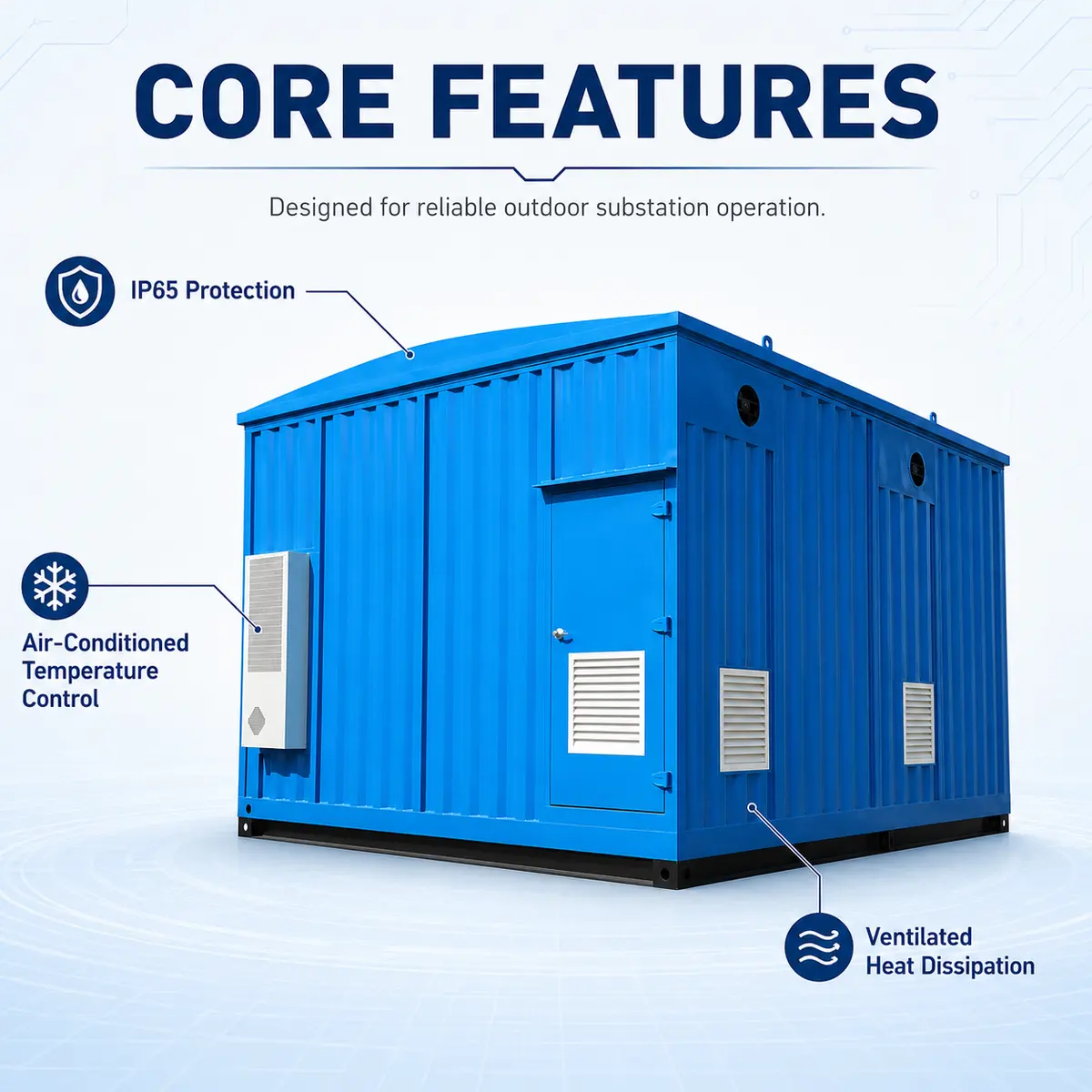

Features and construction

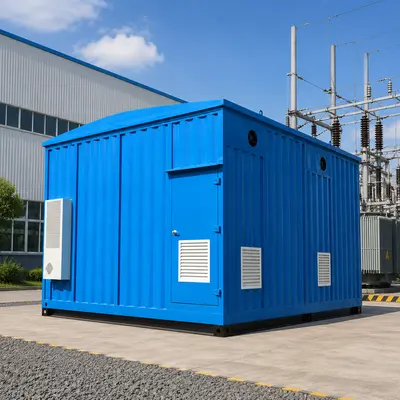

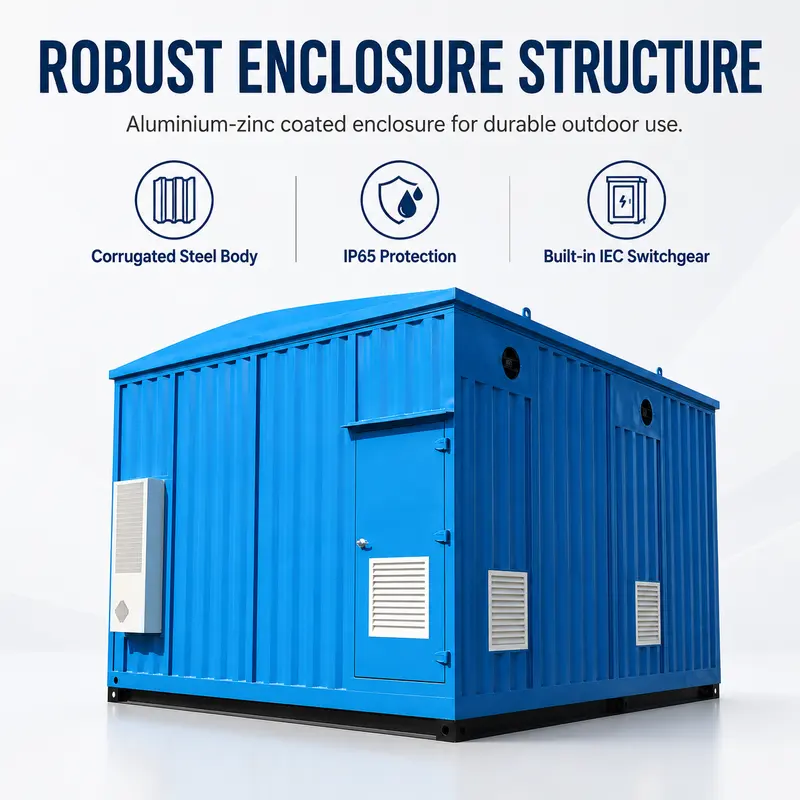

- Corrugated steel container body with arched roof for weather protection
- Integrated wall-mounted air-conditioning unit for internal temperature control
- Ventilation louvres and hinged access door for safe operation and airflow

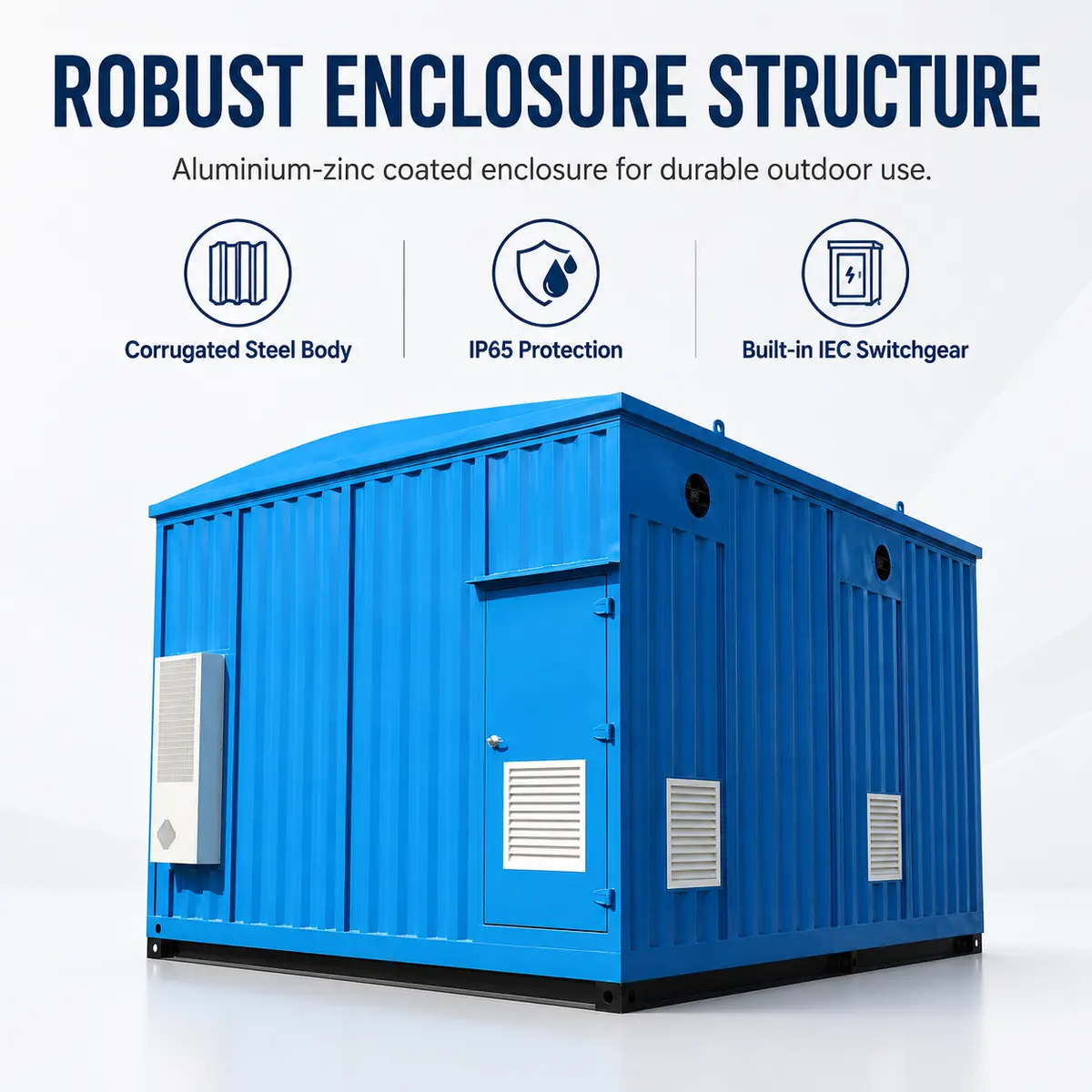

- IP65 aluminium-zinc coated enclosure on a rigid base frame with lifting lugs

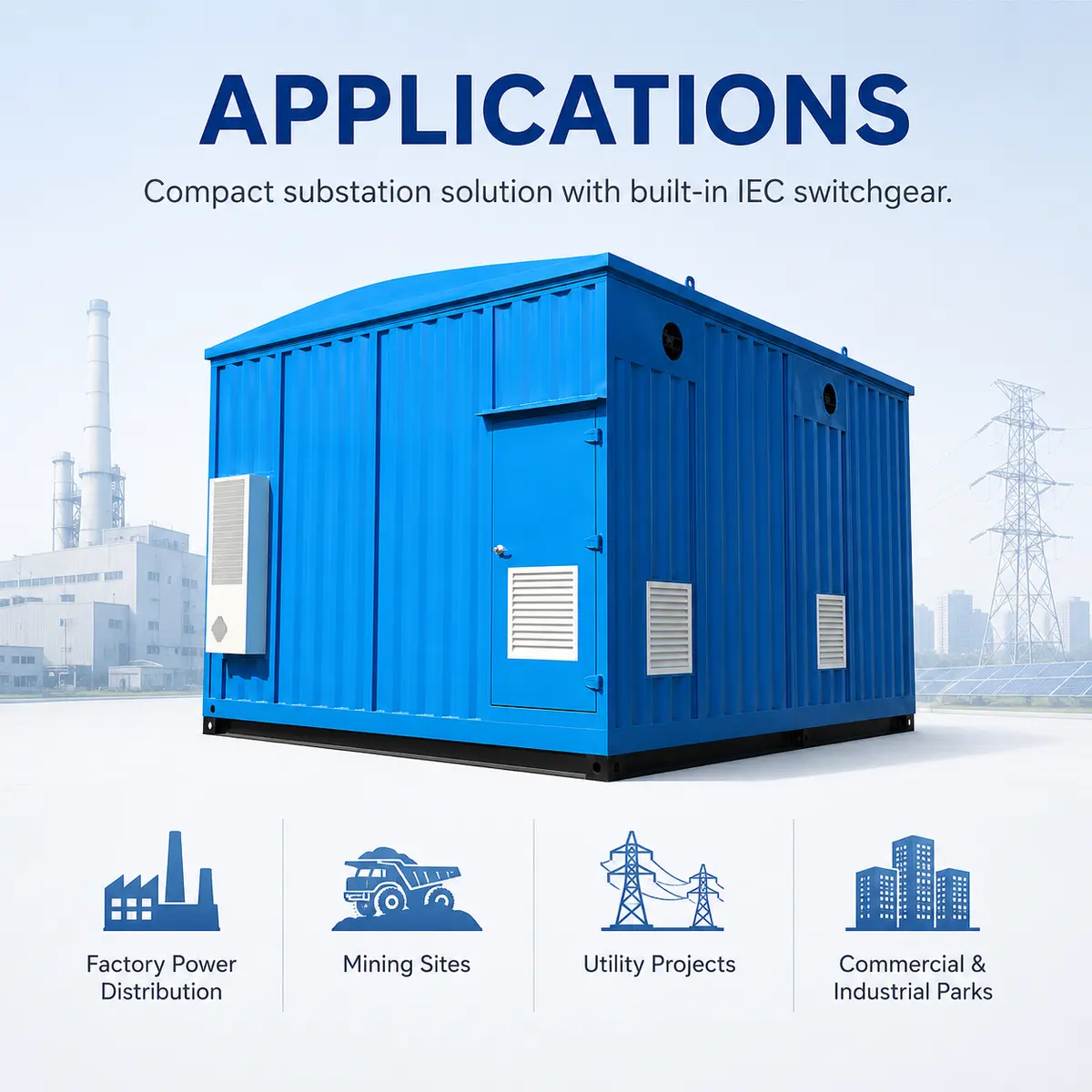

Typical applications
Electric power transmission and distribution, industrial parks, mining and infrastructure projects, and utility medium-voltage substations requiring a transportable, complete solution.

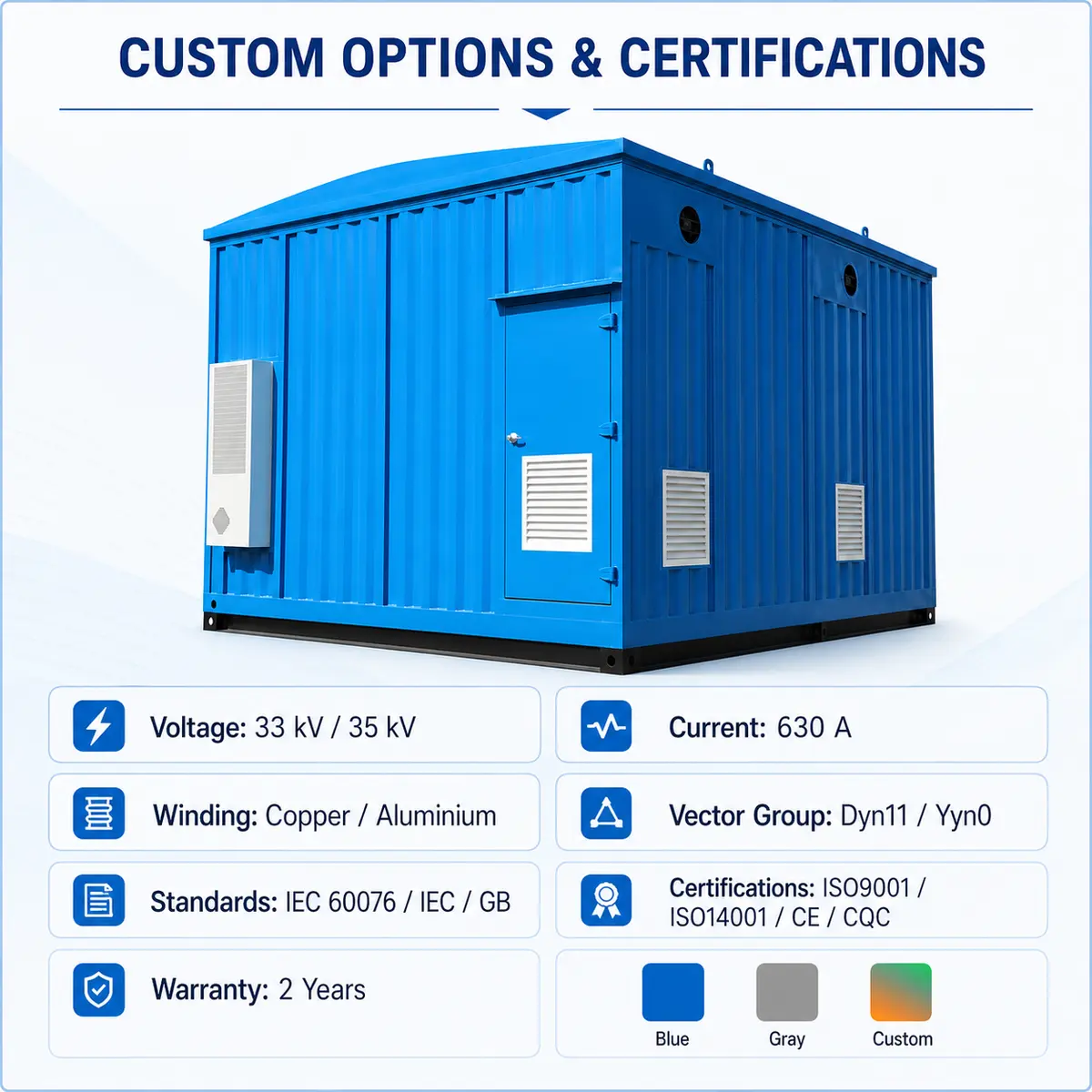

Customisation options
Enclosure colour, voltage class, switchgear configuration, capacity, and climate-control options available on request.
Ordering information
Built to order per confirmed specifications. Please provide voltage class, switchgear scheme, capacity and site requirements when enquiring.

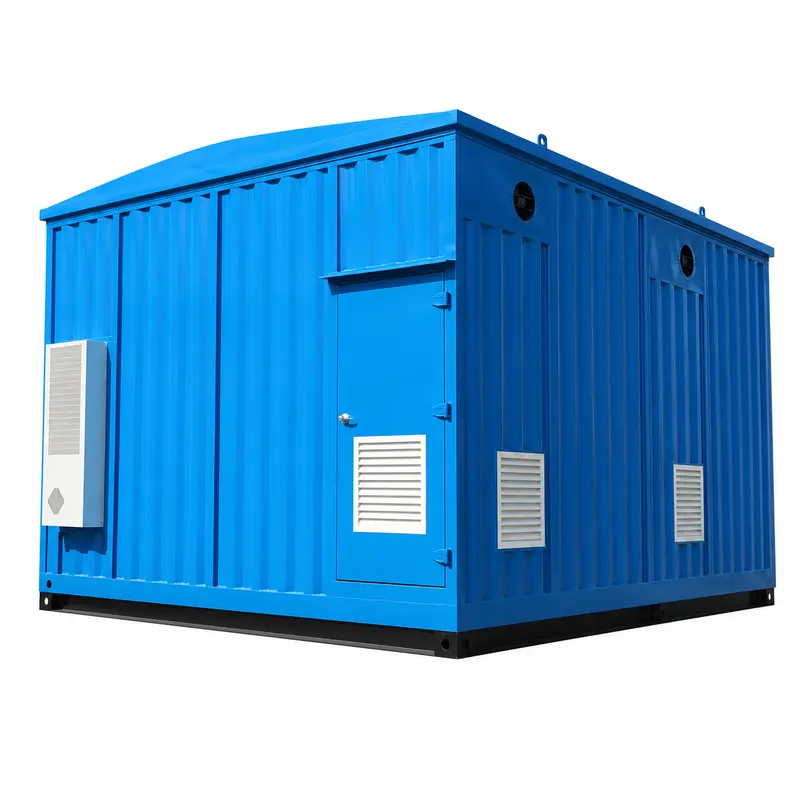

Product images are illustrative renders for marketing reference; final delivered product is built to order per confirmed specifications.
Standards and quality
Manufactured under an ISO 9001, ISO 14001 and ISO 45001 certified management system. Designs follow the IEC 60076 / IEC 62271 series as applicable, with ANSI/IEEE, GB and GOST variants available. Every unit passes routine testing before dispatch; type tests and customer or third-party witnessed factory acceptance tests can be arranged.
Frequently asked questions
What voltage ratio is available?
The standard unit is 33 kV / 35 kV input. Voltage ratio, tapping range and vector group can be adjusted to your network; 50 Hz and 60 Hz designs are available.
Which standards and certifications apply?
The product is designed to IEC 60076 / IEC / GB. MARS operates an ISO 9001 / 14001 / 45001 certified factory and holds CE (ECM), UDEM, EAC and CQC approvals; every unit is routine-tested before dispatch and type or witnessed tests can be arranged.
Can this product be customised?
Enclosure colour, voltage class, switchgear configuration, capacity, and climate-control options available on request.
What is the lead time and how is it shipped?
Typical lead time is 25–45 days after drawing approval for distribution equipment and 60–90 days for power transformers and containerised systems. Shipment is by sea from Shanghai on EXW, FOB, CIF or DAP terms with a full document pack.
Enquire about this product
Tell us the rating, voltage ratio, frequency, quantity and destination. A MARS engineer replies with a technical proposal and quotation within one working day.
