Technical specifications
| Parameter | Value |
|---|---|
| Product Type | Oil-Immersed Power Transformer |
| Rated Capacity | 1000kVA – 10MVA |
| Input Voltage | 11 kV / 33 kV |
| Output Voltage | 415 V |
| Frequency | 50 / 60 Hz |
| Phase | Three |
| Coil Number | Multi Winding |
| Winding Material | Copper / Aluminium |
| Vector Group | Dyn11 / Yyn0 / Yd11 / YNd11 / Dyn5 |
| Standard | IEC / GB |
| Certification | UL, CE, ISO9001, EAC, ISO14001, ISO45001 |
Specifications are based on the standard configuration. Final ratings, dimensions, materials and packaging are confirmed on the approved drawing and order confirmation.

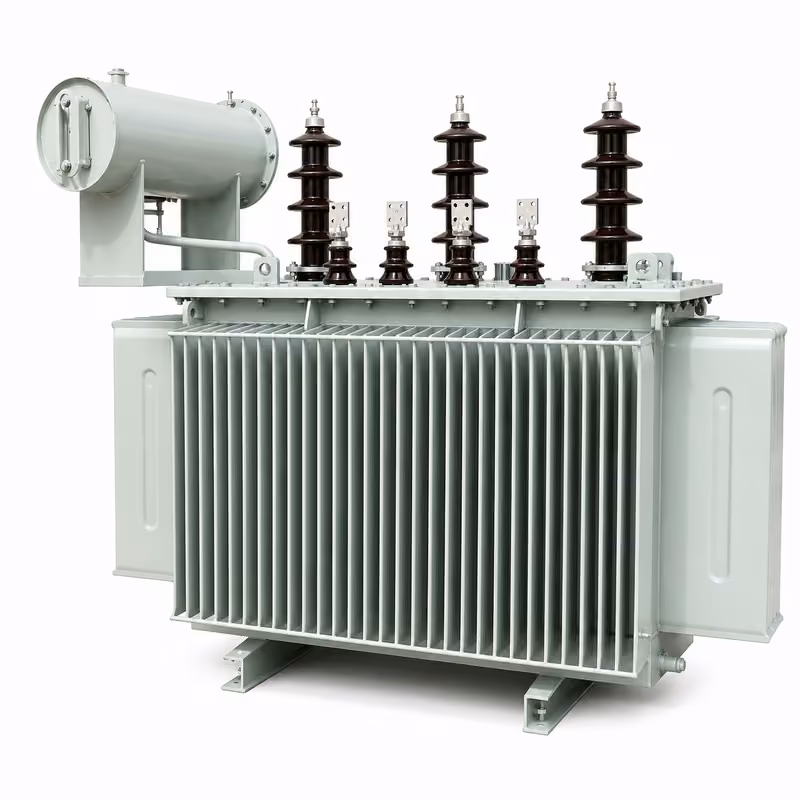

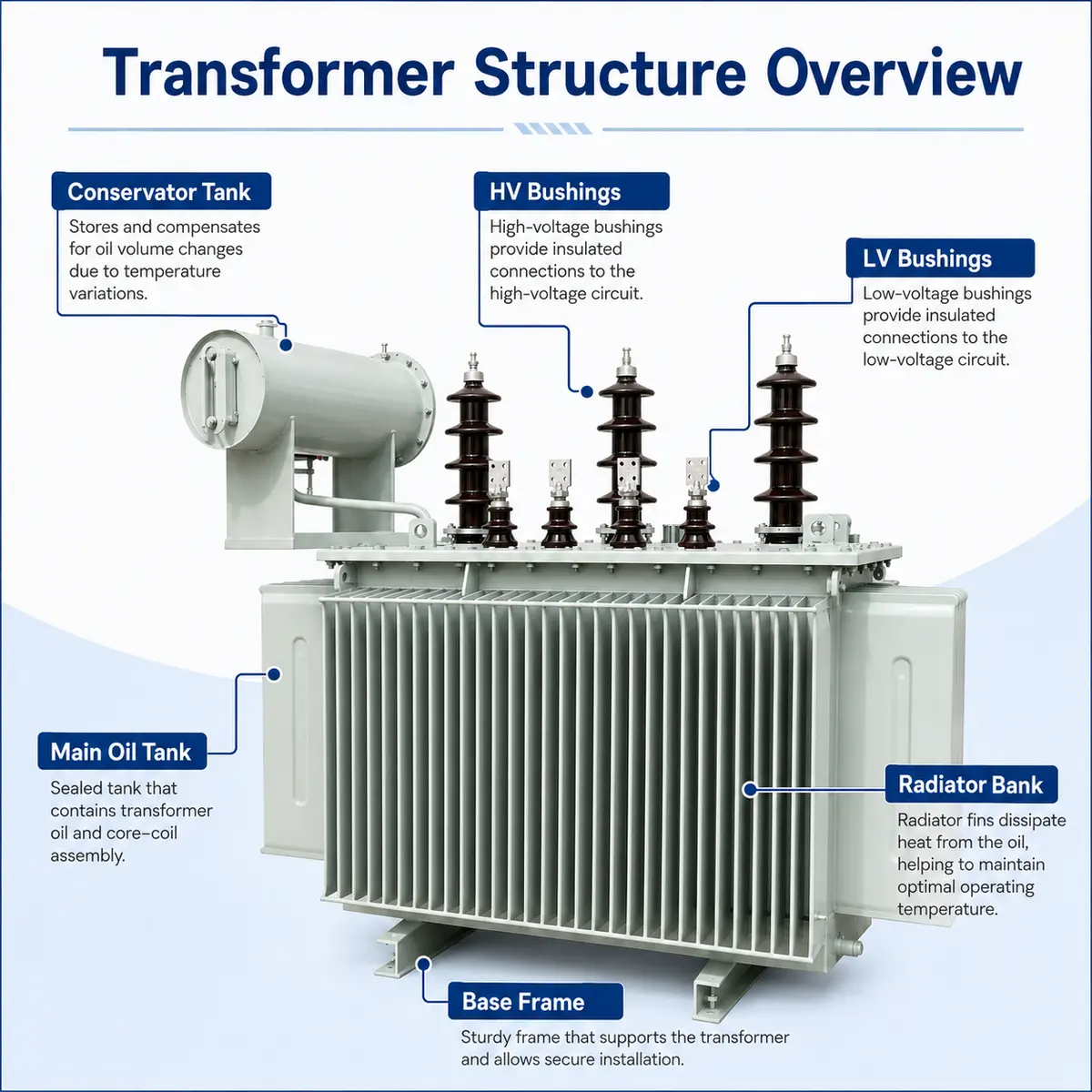

Features and construction

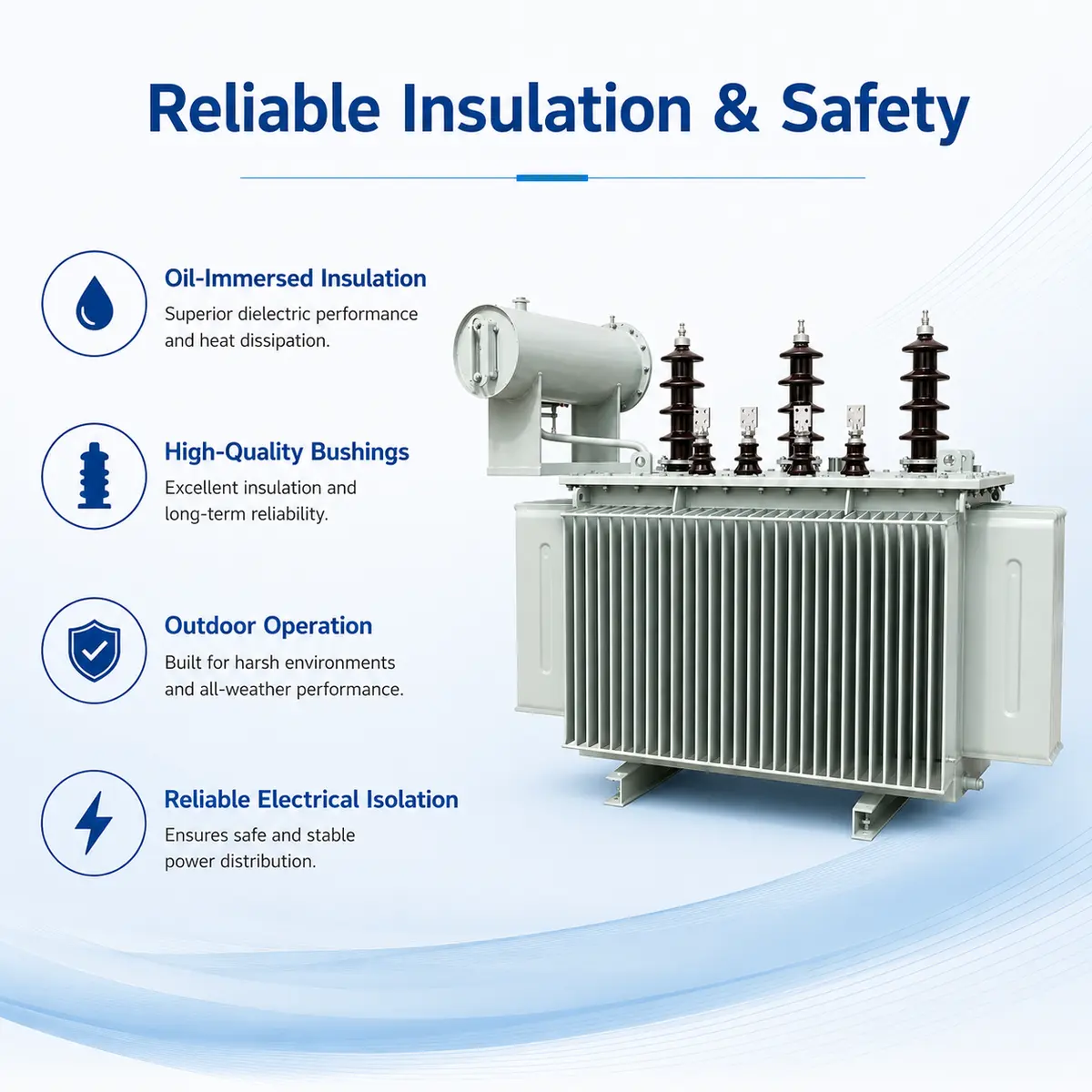

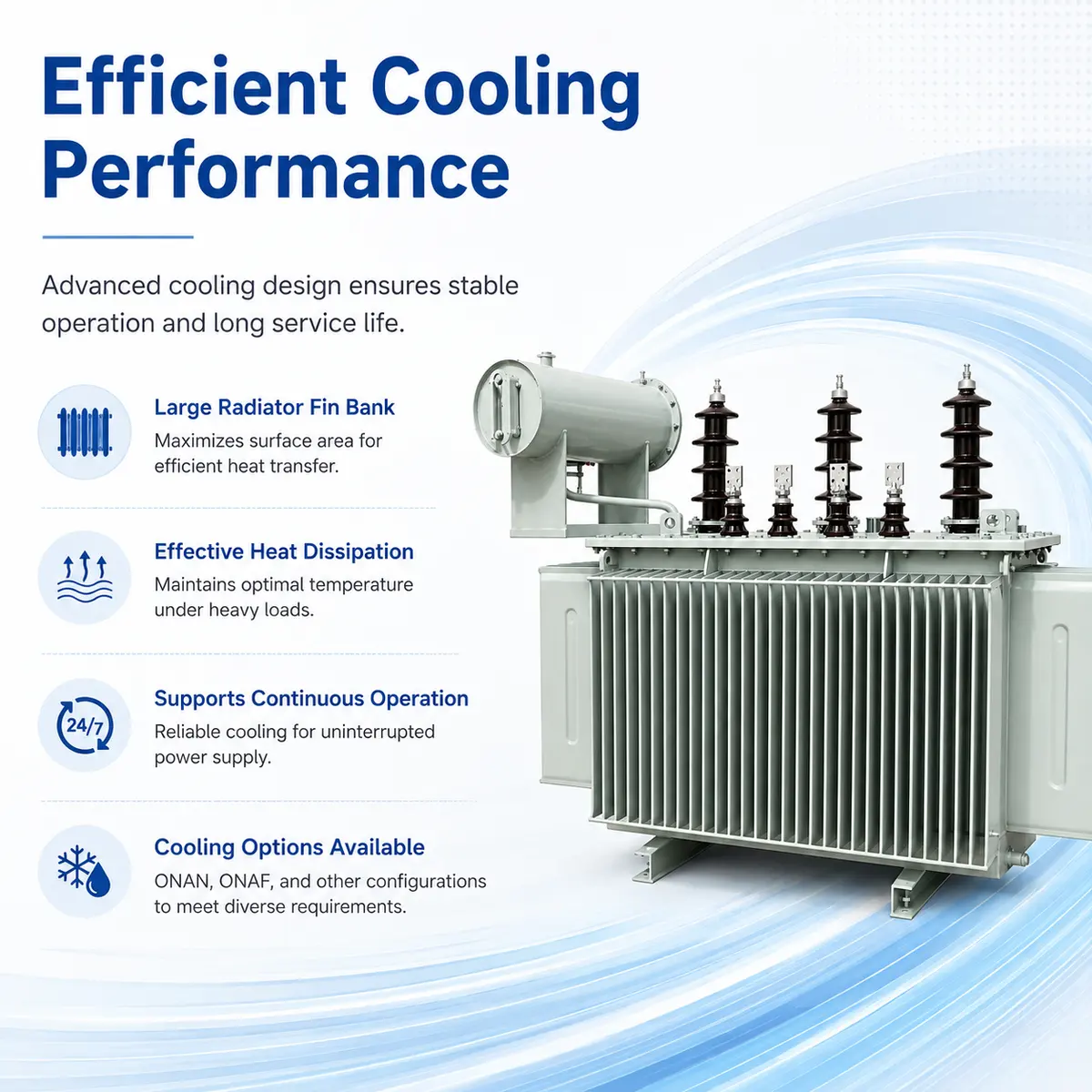

- Rectangular steel tank with corrugated fin radiators for heat dissipation
- Horizontal cylindrical conservator (oil expansion) tank
- HV porcelain bushings and LV terminals on the tank cover
- Steel channel base for stable installation on concrete pads
- Fully sealed construction minimizing oil oxidation
Typical applications

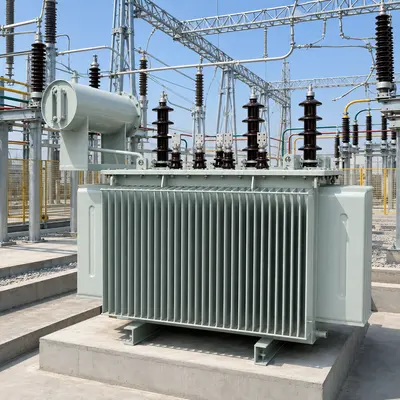

Suited to 11kV/33kV utility substations, industrial power supply, distribution networks, and infrastructure projects requiring reliable medium-voltage transformation.
Customisation options
Capacity, voltage ratio, vector group, cooling configuration, and certification can be tailored to project requirements. Winding material (copper or aluminium) available on request.
Ordering information
Please confirm rated capacity, primary/secondary voltage, frequency, vector group, and applicable standard when ordering.
Specifications are based on the supplied product data. Final dimensions, materials, colors, and packaging are subject to the confirmed sample and order confirmation.
Standards and quality
Manufactured under an ISO 9001, ISO 14001 and ISO 45001 certified management system. Designs follow the IEC 60076 / IEC 62271 series as applicable, with ANSI/IEEE, GB and GOST variants available. Every unit passes routine testing before dispatch; type tests and customer or third-party witnessed factory acceptance tests can be arranged.
Frequently asked questions
What is the rated capacity of the 11/33kV Three-Phase Oil-Immersed Power Transformer (1000kVA–10MVA, Copper Winding)?
The standard configuration is rated 1000kVA – 10MVA at 50 / 60 Hz. Other ratings in the same family can be built to order — tell us the load and we will confirm the nearest standard rating.
What voltage ratio is available?
The standard unit is 11 kV / 33 kV input to 415 V output. Voltage ratio, tapping range and vector group can be adjusted to your network; 50 Hz and 60 Hz designs are available.
Which standards and certifications apply?
The product is designed to IEC / GB. MARS operates an ISO 9001 / 14001 / 45001 certified factory and holds CE (ECM), UDEM, EAC and CQC approvals; every unit is routine-tested before dispatch and type or witnessed tests can be arranged.
Can this product be customised?
Capacity, voltage ratio, vector group, cooling configuration, and certification can be tailored to project requirements. Winding material (copper or aluminium) available on request.
What is the lead time and how is it shipped?
Typical lead time is 25–45 days after drawing approval for distribution equipment and 60–90 days for power transformers and containerised systems. Shipment is by sea from Shanghai on EXW, FOB, CIF or DAP terms with a full document pack.
Enquire about this product
Tell us the rating, voltage ratio, frequency, quantity and destination. A MARS engineer replies with a technical proposal and quotation within one working day.
